Applications
For indoor and outdoor installations, also in wet locations; for fixed installation on masonry or on metallic structures; direct laying in earth is permitted.These cables are suitable for general applications in construction works subject to fire reaction requirements; for bundle installations with high risk of fire due to the high crowd density or due to the long time for displacement or to the big damage to animals or things, according to the standard CEI 64-8/7 having fire reaction class Cca-s1b,d1,a1.
Their use is advised also in places at risk of explosion or fire, which include thermal power stations and power stations, chemical plants and the petrochemical ones, steelworks, fuel installations, etc..
Rated voltage: 0,6/1 kV
Min. installation temperature: 0°C
Min. working temperature: -15°C
Max. working temperature: 90°C
Max. short-circuit temperature: 250°C

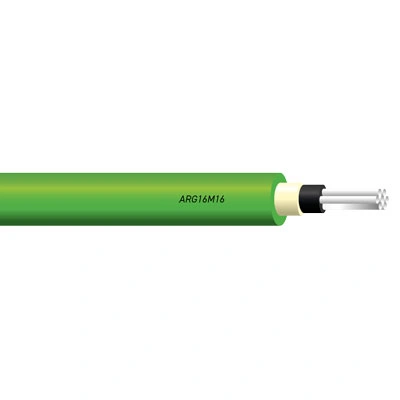

Conductor: Stranded, aluminium wire, class 2
Insulation: Hard ethylene propylene rubber (HEPR) compound, of type G16
Filler: Thermoplastic filler with reduced emission of corrosive gases
Sheath: M16 quality thermoplastic compound.
| Conductor cross-sections | MAX. Ø conductor wires | Outer diameter | Approx. cable weight |
| mm | MAX mm | g/m | |
| 1 core x mm2 | |||
| 10 | 5 | 12,0 | 95 |
| 16 | 6 | 12.5 | 162 |
| 25 | 6 | 13.7 | 216 |
| 35 | 6 | 15,0 | 257 |
| 50 | 6 | 16,2 | 310 |
| 70 | 12 | 18,1 | 394 |
| 95 | 15 | 20,1 | 493 |
| 120 | 15 | 22,0 | 593 |
| 150 | 15 | 24.3 | 705 |
| 185 | 30 | 26.7 | 864 |
| 240 | 30 | 29.6 | 1074 |
