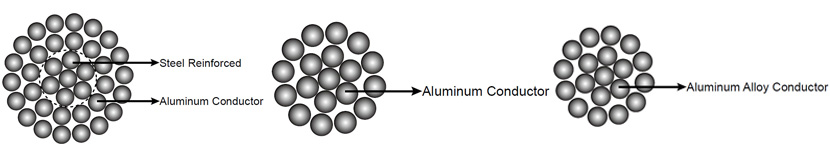

1. AAC conductor Cable is widely used in the overhead power transimission lines and distribution system,and it is one of the main products to form electrified wire network.

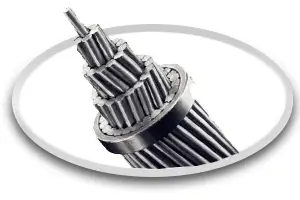

2. AAAC conductor used as bare overhead conductor for primary and secondary distribution. Designed utilizing a high-strength aluminum-alloy to achieve a high strength-to-weight ratio; affords good sag characteristics. Aluminum-alloy 6201-T81 gives AAAC higher resistance to corrosion than ACSR.

3. ACSR conductor used as bare overhead transmission conductor and as primary and secondary distribution conductor and messenger support. ACSR offers optimal strength for line design. Variable steel core stranding enables desired strength to be achieved without sacrificing ampacity.

ACSR Conductor-Aluminum Conductor Steel Reinfored

AAC Conductor Parameter List:

AAC Conductor Parameter-ASTM B-231B 231M

AAC conductor-ASTM B 231/B 231M
Code	Nominal Area		Stranding	Overall Diameter	Weight	Rated Strength	Electrical Resistance	Current Rating*
Code	AWG&MCM	mm^2	No.xmm	mm	kg/km	KN	Ω/Km	A
Peachbell	6	13.3	7/1.56	4.68	36.6	2.53	2.1477	75
Rose	4	21.1	7/1.96	5.88	58.2	3.91	1.3606	99
Iris	2	33.6	7/2.47	7.41	92.6	5.99	0.8567	132
Pansy	1	42.4	7/2.78	8.34	116.6	7.3	0.6763	153
Poppy	1/0.0	53.5	7/3.12	9.36	147.2	8.84	0.5369	176
Aster	2/0.0	67.4	7/3.50	10.5	185.7	11.1	0.4267	203
Phlox	3/0.0	85	7/3.93	11.79	233.9	13.5	0.3384	234
Oxlip	4/0.0	107.2	7/4.42	13.26	295.2	17	0.2675	270
Valerian	250	126.7	19/2.91	14.55	348.6	20.7	0.2274	299
Sneezewort	250	126.7	7/4.80	14.4	348.8	20.1	0.2269	299
Laurel	266.8	135.2	19/3.01	15.05	372.2	22.1	0.2125	312
Daisy	266.8	135.2	7/4.96	14.88	372.3	21.4	0.2125	311
Peony	300	152	19/3.19	15.95	418.3	24.3	0.1892	335
Tulip	336.4	170.5	19/3.38	16.9	469.5	27.3	0.1686	359
Daffodil	350	177.3	19/3.45	17.25	487.9	28.4	0.1618	369
Canna	397.5	201.4	19/3.67	18.35	554.9	31.6	0.143	397
Goldentuft	450	228	19/3.91	19.55	627.6	35	0.126	429
Syringa	477	241.7	37/2.88	20.16	664.8	38.6	0.1192	444
Cosmos	477	241.7	19/4.02	20.1	664.8	37	0.1192	444
Hyacinth	500	253.3	37/2.95	20.65	696.8	40.5	0.1136	458
Zinnia	500	253.3	19/4.12	20.6	697.1	38.9	0.1134	458
Dahlia	556.5	282	19/4.35	21.75	775.8	43.3	0.1018	489
Mistletoe	556.5	282	37/3.12	21.84	775.7	44.3	0.1016	490
Meadowsweet	600	304	37/3.23	22.61	836.3	47.5	0.0948	511
Orchid	636	322.3	37/3.33	23.31	886.9	50.4	0.0892	530
Heuchera	650	329.4	37/3.37	23.59	907.4	51.7	0.0871	538
Flag	700	354.7	61/2.72	24.48	975.8	57.1	0.0811	561
Varbena	700	354.7	37/3.49	24.43	975.7	55.4	0.0812	561
Nasturtium	715.5	362.6	61/2.75	24.75	998.5	58.4	0.0793	569
Violet	715.5	362.6	37/3.53	24.71	998.5	56.7	0.0794	568
Cattail	750	380	61/2.82	25.38	1046	60.3	0.0754	587
Petunia	750	380	37/3.62	25.34	1046	58.6	0.0755	586
Lilac	795	402.8	61/2.90	26.1	1110	63.8	0.0713	607
Arbutus	795	402.8	37/3.72	26.04	1109	61.8	0.0715	605
Snapdragon	900	456	61/3.09	27.81	1256	70.8	0.0628	654
Cockscomb	900	456	37/3.96	27.72	1256	68.4	0.0631	652
Goldenrod	954	483.4	61/3.18	28.62	1331	75	0.0593	677
Magnolia	954	483.4	37/4.08	28.56	1331	72.6	0.0594	676
Camellia	1000	506.7	61/3.25	29.25	1394	78.3	0.0568	695
Hawkweed	1000	506.7	37/4.18	29.26	1395	76.2	0.0566	696
Larkspur	1033.5	523.7	61/3.31	29.79	1442	81.3	0.0547	710
Bluebell	1033.5	523.7	37/4.25	29.75	1441	78.8	0.0547	710
Marigold	1113	564	61/3.43	30.87	1553	87.3	0.051	740
Hawthorn	1192.5	604.2	61/3.55	31.95	1662	93.5	0.0476	771
Narsissus	1272	644.5	61/3.67	33.03	1774	98.1	0.0445	802
Columbine	1351	694.8	61/3.78	34.02	1884	104	0.042	829
Carnation	1431	725.1	61/3.89	35.01	1997	108	0.0396	858
Gladiolus	1510.5	765.4	61/4.00	36	2108	114	0.0375	885
Coreopsis	1590	805.7	61/4.10	36.9	2216	120	0.0357	911
Jassamine	1750	886.7	61/4.30	38.7	2442	132	0.0324	962
Cowslip*	2000	1013	91/3.77	41.47	2787	153	0.0286	1032
Sagebrush*	2250	1140	91/3.99	43.89	3166	167	0.0255	1099
Lupine*	2500	1267	91/4.21	46.31	3519	186	0.0229	1163
Bitterrot*	2750	1393	91/4.42	48.62	3872	205	0.0208	1223
Trillium*	3000	1520	127/3.90	50.7	4226	223	0.0193	1271
Bluebonnet*	3500	1773	127/4.22	54.86	4977	261	0.0165	137

Get a free quote by e-mail: sales@huadongcablegroup.com

AAC Conductor Parameter-BS 215 Part 1 Standard

AAC Conductor-BS 215 Part 1
Code	Nominal Area		Stranding	Overall Diameter	Weight	Rated Strength	Electrical Resistance	Current Rating*
Code	Nominal	Teorical	Stranding	Overall Diameter	Weight	Rated Strength	Electrical Resistance	Current Rating*
	mm^2	mm^2	No.xmm	mm	kg/km	KN	Ω/Km	A
Midge	22	23.33	7/2.06	6.18	64	3.99	1.227	106
Gnat	25	26.8	7/2.21	6.6	73.8	4.83	1.0643	122
Mosquito	35	37	7/2.59	7.8	102.1	6.27	0.7749	141
Ladybird	40	42.8	7/2.79	8.4	117.9	7.28	0.6678	157
Ant	50	52.83	7/3.1	9.3	145	8.28	0.5419	175
Fly	60	63.55	7/3.4	10.2	174	9.9	0.4505	196
Wasp	100	106	7/4.39	13.17	290	16	0.2702	268
Hornet	150	157.6	19 / 3.25	16.25	434	25.7	0.1825	342
Charfer	200	213.2	19 / 3.78	18.9	587	35.4	0.1349	412
Cockroach	250	265.7	19/4.22	21.1	731	40.4	0.1083	471
Butterfly	300	322.7	19/4.65	23.25	888	48.75	0.08916	530
Centipede	400	415.2	37/3.78	26.46	1145	63.1	0.06944	616
Maybug	475	486,1	37/4,09	28,6	1342	0.05571	0,05900	740
Skorpion	500	529,8	37/4,27	29,9	1460	0.04916	0,05400	887
Cicada	600	628,3	37/4,65	32,6	1733	0.03423	0,04500	1056

Get a free quote by e-mail: sales@huadongcablegroup.com

AAC Conductor Parameter-BS EN 50182 Strandard

AAC conductor-BS EN 50182
Code	Nominal Area		Stranding	Overall Diameter	Weight	Rated Strength	Electrical Resistance	Current Rating*
Code	Nominal	Teorical	Stranding	Overall Diameter	Weight	Rated Strength	Electrical Resistance	Current Rating*
	mm^2	mm^2	No.xmm	mm	kg/km	KN	Ω/Km	A
Gnat	25	26.9	7/2.21	6.63	73	4.83	1.0643	115
Mosquito	35	36.9	7/2.59	7.77	101	6.27	0.7749	140
Ladybird	40	42.8	7/2.79	8.37	117	7.28	0.6678	154
Bluebottle	70	73.6	7/3.66	10.98	201	11.78	0.388	215
Earwig	75	78.6	7/3.78	11.34	215	12.57	0.3638	223
Grasshopper	80	84.1	7/3.91	11.73	230	13.45	0.34	233
Clegg	90	95.6	7/4.17	12.51	261	15.3	0.2989	252
Beetle	100	106.4	19/2.67	13.35	292	18.08	0.2701	269
Bee	120	132	7/4.90	14.7	361	21.12	0.2165	307
Caterpillar	180	185.9	19/3.53	17.65	511	29.75	0.1546	379
Spider	220	237.6	19/3.99	19.95	653	38.01	0.121	440
Moth	350	373.1	19/5.00	25	1025	59.69	0.077	579
Drone	350	372.4	37/3.58	25.06	1027	59.59	0.0774	577
Maybug	450	486.1	37/4.09	28.63	1341	77.78	0.0593	677
Scorpion	500	529.8	37/4.27	29.89	1461	84.77	0.0544	713
Cicada	600	628.3	37/4.65	32.55	1733	100.54	0.0459	788

Get a free quote by e-mail: sales@huadongcablegroup.com

AAC Conductor Paramter-IEC 61089 Standard

AAC Conductor-IEC 61089
Code	Nominal Area	Stranding	Overall Diameter	Weight	Rated Strength	Electrical Resistance	Current Rating*
Code	mm^2	No.xmm	mm	kg/km	KN	Ω/Km	A
10	10	7/1.35	4.05	27.4	1.95	2.8633	62
16	16	7/1.71	5.13	43.8	3.04	1.7896	84
25	25	7/2.13	6.39	68.4	4.5	1.1453	110
40	40	7/2.70	8.1	109.4	6.8	0.7158	147
63	63	7/3.39	10.17	172.3	10.39	0.4545	195
100	100	19/2.59	12.95	274.8	17	0.2877	259
125	125	19/2.89	14.45	343.6	21.25	0.2302	297
160	160	19/3.27	16.35	439.8	26.4	0.1798	345
200	200	19/3.66	18.3	549.7	32	0.1439	396
250	250	19/4.09	20.45	687.1	40	0.1151	454
315	315	37/3.29	23.03	867.9	51.97	0.0916	522
400	400	37/3.71	25.97	1102	64	0.0721	603
450	450	37/3.94	27.58	1239.8	72	0.0641	647
500	500	37/4.15	29.05	1377.6	80	0.0577	688
560	560	37/4.39	30.73	1542.9	89.6	0.0515	736
630	630	61/3.63	32.67	1738.3	100.8	0.0458	789
710	710	61/3.85	34.65	1959.1	113.6	0.0407	845
800	800	61/4.09	36.81	2207.4	128	0.0361	905
900	900	61/4.33	38.97	2483.3	144	0.0321	967
1000	1000	61/4.57	41.13	2759.2	160	0.0289	1026
1120*	1120	91/3.96	43.56	3093.5	179.2	0.0258	1091
1250*	1250	91/4.18	45.98	3452.6	200	0.0231	1157
1400*	1400	91/4.43	48.73	3866.9	224	0.0207	1226
1500*	1500	91/4.58	50.38	4143.1	240	0.0193	1270

Get a free quote by e-mail: sales@huadongcablegroup.com

AAC Coductor Parameter- German- DIN 48201

AAC Coductor Technical characteristics / German Sizes - DIN 48201
Area		Stranding and wire Diameter	Overall Diameter mm	Linear Mass kg/km	Calculated Breaking Load daN	Maximum D.C. Resistance at 20℃ Ω/km	Current Rating A
Nominal cross-section mm2	Actual cross-section mm2	Stranding and wire Diameter	Overall Diameter mm	Linear Mass kg/km	Calculated Breaking Load daN	Maximum D.C. Resistance at 20℃ Ω/km	Current Rating A
16	16.1616	7/1.70	5.55	44	290	2.22222	110
25	24.2424	7/2.10	6.66	67	425	1.11111	145
35	34.3434	7/2.50	8.88	94	585	1.11111	180
50	49.4949	7/3.00	9.99	135	810	1.11111	225
50	48.4848	19/1.80	9.99	133	860	1.11111	225
70	66.6666	19/2.10	10.1010	181	1150	0.00000	270
95	93.9393	19/2.50	12.1212	256	1595	0.00000	340
120	117.117117	19/2.80	14.1414	322	1910	0.00000	390
150	147.147147	37/2.25	15.1515	406	2570	0.00000	455
185	182.182182	37/2.50	18.1818	501	3105	0.00000	520
240	243.243243	61/2.25	20.2020	670	4015	0.00000	625
300	299.299299	61/2.50	22.2222	827	4850	0.00000	710
400	400.400400	61/2.89	26.2626	1105	6190	0.00000	855
500	500.500500	61/3.23	29.2929	1381	7600	0.00000	990
625	626.626626	91/2.96	33.3333	1733	9690	0.00000	1140
800	802.802802	91/3.35	37.3737	2219	12055	0.00000	1340
1000	1000.10001000	91/3.74	41.4141	2766	14845	0.00000	1540

Get a free quote by e-mail: sales@huadongcablegroup.com

AAC Conductor Parameter- Canadian- CSA C49 Standard

AAC Conductor Technical characteristics Canadian Sizes CSA C49-1965
Code Name		Stranding and wire diameter	Approximate Overall Diameter	Linear Mass	Nominal breaking Load	Maximum Resistance at 20℃	Current Rating
Code Name	mm2	mm	mm	Kg/km	KN	Ω/km	A
Rose	21.2121	7/1.961	6.66	58	4.1	1.1111	104
Lily	27.2727	7/2.202	7.77	73	5	1.1111	124
Iris	34.3434	7/2.474	7.77	92	6.2	1.1111	136
Pansy	42.4242	7/2.776	8.88	116	7.6	1.1111	157
Poppy	53.5353	7/3.119	9.99	146	9.2	1.1111	180
Aster	67.6767	7/3.503	11.1111	184	11.6	0.0000	207
Phlox	85.8585	7/3.902	12.1212	232	14.1	0.0000	237
Oxlip	107.107107	7/4.417	13.1313	293	17.7	0.0000	273
Daisy	135.135135	7/4960	15.1515	369	22.4	0.0000	313
Valerian	127.127127	19/2.913	15.1515	348	22.3	0.0000	305
Laurel	135.135135	19/3.010	15.1515	372	23.8	0.0000	317
Peony	152.152152	19/3.193	16.1616	417	26.2	0.0000	340
Tulip	170.170170	19/3.381	17.1717	467	29.4	0.0000	364
Daffodil	177.177177	19/3.447	17.1717	488	30.6	0.0000	373
Canna	201.201201	19/3.673	18.1818	554	34	0.0000	401
	203.203203	19/3.686	18.1818	558	34.2	0.0000	402
Goldentuft	228.228228	19/3.909	20.2020	626	37.7	0.0000	432
Cosmos	242.242242	19/4.023	20.2020	664	40	0.0000	447
Zinnia	253.253253	19/4.120	21.2121	695	41.9	0.0000	459
Dahlia	282.282282	19/4.346	22.2222	774	46.7	0.0000	489
	279.279279	37/3.096	22.2222	768	48	0.0000	485
Meadowsweet	304.304304	37/3.233	23.2323	838	52.4	0.0000	513
Orchid	322.322322	37/3.330	23.2323	888	55.6	0.0000	531
Heuchera	329.329329	37/3.366	24.2424	908	56.8	0.0000	538
Varbena	355.355355	37/3.493	24.2424	978	61.1	0.0000	562
Violet	363.363363	37/3.533	25.2525	1000	62.5	0.0000	570
Patunia	380.380380	37/3.617	25.2525	1048	64.2	0.0000	585
Arbutus	403.403403	37/3.724	26.2626	1112	68.1	0.0000	605
	405.405405	37/3.734	26.2626	1118	68.5	0.0000	608
Anemone	443.443443	37/3.904	27.2727	1222	73.3	0.0000	641
Cockscomb	456.456456	37/3.962	28.2828	1257	75.4	0.0000	657
Magnolia	483.483483	37/4.079	29.2929	1333	80	0.0000	675
Hawkweed	507.507507	37/4.176	29.2929	1396	83.8	0.0000	693
Bluebell	524.524524	37/4.244	30.3030	1445	86.6	0.0000	706
	557.557557	61/3.411	31.3131	1539	96.1	0.0000	733
Marigold	564.564564	61/3.432	31.3131	1559	97.2	0.0000	738
Hawthorn	604.604604	61/3.551	32.3232	1670	104.1	0.0000	767
	608.608608	61/3.564	32.3232	1679	102.7	0.0000	771
Narcissus	645.645645	61/3.668	33.3333	1781	108.8	0.0000	797
	659.659659	61/3.708	33.3333	1818	112.2	0.0000	807
Columbine	685.685685	61/3.78	34.3434	1893	115.6	0.0000	825
	709.709709	61/3.848	35.3535	1958	117.4	0.0000	842
Carnation	725.725725	61/3.891	35.3535	2004	119.9	0.0000	854
	760.760760	61/3.983	36.3636	2098	125.7	0.0000	877
Gladiolus	765.765765	61/3.998	36.3636	2116	126.5	0.0000	881
Corepsis	806.806806	61/4.096	37.3737	2226	133.2	0.0000	907
	811.811811	61/4.115	37.3737	2238	134.1	0.0000	910
	861.861861	61/4.239	38.3838	2378	142.6	0.0000	842
	912.912912	61/3.571	39.3939	2521	153.9	0.0000	975

Get a free quote by e-mail: sales@huadongcablegroup.com

AAC Conductor Parameter-China-GB1179 Standard

AAC Conductor-Technical characteristics -China standard-GB1179
Nominal Area	Stranding Number Diameter	Calculated Area	Overall Diameter	D,C. Resistance	Calculated Breaking	Calculated Weight	Continuous Carrying Capacity(A)
mm2	No. mm	mm2	mm	Ω/km	Load N	kg/km	70 ℃	80 ℃	90 ℃
16	7/1.70	16.1616	5.55	2.22222	2840	44.44	84	100	112
25	7/2.15	25.2525	6.66	1.11111	4355	70.70	112	133	151
35	7/2.50	34.3434	8.88	1.11111	5760	94.94	135	161	183
50	7/3.00	49.4949	9.99	1.11111	7930	136.136	168	202	230
70	7/3.60	71.7171	11.1111	0.00000	10950	195.195	210	253	289
95	7/4.16	95.9595	12.1212	0.00000	14450	260.260	250	304	347
120	19/2.85	121.121121	14.1414	0.00000	19420	334.334	289	353	405
150	19/3.15	148.148148	16.1616	0.00000	23310	407.407	327	400	460
185	19/3.50	183.183183	18.1818	0.00000	28440	503.503	371	456	526
210	19/3.75	209. 85	19.1919	0.00000	32260	577.577	403	497	574
240	19/4.00	239.239239	20.2020	0.00000	36260	657.657	435	538	522
300	37/3.20	298.298298	22.2222	0.00000	46850	820.820	496	617	715
400	37/3.70	398.398398	26.2626	0.00000	61150	1097.1097	588	738	859
500	37/4.16	503.503503	29.2929	0.00000	76370	1387.1387	674	852	995
630	61/3.63	631.631631	33.3333	0.00000	91940	1744.1744	768	977	1145
800	61/4.10	805.805805	37.3737	0.00000	115900	2225.2225	880	1129	1328

Get a free quote by e-mail: sales@huadongcablegroup.com

AAC Conductor Parameter ASNZS 1531 Standard

Standard sizes to AS/NZS 1531
Conductor code name	Stranding and wire diameter	Nominal overall diameter	Cross- sectional area	Approximate mass	Breaking load	Modulus of elasticity	Coefficient of linear expansion	DC resist. at 20°C	AC resist. at 50Hz
Conductor code name	no/mm	mm	mm2	kg/km	kN	GPa	x 10–6/°C	Ω/km	Ω/km
Leo	7/2.50	7.5	34.4	94.3	5.71	65	23	0.833	1.02
Leonids	7/2.75	8.25	41.6	113	6.72	65	23	0.689	0.842
Libra	7/3.00	9	49.5	135	7.98	65	23	0.579	0.707
Mars	7/3.75	11.3	77.3	211	11.8	65	23	0.37	0.452
Mercury	7/4.50	13.5	111	304	16.9	65	23	0.258	0.315
Moon	7/4.75	14.3	124	339	18.9	65	23	0.232	0.284
Neptune	19/3.25	16.3	158	433	24.7	65	23	0.183	0.224
Orion	19/3.50	17.5	183	503	28.7	65	23	0.157	0.192
Pluto	19/3.75	18.8	210	576	31.9	65	23	0.137	0.168
Saturn	37/3.00	21	262	721	42.2	64	23	0.11	0.135
Sirius	37/3.25	22.8	307	845	48.2	64	23	0.094	0.116
Taurus	19/4.75	23.8	337	924	51.3	65	23	0.0857	0.105
Triton	37/3.75	26.3	409	1120	62.2	64	23	0.0706	0.0872
Uranus	61/3.25	29.3	506	1400	75.2	64	23	0.0572	0.071
Ursula	61/3.50	31.5	587	1620	87.3	64	23	0.0493	0.0616
Venus	61/3.75	33.8	673	1860	97.2	64	23	0.0429	0.0539

Get a free quote by e-mail: sales@huadongcablegroup.com

AAAC Conductor Parameter List:

AAAC Conductor Parameter-ASTM B-399B 399M

AAAC conductor-ASTM B 399B 399M
Nominal Area		Stranding	Overall Diameter	Weight	Rated Strength	Electrical Resistance	Current Rating*
AWG&MCM	mm^2	No.xmm	mm	kg/km	KN	Ω/Km	A
6	13.2	7/1.55	4.65	36.2	4.18	2.5361	69
4	21.1	7/1.96	5.88	57.9	6.69	1.586	93
2	33.5	7/2.47	7.41	92	10.6	0.9987	123
0	53.5	7/3.12	9.36	146.8	17	0.62592	165
2/0	67.3	7/3.50	10.5	184.8	20.4	0.49738	190
3/0	84.9	7/3.93	11.79	233	25.7	0.3945	219
4/0	107	7/4.42	13.26	294.7	32.5	0.31188	253
250	126	19/2.91	14.55	346.7	38.8	0.26509	280
300	152	19/3.19	15.95	416.7	46.6	0.22059	313
350	178	19/3.45	17.25	487.3	52	0.1886	345
400	203	19/3.69	18.45	557.5	59.5	0.16486	375
450	228	19/3.91	19.55	626	66.8	0.14683	402
500	253	19/4.12	20.6	695	74.2	0.13224	429
550	279	37/3.10	21.7	766.2	83.9	0.11995	455
600	303	37/3.23	22.61	831.9	91	0.11049	478
650	330	37/3.37	23.59	905.5	94.9	0.1015	504
700	354	37/3.49	24.43	971.2	101	0.09464	525
750	381	37/3.62	25.34	1045	109	0.08796	549
800	404	37/3.73	26.11	1109	116	0.08285	569
900	456	37/3.96	27.72	1250	131	0.07351	612
1000	508	37/4.18	29.26	1393	146	0.06597	653
1250	631	61/3.63	32.67	1732	179	0.05306	743
1500	759	61/3.98	35.82	2082	215	0.04414	827
1750	886	61/4.30	38.7	2431	251	0.03781	904

Get a free quote by e-mail: sales@huadongcablegroup.com

AAAC Conductor Parameter-BS 3242

AAAC conductor-BS 3242
Code	AL Nominal Area	Cu Nominal Area Equivalent	Total Area	Stranding	Overall Diameter	Weight
	mm^2	mm^2	mm^2	No.Ω/mm	mm	kg/km
-	-	6.45	11.7	7/1.47	4.41	32.2
Box	-	9.68	18.8	7/1.85	5.55	51.7
Acacia	-	12.9	21.9	7/2.08	6.24	66.1
Almond	25	16.1	30.1	7/2.34	7.02	82.9
Ceda	30	19.4	35.5	7/2.54	7.62	97.8
-	40	22.6	42.2	7/2.77	8.31	116.4
Fir	50	25.8	47.8	7/2.95	8.85	131.8
Hazel	100	32.3	59.9	7/3.30	9.9	165
Pine	-	38.7	71.7	7/3.61	10.83	197.7
-	-	45.2	84.1	7/3.91	11.73	231.6
Willow	150	48.4	89.8	7/4.04	12.12	247.5
-	175	51.6	96.5	7/4.19	12.57	266.2
-	300	58.1	108.8	7/4.45	13.35	299.8
Oak	-	64.5	118.9	7/4.65	13.95	327.8
-	-	80.6	118.8	19/2.82	14.1	327.6
Mulberry	-	96.8	151.1	19/3.18	15.9	416.7
Ash	-	113	180.7	19/3.48	17.4	498.1
Elm	-	129	211	19/3.76	18.8	582.1
Poplar	-	145	239	37/2.87	20.09	658.8
-	-	161	270.8	37/3.05	21.35	746.7
Sycamore	-	194	303	37/3.23	22.61	834.9
Upas	-	226	362.1	37/3.53	24.71	998.6
-	-	258	421.8	37/3.81	26.47	1163
Yew	-	-	479.9	37/4.06	28.42	132

Get a free quote by e-mail: sales@huadongcablegroup.com

AAAC Conductor Parameter-BS EN 50182

AAAC conductor-BS EN 50182
Code	Stranding	Nominal Area	Overall Diameter	Weight	Rated Strength	Electrical Resistance	Current Rating*
Code	No.xmm	mm^2	mm	kg/km	KN	Ω/Km	A
Box	7/1.85	18.8	5.55	51.4	5.55	1.748	87
Acacia	7/2.08	23.8	6.24	64.9	7.02	1.3828	101
Almond	7/2.34	30.1	7.02	82.2	8.88	1.0926	116
Cedar	7/2.54	35.5	7.62	96.8	10.46	0.9273	129
Deodar	7/2.77	42.2	8.31	115.2	12.44	0.7797	143
Fir	7/2.95	47.8	8.85	130.6	14.11	0.6875	155
Hazel	7/3.30	59.9	9.9	163.4	17.66	0.5494	178
Pine	7/3.61	71.6	10.83	195.6	21.14	0.4591	199
Holly	7/3.91	84.1	11.73	229.5	24.79	0.3913	219
Willow	7/4.04	89.7	12.12	245	26.47	0.3665	228
Oak	7/4.65	118.9	13.95	324.5	35.07	0.2767	272
Mulberry	19/3.18	150.9	15.9	414.3	44.52	0.2192	314
Ash	19/3.48	180.7	17.4	496.1	53.31	0.183	351
Elm	19/3.76	211	18.8	579.2	62.24	0.1568	386
Poplar	37/2.87	239.4	20.09	659.4	70.61	0.1387	416
Sycamore	37/3.23	303.2	22.61	835.2	89.4	0.1095	480
Upas	37/3.53	362.1	24.71	997.5	106.82	0.0917	535
Yew	37/4.06	479	28.42	1319.6	141.31	0.0693	633
Totara	37/4.14	498.1	28.98	1372.1	146.93	0.0666	648
Rubus	61/3.50	586.9	31.5	1622	173.13	0.0567	714
Sorbus	61/3.71	659.4	33.39	1822.5	194.53	0.0505	764
Araucaria	61/4.14	821.1	37.26	2269.4	242.24	0.0406	868
Redwood	61/4.56	996.2	41.04	2753.2	293.88	0.0334	970

Get a free quote by e-mail: sales@huadongcablegroup.com

AAAC Conductor Parameter-DIN 48201 Part 6

AAAC conductor-DIN 48201 Part 6
Nominal Area		Stranding	Overall Diameter	Weight	Rated Strength	Electrical Resistance	Current Rating*
Nominal	Teorical	Stranding	Overall Diameter	Weight	Rated Strength	Electrical Resistance	Current Rating*
mm^2	mm^2	No.xmm	mm	kg/km	KN	Ω/Km	A
16	15.89	7/1.70	5.1	43	4.44	2.0742	78
25	24.25	7/2.10	6.3	66	6.77	1.3593	102
35	34.36	7/2.50	7.5	94	9.6	0.9591	126
50	49.48	7/3.00	9	135	13.82	0.666	158
50	48.35	19/1.80	9	133	13.5	0.6849	156
70	65.81	19/2.10	10.5	181	18.38	0.5032	189
95	93.27	19/2.50	12.5	256	26.05	0.3551	234
120	116.99	19/2.80	14	322	32.68	0.2831	269
150	147.11	37/2.25	15.8	406	41.09	0.2256	309
185	181.62	37/2.50	17.5	500	50.73	0.1828	352
240	242.54	61/2.25	20.3	670	67.74	0.1371	420
300	299.43	61/2.50	22.5	827	83.63	0.111	477
400	400.14	61/2.89	26	1104	111.76	0.0831	568
500	499.83	61/3.23	29.1	1379	139.6	0.0665	649
625*	626.2	91/2.96	32.6	1732	174.9	0.0531	742
800*	802.09	91/3.35	36.9	2218	224.02	0.0415	857
1000*	999.71	91/3.74	41.1	2767	279.22	0.0333	971

Get a free quote by e-mail: sales@huadongcablegroup.com

AAAC Conductor Parameter-IEC 61089

AAAC conductor-IEC 61089
Code	Nominal Area	Stranding	Overall Diameter	Weight	Rated Strength	Electrical Resistance	Current Rating*
	mm^2	No.xmm	mm	kg/km	KN	Ω/Km	A
16	18.4	18.4	5.49	50.4	5.43	1.7896	86
25	28.8	28.8	6.87	78.7	8.49	1.1453	113
40	46	46	8.67	125.9	13.58	0.7158	151
63	72.5	72.5	10.89	198.3	21.39	0.4545	200
100	115	115	13.9	316.3	33.95	0.2877	266
125	144	144	15.5	395.4	42.44	0.2302	305
160	184	184	17.55	506.1	54.32	0.1798	355
200	230	230	19.65	632.7	67.91	0.1439	407
250	288	288	21.95	790.8	84.88	0.1151	466
315	363	363	24.71	998.9	106.95	0.0916	535
400	460	460	27.86	1268.4	135.81	0.0721	618
450	518	518	29.54	1426.9	152.79	0.0641	663
500	575	575	31.15	1585.5	169.76	0.0577	706
560	645	645	33.03	1778.4	190.14	0.0516	755
630	725	725	35.01	2000.7	213.9	0.0458	809
710	817	817	37.17	2254.8	241.07	0.0407	866
800	921	921	39.42	2540.6	271.62	0.0361	928
900*	1036	1036	41.91	2861.1	305.58	0.0321	992
1000*	1151	1151	44.11	3179	339.53	0.0289	1051
1120*	1289	1289	46.75	3560.5	380.27	0.0258	1118
1250*	1439	1439	49.39	3973.7	424.41	0.0231	1185

Get a free quote by e-mail: sales@huadongcablegroup.com

AAAC Conductor Parameter- China GB 9329 Standard

AAAC Technical characteristics of GB9329
Nominal Area	Stranding Number Diameter	Calculated Area	Overall Diameter	D,C. Resistance	Calculated Breaking Load	Calculated Weight	Continuous Carrying Capacity(A)
mm2	No. mm	mm2	mm	Ω/km	N	kg/km	70 ℃	80 ℃	90 ℃
35	7/2.52	35.3535	8.88	1.11111	10.1010	96.96
50	7/3.02	50.5050	9.99	1.11111	14.1414	137.137	159	191	218
70	7/3.57	70.7070	11.1111	0.00000	20.2020	192.192	195	235	369
95	7/4.16	95.9595	12.1212	0.00000	27.2727	260.260	234	285	328
120	19/2.84	120.120120	14.1414	0.00000	34.3434	331.331	270	330	379
150	19/3.17	150.150150	16.1616	0.00000	42.4242	412.412	308	378	436
185	19/3.52	185.185185	18.1818	0.00000	52.5252	508.508	350	431	497
210	19/3.75	210.210210	19.1919	0.00000	59.5959	577.577	377	466	539
240	19/4.01	240.240240	20.2020	0.00000	67.6767	660.660	409	507	587
300	37/3.21	299.299299	22.2222	0.00000	84.8484	825.825	466	581	675
400	37/3.71	400.400400	26.2626	0.00000	112.112112	1102.1102	553	695	810
500	37/4.15	500.500500	29.2929	0.00000	140.140140	1379.1379	631	798	933
630	61/3.63	631.631631	33.3333	0.00000	176.176176	1742.1742	721	919	1078
800	61/4.09	801.801801	37.3737	0.00000	224.224224	2212.2212	826	1061	1249
1000	61/4.57	1001.10011001	41.4141	0.00000	279.279279	2761.2761	933	1209	1429

Get a free quote by e-mail: sales@huadongcablegroup.com

ACSR Conductor Technical Parameter:

ACSR Conductor Parameter- U.S.A- ASTM B 232

ACSR conductor-ASTM B 232/B 232M
Code	Stranding		Stranding			Overall Diameter	Weight	Breakign Load	Electrical Resistance @20o	Current Rating*
	AL	Steel	AL	Steel	Total	Overall Diameter	Weight	Breakign Load	Electrical Resistance @20o	Current Rating*
	No.xmm	No.xmm	mm^2	mm^2	mm^2	mm	Kg/Km	KN	Ω/Km	A
Turkey	13.3	2.22	6/1.68	1/1.68	5.04	15.52	53.6	4.98	2.1499	76
Swan	21.18	3.53	6/2.12	1/2.12	6.36	24.71	85.3	7.83	1.3501	101
Swanate	21.12	5.35	7/1.96	1/2.61	6.53	26.47	99.6	9.79	1.3539	102
Sparrow	33.59	5.6	6/2.67	1/2.67	8.01	39.19	135.7	11.92	0.8512	135
Sparate	33.54	8.55	7/2.47	1/3.30	8.24	42.09	158.7	15.08	0.8525	135
Robin	42.41	7.07	6/3.00	1/3.00	9	49.48	171.1	14.86	0.6742	156
Raven	53.52	8.92	6/3.37	1/3.37	10.11	62.44	216.1	18.33	0.5343	180
Quail	67.33	11.22	6/3.78	1/3.78	11.34	78.55	272	22.46	0.4247	207
Pigeon	85.12	14.19	6/4.25	1/4.25	12.75	99.31	343	28.02	0.3359	239
Penguin	107.22	17.87	6/4.77	1/4.77	14.31	125.09	432.7	35.36	0.2667	275
Waxwing	134.98	7.5	18/3.09	1/3.09	15.45	142.48	430.2	29.8	0.2129	313
Partridge	134.87	21.99	26/2.57	7/2.00	16.28	156.86	545.9	47.15	0.2141	316
Ostrich	152.19	24.71	26/2.73	7/2.12	17.28	176.9	613.4	53.38	0.1897	341
Merlin	170.22	9.46	18/3.47	1/3.47	17.35	179.68	542.8	37.36	0.1688	361
Linnet	170.55	27.83	26/2.89	7/2.25	18.31	198.38	687.5	59.16	0.1693	365
Oriole	170.5	39.78	30/2.69	7/2.69	18.83	210.28	783.3	72.06	0.1698	367
Chickadee	200.93	11.16	18/3.77	1/3.77	18.85	212.09	641.3	43.15	0.143	400
Brant	201.56	26.13	24/3.27	7/2.18	19.62	227.69	761	61.83	0.1433	403
Ibis	201.34	32.73	26/3.14	7/2.44	19.88	234.07	812.4	68.05	0.1434	404
Lark	200.9	46.88	30/2.92	7/2.92	20.44	247.78	925.2	84.07	0.1441	406
Pelican	242.31	13.46	18/4.14	1/4.14	20.7	255.77	769.7	51.15	0.1186	448
Flicker	241.58	31.4	24/3.58	7/2.39	21.49	272.98	913.5	72.06	0.1195	450
Hawk	241.65	39.19	26/3.44	7/2.67	21.77	280.84	975.1	81.84	0.1195	451
Hen	241.27	56.3	30/3.20	7/3.20	22.4	297.57	1110.6	98.3	0.12	453
Osprey	282.47	15.69	18/4.47	1/4.47	22.35	298.16	897.7	59.6	0.1017	492
Parakeet	282.31	36.6	24/3.87	7/2.58	23.22	318.91	1065.6	83.18	0.1023	495
Dove	282.59	45.92	26/3.72	7/2.89	23.55	328.51	1138.6	94.3	0.1022	497
Eagle	282.07	65.82	30/3.46	7/3.46	24.22	347.89	1295.6	114.76	0.1026	499
Peacock	306.13	39.78	24/4.03	7/2.69	24.19	345.91	1158.9	90.74	0.0943	520
Squab	305.83	49.81	26/3.87	7/3.01	24.51	355.64	1237	101.41	0.0944	521
Wood Duck	307.06	71.65	30/3.61	7/3.61	25.27	378.71	1408.4	121.43	0.0943	525
Teal*	307.06	69.62	30/3.61	19/2.16	25.24	376.68	1396.6	124.54	0.0943	525
Kingbird	323.01	17.95	18/4.78	1/4.78	23.9	340.96	1026.6	68.05	0.089	533
Swift	323.02	8.97	36/3.38	1 /3.38	23.66	331.99	956.5	60.05	0.089	532
Rook	323.07	41.88	24/4.14	7/2.76	24.84	364.95	1217.5	95.19	0.0894	537
Grosbeak	321.84	52.49	26/3.97	7/3.09	25.15	374.33	1300.8	104.97	0.0897	537
Scoter	322.56	75.26	30/3.70	7/3.70	25.9	397.82	1480.7	127.66	0.0897	541
Egret*	322.56	73.54	30/3.70	19/2.22	25.9	396.1	1469	130.77	0.0897	541
Flamingo	337.27	43.72	24/4.23	7/2.82	25.38	380.99	1276.6	99.64	0.0856	551
Gannet	338.26	54.9	26/4.07	7/3.16	25.76	393.16	1363.3	110.31	0.0854	553
Stilt	363.27	46.88	24/4.39	7/2.92	26.32	410.15	1370.4	107.2	0.0795	576
Starling	361.93	59.15	26/4.21	7/3.28	26.68	421.08	1463.7	118.32	0.0798	577
Redwing*	362.06	82.41	30/3.92	19/2.35	27.43	444.47	1650.6	143.23	0.0799	580
Coot	401.86	11.16	36/3.77	1/3.77	26.39	413.02	1195.8	73.39	0.0715	607
Tern	403.77	27.83	45/3.38	7/2.25	27.03	431.6	1331.8	94.3	0.0715	610
Condor	402.33	52.15	54/3.08	7/3.08	27.72	454.48	1520.7	118.32	0.0718	612
Cuckoo	402.33	52.15	24/4.62	7/3.08	27.72	454.48	1522.2	117.43	0.0718	612
Drake	402.56	65.44	26/4.44	7/3.45	28.11	468	1626.4	131.66	0.0717	615
Mallard*	403.84	91.78	26/4.44	7/3.45	28.96	495.62	1836	159.24	0.0717	619
Ruddy	455.5	31.67	45/3.59	7/2.40	28.74	487.17	1507.3	104.53	0.0634	656
Canary	456.28	59.15	54/3.28	7/3.28	29.52	515.43	1723.1	134.33	0.0633	660
Catbird	484.61	13.46	36/4.14	1/4.14	28.98	498.07	1434.4	86.74	0.0593	679
Rail	483.84	33.54	45/3.70	7/2.47	29.61	517.38	1598.1	110.76	0.0597	680
Cardinal	484.53	62.81	54/3.38	7/3.38	30.42	547.34	1825.9	142.34	0.0596	685
Cardinal	484.53	62.81	54/3.38	7/3.38	30.42	547.34	1825.9	142.34	0.0596	685
Tanager	522.79	14.52	36/4.30	1/4.30	30.1	537.31	1553.5	93.85	0.055	710
Orotlan	523.87	36.31	45/3.85	7/2.57	30.81	560.18	1730.5	118.32	0.0551	713
Curlew	522.51	67.73	54/3.51	7/3.51	31.59	590.24	1977.6	153.9	0.0553	716
Bluejay	565.49	38.9	45/4.00	7/2.66	31.98	604.39	1866	127.66	0.0511	745
Finch*	565.03	71.57	54/3.65	19/2.19	32.85	636.6	2127.8	164.58	0.0514	748
Bunting	605.76	41.88	45/4.14	7/2.76	33.12	647.64	1996.9	136.55	0.0477	776
Grackle*	602.79	76.89	54/3.77	19/2.27	33.97	679.68	2278.1	176.59	0.0481	777
Skylark	646.02	17.95	36/4.78	1/4.78	33.46	663.97	1913.6	115.65	0.0445	804
Bittern	644.4	44.66	45/4.27	7/2.85	34.17	689.06	2130.8	145.89	0.0448	805
Pheasant*	645.08	81.71	54/3.90	19/2.34	35.1	726.79	2431.4	183.26	0.045	808
Dipper	684.24	47.2	45/4.40	7/2.93	35.19	731.44	2263.2	154.79	0.0422	834
Martin*	685.39	86.67	54/4.02	19/2.41	36.17	772.06	2581.7	194.82	0.0423	838
Bobolink	725.27	50.14	45/4.53	7/3.02	36.24	775.41	2397.2	164.13	0.0398	862
Plover*	726.92	91.78	54/4.14	19/2.48	37.24	818.7	2734.9	206.39	0.0399	866
Nuthatch	764.2	52.83	45/4.65	7/3.10	37.2	817.03	2529.6	171.25	0.0378	888
Parrot*	766.06	97.03	54/4.25	19/2.55	38.25	863.09	2883.7	217.51	0.0379	892
Lapwing	807.53	55.6	45/4.78	7/3.18	38.22	863.13	2663.5	180.14	0.0358	916
Falcon*	806.23	102.43	54/4.36	19/2.62	39.26	908.66	3038.5	229.52	0.036	919
Chukar*	903.18	73.54	84/3.70	19/2.22	40.7	976.72	3083.1	217.51	0.0321	976
Bluebird*	1092.84	88.84	84/4.07	19/2.44	44.76	1181.68	3731.9	256.65	0.0266	1083
Kiwi*	1099.76	47.52	72/4.41	7/2.94	44.1	1147.28	3423.9	215.28	0.0264	1083
Thrasher*	1171.42	63.94	76/4.43	19/2.07	45.79	1235.36	3754.2	243.75	0.0248	1122
Grouse**	40.54	14.12	8/2.54	1/4.24	9.32	54.66	221.4	21.75	0.7089	153
Petrel**	51.61	30.1	12/2.34	7/2.34	11.7	81.71	377.7	42.08	0.5595	181
Minorca**	56.11	32.73	12/2.44	7/2.44	12.2	88.84	411.1	45.81	0.5146	191
Leghorn**	68.2	39.78	12/2.69	7/2.69	13.45	107.98	499.2	55.16	0.4234	215
Guinea**	80.36	46.88	12/2.92	7/2.92	14.6	127.24	589.7	64.94	0.3593	238
Dotterel**	89.41	52.15	12/3.08	7/3.08	15.4	141.56	656.1	70.28	0.323	254
Dorking**	96.51	56.3	12/3.20	7/3.20	16	152.81	707.8	75.62	0.2992	267
Cochin**	107.04	62.44	12/3.37	7/3.37	16.85	169.48	783.9	84.07	0.2698	284
Brahma&*	102.79	91.78	12/3.37	7/3.37	18.12	194.57	1003.8	114.76	0.2809	283

Get a free quote by e-mail: sales@huadongcablegroup.com

ACSR Conductor Parameter- BS 215-2 Standard

ACSR conductor-BS 215-2
Code	Nominal Area				Stranding		Overall Diameter		Weight(CU)			Rated Strength	Electrical Resistance @20o
	AL		Steel	Total	AL	Steel	Core	Total	AL	Steel	Total
	Nominal	Teorical	Steel	Total	AL	Steel	Core	Total	AL	Steel	Total
	mm^2	mm^2	mm^2	mm^2	No.xmm	No.xmm	mm	mm	Kg/Km	Kg/Km	Kg/Km	KN	Ω/Km
Mole	10	10.62	1.77	12.39	6/1.50	1/1.50	1.5	4.5	29	14	43	4.14	2.706
Squirrel	20	20.94	3.49	24.43	6/2.11	1/2.11	2.11	6.33	57	28	85	7.88	1.368
Gopher	25	26.24	4.38	30.62	6/2.36	1/2.36	2.36	7.08	71	35	106	9.61	1.093
Weasel	30	31.61	5.27	36.88	6/2.59	1/2.59	2.59	7.77	87	41	128	11.45	0.9077
Fox	35	36.66	6.11	42.77	6/2.79	1/2.79	2.79	8.37	101	48	149	13.2	0.7822
Ferret	40	42.41	7.07	49.48	6/3.00	1/3.00	3	9	117	55	172	15.2	0.6766
Rabbit	50	52.88	8.82	61.7	6/3.35	1/3.35	3.35	10.05	145	69	214	18.35	0.5426
Mink	60	63.18	10.53	73.71	6/3.66	1/3.66	3.66	10.98	171	84	255	2.18	0.4545
Shunk	60	63.27	37.03	100.3	12/2.59	7/2.59	7.77	12.95	178	287	465	5.3	0.4567
Beaver	70	74.82	12.47	87.29	6/3.99	1/3.99	3.99	11.97	203	99	302	2.57	0.3825
Horse	70	73.37	42.63	116.2	12/2.79	7/2.79	8.37	13.95	203	335	538	61.2	0.3936
Racoon	75	79.2	13.2	92.4	6/4.1	1/4.1	4.1	12.3	216	104	320	27.2	0.3622
Otter	80	83.88	13.98	97.86	6/4.22	1/4.22	4.22	13.98	226	113	339	28.8	0.3419
Cat	90	95.44	15.86	111.3	6/4.5	1/4.5	4.5	15.9	258	128	386	32.7	0.3007
Hare	100	105	17.5	122.5	6/4.72	1/4.72	4.72	17.5	284	141	425	36	0.2733
Dog	100	105	13.5	118.5	6/4.72	7/1.57	4.71	14.15	288	106	394	32.7	0.2733
Hyena	100	105.8	20.4	126.2	7/4.39	7/1.93	5.79	14.57	250	200	450	40.9	0.2712
Leoperd	125	131.3	16.8	148.1	8/5.28	7/1.75	5.25	15.81	310	182	492	40.7	0.2184
Coyotte	125	132.1	20.1	152.2	26/2.54	7/1.91	5.73	15.89	410	112	522	46.4	0.2187
Congar	125	130.3	7.2	137.5	18/3.05	1/3.05	3.05	15.25	361	58	419	29.8	0.2189
Tiger	125	131.1	30.6	161.7	30/2.36	7/2.36	7.08	16.52	365	237	602	58	0.2202
Wolf	150	158.1	36.8	194.9	30/2.59	7/2.59	7.77	18.13	441	285	726	69.2	0.1828
Dingo	150	158.7	8.8	167.5	18/3.35	1/3.35	3.35	16.75	437	69	506	35.7	0.1815
Lynx	175	183.4	42.8	226.2	30/2.79	7/2.79	8.37	19.53	507	335	842	79.8	0.1576
Caracal	175	184.3	10.2	194.5	18/3.61	1/3.61	3.61	18.05	507	80	587	41.1	0.1563
Panther	200	212.1	49.4	261.5	30/3.00	7/3.00	9	21	586	388	974	92.25	0.1363
Jaguar	200	210.6	11.7	222.3	18/3.86	1/3.86	3.86	19.3	580	91	671	46.55	0.1367
Lion	225	238.5	55.7	294.2	30/3.18	7/3.18	9.54	22.26	657	438	1095	100.6	0.1212
Bear	250	264	61.6	325.6	30/3.35	7/3.35	10.05	23.45	728	485	1213	111.1	0.109
Goat	300	324.3	75.7	400	30/3.71	7/3.71	11.13	25.79	894	595	1489	135.7	0.0891
Sheep	350	374.1	87.3	461.4	30/3.99	7/3.99	11.97	27.93	1031	687	1718	155.9	0.077
Antilope	350	373.1	48.4	421.5	54/2.97	7/2.97	8.91	26.73	1040	371	1411	118.2	0.0772
Bizon	350	381.8	49.5	431.3	54/3.00	7/3.00	9	27	1064	380	1444	120.9	0.7573
Zebra	400	428.9	55.6	484.5	54/3.18	7/3.18	9.54	28.62	1185	436	1621	131.9	0.0674

Get a free quote by e-mail: sales@huadongcablegroup.com

ACSR conductor-IEC 61089 Standard

ACSR conductor-IEC 61089
Code	Nominal Area			Stranding		Overall Diameter	Weight	Breakign Load	Electrical Resistance @20o	Current Rating*
Code	AL	Steel	Total	AL	Steel	Overall Diameter	Weight	Breakign Load	Electrical Resistance @20o	Current Rating*
	mm^2	mm^2	mm^2	No.xmm	No.xmm	mm	Kg/Km	KN	Ω/Km	A
16	16	2.67	18.7	6/1.84	1/1.84	5.52	64.6	6.08	1.7934	85
25	25	4.17	29.2	6/2.30	1/2.30	6.9	100.9	9.13	1.1478	112
40	40	6.67	46.7	6/2.91	1/2.91	8.73	161.5	14.4	0.7174	150
63	63	10.5	73.5	6/3.66	1/3.66	10.98	254.4	21.63	0.4555	198
100	100	16.7	117	6/4.61	1/4.61	13.83	403.8	34.33	0.2869	263
125	125	6.94	132	18/2.97	1/2.97	14.85	397.9	29.17	0.2304	299
125	125	20.4	145	26/2.47	7/1.92	15.64	503.9	45.69	0.231	302
160	160	8.89	169	18/3.36	1/3.36	16.8	509.3	36.18	0.18	347
160	160	26.1	186	26/2.80	7/2.18	17.74	644.9	57.69	0.1805	351
200	200	11.1	211	18/3.76	1/3.76	18.8	636.7	44.22	0.144	398
200	200	32.6	233	26/3.13	7/2.43	19.81	806.2	70.13	0.1444	402
250	250	24.6	275	22/3.80	7/2.11	21.53	880.6	68.72	0.1154	458
250	250	40.7	291	26/3.50	7/2.72	22.16	1007.7	87.67	0.1155	461
315	315	21.8	337	45/2.99	7/1.99	23.91	1039.6	79.03	0.0917	526
315	315	51.3	366	26/3.93	7/3.05	24.87	1269.7	106.83	0.0917	530
400	400	27.7	428	45/3.36	7/2.24	26.88	1320.1	98.36	0.0722	607
400	400	51.9	452	54/3.07	7/3.07	27.63	1510.3	123.04	0.0723	610
450	450	31.1	481	45/3.57	7/2.38	28.56	1485.2	107.47	0.0642	651
450	450	58.3	508	54/3.26	7/3.26	29.34	1699.1	138.42	0.0643	655
500	500	34.6	535	45/3.76	7/2.51	30.09	1650.2	119.41	0.0578	693
500	500	64.8	565	54/3.43	7/3.43	30.87	1887.9	153.8	0.0578	697
560	560	38.7	599	45/3.98	7/2.65	31.83	1848.2	133.74	0.0516	741
560*	560	70.9	631	54/3.63	19/2.18	32.68	2103.4	172.59	0.0516	745
630	630	43.6	674	45/4.22	7/2.81	33.75	2079.2	150.45	0.0459	794
630*	630	79.8	710	54/3.85	19/2.31	34.65	2366.3	191.77	0.0459	798
710	710	49.1	759	45/4.48	7/2.99	35.85	2343.2	169.56	0.0407	851
710*	710	89.9	800	54/4.09	19/2.45	36.79	2666.8	216.12	0.0407	856
800*	800	34.6	835	72/3.76	7/2.51	37.61	2480.2	167.41	0.0361	910
800*	800	66.7	867	84/3.48	7/3.48	38.28	2732.7	205.33	0.0362	912
800*	800	101	901	54/4.34	19/2.61	39.09	3004.9	243.52	0.0362	916
900*	900	38.9	939	72/3.99	7/2.66	39.9	2790.2	188.33	0.0321	972
900*	900	75	975	84/3.69	7/3.69	40.59	3074.2	226.5	0.0322	974
1000*	1000	43.2	1043	72/4.21	7/2.80	42.08	3100.3	209.26	0.0289	1031
1120*	1120	47.3	1167	72/4.45	19/1.78	44.5	3464.9	234.53	0.0258	1096
1120*	1120	91.2	1211	84/4.12	19/2.47	45.31	3811.5	283.17	0.0258	1100
1250*	1250	102	1352	84/4.35	19/2.61	47.85	4253.9	316.04	0.0232	1165
1250*	1250	52.8	1303	72/4.70	19/1.88	47	3867.1	261.75	0.0231	1163

Get a free quote by e-mail: sales@huadongcablegroup.com

ACSR Condutor Parameter-Canadian Standards

ACSR Condutor-Canadian Standards
Code name	Total Area			Stranding and diameter		Approximate overall diameter	Linear mass			Rated tensile strength	Maximum D.C. Resistance at 20℃ Ω/km	Cuttent Rating
	Aluminum	Steel	Total	Aluminum	Steel	Approximate overall diameter	Aluminum	Steel	Total.	Rated tensile strength		Cuttent Rating
	mm2	mm2	mm2	mm	mm	mm	kg/km	kg/km	kg/km	daN		A
wren	8.88	1.11	10.1010	6/1.33	1/1.33	4.44	23.23)	11.11	34.34	308	3.33333	63
Warbler	11.1111	1.11	12.1212	6/1.5	1/1.50	4.44	29.29)	14.14	43.43	420	3.33333	67
Turkey	13.1313	2.22	15.1515	6/1.68	1/1.68	5.55	37.37)	17.17	54.54	524	2.22222	78
Swan	21.2121	4.44	25.2525	6/2.12	1/2.12	6.66	58.58)	27.27	85.85	832	1.11111	105
Swante	21.2121	5.55	26.2626	7/1.96	1/2.61	7.77	58.58)	42.42	100.100	1053	1.11111	104
Swallow	27.2727	4.44	31.3131	6/2.38	1/2.38	7.77	73.73)	35.35	108.108	1021	1.11111	126
Sparrow	34.3434	6.66	39.3939	6/2.67	1/2.67	8.88	92.92)	44.44	136.136	1270	1.11111	139
Sparate	34.3434	9.99	42.4242	7/2.47	1/3.30	8.88	92.92)	67.67	159.159	1611	1.11111	138
Robin	42.4242	7.77	49.4949	6/3.00	1/3.00	9.99	116.116)	55.55	171.171	1585	1.11111	160
Raven	53.5353	9.99	62.6262	6/3.37	1/3.37	10.1010	147.147)	69.69	216.216	1932	1.11111	183
Quail	67.6767	11.1111	79.7979	6/3.78	1/3.78	11.1111	185.185)	88.88	273.273	2362	0.00000	210
Pigeon	85.8585	14.1414	99.9999	6/4.25	1/4.25	13.1313	233.233)	110.110	343.343	2941	0.00000	241
Penguin	107.107107	18.1818	125.125125	6/4.77	1/4.77	14.1414	294.294)	139.139	433.433	3706	0.00000	276
Waxwing	135.135135	7.77	143.143143	18/3.09	1/3.09	15.1515	373.373)	58.58	431.431	3027	0.00000	319
Partridge	135.135135	22.2222	157.157157	26/2.57	7/2.00	16.1616	374.374)	172.172	546.546	5029	0.00000	323
Ostrich	152.152152	25.2525	177.177177	26/2.73	7/2.12	17.1717	421.421)	193.193	614.614	5652	0.00000	346
Merlin	170.170170	9.99	180.180180	18/3.47	1/3.47	17.1717	470.470)	74.74	544.544	3823	0.00000	364
Linnet	170.170170	28.2828	198.198198	26/2.89	7/2.25	18.1818	472.472)	217.217	689.689	6271	0.00000	371
Oriole	170.170170	40.4040	210.210210	30/2.69	7/2.69	19.1919	473.473)	311.311	784.784	7745	0.00000	372
Chickadee	201.201201	11. 16	213.213213	18/3.77	1/3.77	19.1919	555.555)	87.87	642.642	4399	0.00000	403
Brant	201.201201	26.2626	228.228228	24/3.27	7/2.18	20.2020	558.558)	204.204	762.762	6469	0.00000	405
Ibis	201.201201	33.3333	234.234234	26/3.14	7/2.44	20.2020	558.558)	256.256	814.814	7211	0.00000	403
Lark	201.201201	47.4747	248.248248	30/2.92	7/2.92	20.2020	560.560)	367.367	927.927	8869	0.00000	410
Pelican	242.242242	13.1313	255.255255	18/4.12	1/4.14	21.2121	666.666)	105.105	771.771	5216	0.00000	449
Flicker	242.242242	31.3131	273.273273	24/3.58	7/2.39	21.2121	670.670)	245.245	915.915	7666	0.00000	454
Hawk	242.242242	39.3939	281.281281	26/3.44	7/2.67	22.2222	670.670)	308.308	978.978	8665	0.00000	455
Hen	242.242242	56.5656	298.298298	30/3.20	7/3.20	22.2222	671.671)	441.441	1112.1112	10534	0.00000	457
Osprey	282.282282	16.1616	298.298298	18/4.47	1/4.47	22.2222	777.777)	122.122	899.899	6088	0.00000	492
Parakeet	282.282282	37.3737	319.319319	24/3.87	7/2.58	23.2323	781.781)	286.286	1067.1067	8822	0.00000	492
Dove	282.282282	46.4646	328.328328	26/3.72	7/2.89	24.2424	781.781)	359.359	1140.1140	10103	0.00000	499
Eagle	282.282282	66.6666	348.348348	30/3.46	7/3.46	24.2424	783.783)	515.515	1298.1298	13392	0.00000	500
Peacock	307.307307	40.4040	346.346346	24/4.03	7/2.69	24.2424	849.849)	311.311	1160.1160	9588	0.00000	522
Squab	307.307307	50.5050	357.357357	26/3.87	7/3.01	25.2525	850.850)	390.390	1240.1240	10841	0.00000	523
Wood duck	307.307307	72.7272	378.378378	30/3.16	7/3.61	25.2525	851.851)	560.560	1411.1411	12884	0.00000	523
Teal	307.307307	70.7070	376.376376	30/3.61	19/2.16	25.2525	851.851)	548.548	1399.1399	13359	0.00000	527
Kingbird	322.322322	18.1818	340.340340	18/4.78	1/4.78	24.2424	889.889)	139.139	1028.1028	6956	0.00000	530
Rook	322.322322	42.4242	364.364364	24/4.14	7/2.76	25.2525	893.893)	326.326	1219.1219	10083	0.00000	537
Grosbeak	322.322322	52.5252	375.375375	26/3.97	7/3.09	25.2525	893.893)	409.409	1302.1302	11180	0.00000	538
Scoter	322.322322	75.7575	394.394394	30/3.70	7/3.70	26.2626	895.895)	589.589	1484.1484	13544	0.00000	541
Egret	322.322322	74.7474	396.396396	30/3.70	19/2.22	26.2626	894.894)	576.576	1470.1470	14055	0.00000	542
Swift	322.322322	9.99	331.331331	36/3.38	1/3.38	24.2424	888.888)	70.70	958.958	6052	0.00000	542
Flamingo	338.338338	44.4444	382.382382	24/4.23	7/2.82	25.2525	936.936)	342.342	1278.1278	10566	0.00000	552
Gannet	338.338338	55.5555	393.393393	26/4.07	7/3.16	26.2626	936.936)	429.429	1365.1365	11733	0.00000	618
Stilt	363.363363	47.4747	410.410410	24/4.39	7/2.92	26.2626	1005.1005)	367.367	1372.1372	11335	0.00000	577
Starling	363.363363	59.5959	422.422422	26/4.21	7/3.28	27.2727	1005.1005)	461.461	1466.1466	12591	0.00000	578
Redwing	363.363363	83.8383	445.445445	30/3.92	19/2.35	27.2727	1006.1006)	647.647	1653.1653	15394	0.00000	581
Tern	403.403403	28.2828	431.431431	45/3.38	7/2.25	27.2727	1116.1116)	217.217	1333.1333	9737	0.00000	610
Condor	403.403403	52.5252	455.455455	54/3.08	7/3.08	28.2828	1116.1116)	408.408	1524.1524	12445	0.00000	614
Cuckoo	403.403403	52.5252	455.455455	24/4.62	7/3.08	28.2828)	1116.1116)	408.408	1522.1522	12394	0.00000	614
Drake	402.84	66.6666	468.468468	26/4.44	7/3.45	28.2828)	1116.1116)	518	1628	13992	0.07191	614
Coot	402.84	11.1111	414.414414	36/3.77	1/3.77	26.2626)	1110.1110)	88	1198	7485	0.07156	614
Mallard	403.403403	92.9292	485.485485	30/4.14	19/2.48	29.2929)	1119.1119)	719	1838	17118	0.07208	618
Ruddy	456.456456	32.3232	488.488488	45/3.59	7/2.40	29.2929)	1263.1263)	247	1510	10931	0.06351	656
Canary	456.456456	59.5959	515.515515	54/3.28	7/3.28	30.3030)	1263.1263)	461	1724	14095	0.06351	660
Rail	483.483483	33.3333	517.517517	45/3.70	7/2.47	30.3030)	1339.1339)	262	1601	11585	0.05992	679
Catbird	483.483483	13.1313	496. 84	36/4.14	1/4.14	29.2929)	1333.1333)	105	1438	8766	0.00000	679
Cardinal	483.483483	63.6363	546. 07	54/3.38	7/3.38	30.3030)	1339.1339)	490	1829	14936	0.00000	681
Ortolan	524.524524	36.3636	559. 87	45/3.85	7/2.57	31.3131)	1451.1451)	283	1734	12310	0.00000	712
Tanager	524.524524	15.1515	538.538538	36/4.30	1/4.30	30.3030)	1443.1443)	113	1556	9493	0.00000	710
Curlew	524.524524	68.6868	592.592592	54/3.52	7/3.52	32.3232)	1451.1451)	530	1981	16180	0.00000	715
Bluejay	564.564564	39.3939	603.603603	45/4.00	7/2.66	32.3232)	1563.1563)	385	1868	13263	0.00000	743
Finch.	564.564564	72.7272	635.635635	54/3.65	19/2.19	33.3333)	1570.1570)	580	2130	17441	0.00000	746
Bunting	604.604604	42.4242	646.646646	48/4.14	7/2.76	33.3333)	1674.1674)	327	2001	14179	0.00000	772
Grackle	604.604604	77.7777	681.681681	54/3.77	19/2.27	34.3434)	1682.1682)	600	2282	18678	0.00000	773
Bittern	645.645645	45.4545	689.689689	45/4.27	7/2.85	34.3434)	1785.1785)	349	2134	15148	0.00000	802
Pheasant	645.645645	82.8282	726.726726	54/3.90	19/2.34	35.3535)	1795.1795)	638	2433	19400	0.00000	807
Skylark	645.645645	18.1818	662.662662	36/4.78	1/4.78	33.3333)	1777.1777)	140	1917	11585	0.00000	810
Dipper	685.685685	47.4747	732.732732	45/4.40	7/2.92	35.3535)	1898.1898)	368	2266	16070	0.00000	831
Martin	685.685685	89.8989	772.772772	54/4.02	19/2.41	36.3636)	1906.1906)	679	2585	20605	0.00000	835
Bobolink	725.725725	50.5050	775.775775	45/4.53	7/3.02	36.3636)	2009.2009)	393	2402	17071	0.00000	859
Plover	725.725725	92.9292	817.817817	54/4.14	19/2.48	37.3737)	2019.2019)	719	2738	21824	0.00000	862
Nuthatch	765.765765	53.5353	818.818818	45/4.65	7/3.10	37.3737)	2120.2120)	414	2534	17789	0.00000	886
Parrot	765.765765	97.9797	862.862862	54/4.25	19/2.55	38.3838)	2131.2131)	759	2890	23020	0.00000	890
Lapwing	806.806806	55.5555	861.861861	45/4.77	7/3.18	38.3838)	2232.2232)	435	2667	18702	0.00000	911
Falcon	806.806806	102.102102	908.908908	54/4.36	19/2.62	39.3939)	2243.2243)	799	3042	24255	0.00000	917
Chukar	903.903903	74.7474	903.903903	84/3.70	19/2.22	41.4141)	2511.2511)	575	3086	22685	0.00000	975
BlueBird	1092.10921092	89.8989	1092.10921092	84/4.07	19/2.44	45.4545)	3036.3036)	697	3733	26830	0.00000	1180
Kiwi	1100.11001100	48.4848	1099.10991099	72/4.41	7/2.94	44.4444)	3057.3057)	370	3427	22160	0.00000	1180
Thrasher	1171.11711171	65.6565	1171.11711171	76/4.43	19/2.09	46.4646)	3256.3256)	511	3767	25300	0.00000	1200
Grouse	41.4141	14.1414	55.5555	8/2.54	1/4.24	9.99)	112.112)	110	222	2360	1.11111	155
Petrel	52.5252	30.3030	82.8282	12/2.34	7/2.34	12.1212)	143.143)	235	378	4715	1.11111	187
Minorca	56.5656	33.3333	89.8989	12/2.44	7/2.44	12.1212)	156.156)	256	412	5125	1.11111	197
Leghorn	68.6868	40.4040	108.108108	12/2.69	7/2.69	13.1313)	189.189)	311	500	6170	0.00000	221
Guinea	81.8181	47.4747	128.128128	12/2.92	7/2.92	15.1515)	223.223)	367	590	7255	0.00000	244
Dotterel	89.8989	52.5252	142.142142	12/3.08	7/3.08	15.1515)	248.248)	409	657	7850	0.00000	260
Dorking	97.9797	56.5656	153.153153	12/3.20	7/3.20	16.1616)	268.268)	441	709	8480	0.00000	272
Brahma	103.103103	92.9292	195.195195	16/2.86	19/2.48	18.1818)	285.285)	722	1007	12880	0.00000	288
Auk	103.103103	92.9292	195.195195	8/4.05	7/2.25	15.1515)	283.283)	217.3	500	8740	0.00000	276
Cochin	107.107107	62.6262	170.170170	12/3.37	7/3.37	17.1717)	297.297)	488	765	9390	0.00000	287

Get a free quote by e-mail: sales@huadongcablegroup.com

ACSR Conductor Parameter- DIN 48204 Standard

ACSR Technical characteristics / DIN 48204
Area				Standing and wire diameter		Overall diameter		Nominal breaking load	Maximum resistance at 20°C	Current Rating
Nominal.	Actual			Standing and wire diameter			Total.
Al/Steel--	Al	Steel	Total	Aluminum	Steel		Total.
Al/Steel--	mm2	mm2	mm2	mm	mm	mm	kg/km	daN	Ω/km	A
16/2.5	15.1515	2.22	18.1818	6/1.80	1/1.80	5.55	62	595	2.22222	105
25/4.0	24.2424	4.44	28.2828	6/2.25	1/2.5	7.77	97	920	1.11111	140
35/6.0	34.3434	6.66	40.4040	6/2.70	1/2.70	8.88	140	1265	1.11111	170
44/32.0	44.4444	32.3232	76.7676	14/2.00	7/2.40	11.1111	372	4500	1.11111	220
50/8.0	48.4848	8.88	56.5656	6/3.20	1/3.20	10.1010	196	1710	1.11111	210
50/30	51.5151	30.3030	81.8181	12/2.33	7/2.33	12.1212	378	4380	1.11111	223
70/12	70.7070	11.1111	81.8181	26/1.85	7/1.44	12.1212	284	2680	0.00000	290
95/15	94.9494	15.1515	110.110110	26/2.15	7/1.67	14.1414	383	3575	0.00000	350
95/55	96.9696	56.5656	153.153153	12/3.20	7/3.20	16.1616	712	7935	0.00000	352
105/75	106.106106	76.7676	182.182182	14/3.10	9/2.25	18.1818	891	10845	0.00000	385
120/20	121.121121	20.2020	141.141141	26/2.44	7/1.90	16.1616	494	4565	0.00000	410
120/70	122.122122	71.7171	193.193193	12/3.60	7/3.60	18.1818	90	10000	0.00000	410
125/30	128.128128	30.3030	158.158158	30/2.33	7/2.33	16.1616	591	5760	0.00000	425
150/25	149.149149	24.2424	173.173173	26/2.70	7/2.10	17.1717	605	5525	0.00000	470
170/40	172.172172	40.4040	212.212212	30/2.70	7/2.70	19.1919	794	7675	0.00000	520
185/30	184.184184	30.3030	214.214214	26/3.00	7/2.33	19.1919	746	6620	0.00000	535
210/35	209.209209	34.3434	243.243243	26/3.20	7/2.49	20.2020	850	7490	0.00000	590
210/50	212.212212	50.5050	262.262262	30/3.00	7/3.00	21.2121	981	9390	0.00000	610
230/30	231.231231	30.3030	261.261261	24/3.50	7/2.33	21.2121	877	7310	0.00000	630
240/40	243.243243	40.4040	282.282282	26/3.45	7/2.68	22.2222	987	8640	0.00000	645
265/35	264.264264	34.3434	298.298298	24/3.74	7/2.49	22.2222	1002	8305	0.00000	680
300/50	304.304304	50.5050	354.354354	26/3.86	7/3.00	24.2424	1236	10700	0.00000	740
305/40	305.305305	40.4040	344.344344	54/2.68	7/2.68	24.2424	1160	9940	0.00000	740
340/30	339.339339	30.3030	369.369369	48/3.00	7/2.33	25.2525	1180	9290	0.00000	790
380/50	382.382382	50.5050	432.432432	54/3.00	7/3.00	27.2727	1453	12310	0.00000	840
385/35	386.386386	34.3434	420.420420	48/3.20	7/2.49	27.2727	1344	10480	0.00000	850
435/55	434.434434	59.5959	491.491491	54/3.20	7/3.20	29.2929	1653	13645	0.00000	900
450/40	449.449449	40.4040	488.488488	48/3.45	7/2.68	29.2929	1561	12075	0.00000	920
490/65	490.490490	64.6464	554.554554	54/3.40	7/3.40	31.3131	1866	15310	0.00000	960
495/35	494.494494	34.3434	528.528528	45/3.74	7/2.49	30.3030	1646	12180	0.00000	968
510/45	510.510510	45.4545	556.556556	48/3.68	7/2.87	31.3131	1778	13665	0.00000	980
550/70	550.550550	71.7171	621.621621	54/3.60	7/3.60	32.3232	2092	17060	0.00000	1020
560/50	562.562562	50.5050	611.611611	48/3.86	7/3.00	32.3232	1954	14895	0.00000	1040
570/40	566.566566	40.4040	610.610610	45/4.00	7/2.68	32.3232	1888	13900	0.00000	1040
650/45	698.698698	45.4545	653.653653	45/4.30	7/2.87	34.3434	2163	15552	0.00000	1280
680/85	679.679679	86.8686	765.765765	54/4.00	19/2.40	36.3636	2570	21040	0.00000	1150
1045/45	1046.10461046	45.4545	1091.10911091	72/4.30	7/2.87	43.4343	3249	21787	0.00000	1570

Get a free quote by e-mail: sales@huadongcablegroup.com

ACSR Conductor- GB1179-83 Standard

ACSR Technical characteristics GB1179-83 Standard
Nominal Area Aluminum/Steel mm2	Stranding No./Dia. No./mm		Calculated Area mm2			Overall Diameter mm	D.C. Resistance Ω/km	Calculated Breaking Load N	Calculated Weight kg/km	Continuous Carrying Capacity(A)
Nominal Area Aluminum/Steel mm2	Aluminum	Steel	Aluminum	Steel	Total	Overall Diameter mm	D.C. Resistance Ω/km	Calculated Breaking Load N	Calculated Weight kg/km	70 ℃	80 ℃	90 ℃
10/2	6/1.50	1/1.50	11.1111	2.22	12.1212	4.44	3.33333	4120	43.43	66	78	87
16/3	6/1.85	1/1.85	16.1616	3.33	19.1919	6.66	2.22222	6130	65.65	85	100	113
25/4	6/2.32	1/2.32	25.2525	4.44	30.3030	7.77	1.11111	9290	103.103	111	131	149
35/6	6/2.72	1/2.72	35.3535	6.66	41.4141	8.88	1.11111	12630	141.141	134	158	180
50/8	6/3.20	1/3. 20	48.4848	8.88	56.5656	10.1010	1.11111	16870	195.195	161	191	218
50/30	12/2.32	7/2.32	51.5151	30.3030	80.8080	12.1212	1.11111	42620	372.372	166	195	218
70/10	6/3.80	1/3.80	68.6868	11.1111	79.7979	11.1111	0.00000	23390	275.275	194	232	266
70/40	12/2.72	7/2.72	70.7070	41.4141	110.110110	14.1414	0.00000	58300	511.511	196	230	257
95/15	26/2.15	7/1.67	94.9494	15.1515	110.110110	14.1414	0.00000	35000	381.381	252	306	351
95/20	7/4.16	7/1.85	95.9595	19.1919	114.114114	14.1414	0.00000	37200	409.409	253	277	319
95/55	12/3.20	7/3.20	97.9797	56.5656	153.153153	16.1616	0.00000	78110	708.708	250	270	301
120/7	18/2.90	1/2.90	119.119119	7.77	126.126126	14.1414	0.00000	27570	379.379	287	350	401
120/20	26/2.38	7/1.85	116.116116	19.1919	134.134134	15.1515	0.00000	41000	467.467	285	348	399
120/25	7/4.72	7/2.10	122.122122	24.2424	150.150150	16.1616	0.00000	47880	527.527	265	315	385
120/70	12/3.60	7/3.60	122.122122	71.7171	193.193193	18.1818	0.00000	98370	896.896	258	301	335
150/8	18/3.20	1/3.20	145.145145	8.88	153.153153	16.1616	0.00000	32860	461.461	323	395	454
150/20	24/2.78	7/1.85	146.146146	19.1919	164.164164	17.1717	0.00000	46630	549.549	326	400	461
150/25	26/2.70	7/2.10	149.149149	24.2424	173.173173	17.1717	0.00000	54110	601.601	331	407	469
150/35	30/2.50	7/2.50	147.147147	34.3434	182.182182	18.1818	0.00000	65020	676.676	331	407	469
18/10	18/3.60	1/3.60	183.183183	10.1010	193.193193	18.1818	0.00000	40880	584.584	372	458	528
185/25	24/3.15	7/2.10	187.187187	24.2424	211.211211	19.1919	0.00000	59420	706.706	379	468	540
185/30	26/2.98	7/2.32	181.181181	30.3030	211.211211	19.1919	0.00000	64320	733.733	373	480	531
185/45	30/2.80	7/2.80	185.185185	43.4343	228.228228	20.2020	0.00000	80190	848.848	379	489	541
210/10	18/3.80	1/3.80	204.204204	11.1111	215.215215	19.1919	0.00000	45140	651.651	397	490	565
210/25	24/3.33	7/2.22	209.209209	27.2727	236.236236	20.2020	0.00000	65990	789.789	405	501	579
210/35	26/3.22	7/2.50	212.212212	34.3434	246.246246	20.2020	0.00000	74250	854.854	409	507	586
210/50	30/2 98	7/2.98	209.209209	49.4949	258.258258	21.2121	0.00000	90830	961.961	409	507	586
240/30	24/3.60	7/2.40	244.244244	32.3232	276.276276	22.2222	0.00000	75620	922.922	445	552	639
240/40	26/3.42	7/2.66	239.239239	39.3939	278.278278	22.2222	0.00000	83370	964.964	440	546	633
240/55	30/3.20	7/3.20	241.241241	56.5656	298.298298	22.2222	0.00000	102100	1108.1108	445	554	641
300/15	42/3.00	7/1.67	297.297297	15.1515	312.312312	23.2323	0.00000	68060	940.940	495	615	711
300/20	45/2.93	7/1.95	303.303303	21.2121	324.324324	23.2323	0.00000	75650	1002.1002	502	624	722
300/25	48/2.85	7/2.22	306.306306	27.2727	333.333333	24.2424	0.00000	83410	1058.1058	505	628	726
300/40	24/3.99	7/2.66	300.300300	39.3939	339.339339	24.2424	0.00000	92220	1133.1133	503	628	728
300/50	26/3.83	7/2.98	300.300300	49.4949	348.348348	24.2424	0.00000	103400	1210.1210	504	629	730
300/70	30/3.60	7/3.60	305.305305	71.7171	377.377377	25.2525	0.00000	128000	1402.1402	512	641	745
400/20	42/3.51	7/1.95	406.406406	21.2121	427.427427	27.2727	0.00000	88850	1286.1286	595	746	884
400/25	45/3.33	7/2.22	392.392392	27.2727	419.419419	27.2727	0.00000	95940	1295.1295	584	730	845
400/35	48/3.22	7/2.50	391.391391	34.3434	425.425425	27.2727	0.00000	103900	1349.1349	583	729	844
400/50	54/3.07	7/3.07	400.400400	52.5252	452.452452	28.2828	0.00000	123400	1511.1511	592	741	857
400/65	26/4.42	7/3.44	399.399399	65.6565	464.464464	28.2828	0.00000	135200	1611.1611	597	752	876
400/95	30/4.16	19/2.50	408.408408	93.9393	501.501501	29.2929	0.00000	171300	1860.1860	608	767	895
500/35	45/3.75	7/2.50	497.497497	34.3434	531.531531	30.3030	0.00000	119500	1642.1642	670	842	977
500/45	48/3.60	7/2.80	489.489489	43.4343	532.532532	30.3030	0.00000	128100	1688.1688	664	834	967
500/65	54/3.44	7/3.44	502.502502	65.6565	567.567567	31.3131	0.00000	154000	1897.1897	667	850	983
630/45	45/4.2	7/2.80	623.623623	43.4343	667.667667	34.3434	0.00000	148700	2060.2060	763	964	1120
630/55	48/4.12	7/3.20	640.640640	56.5656	696.696696	34.3434	0.00000	164400	2209.2209	775	979	1136
630/80	54/3.87	19/2.32	635.635635	80.8080	716.716716	35.3535	0.00000	192900	2388.2388	774	977	1131
720/50	45/4.53					36.24	0.0249	170600	2397	830	1040	1220
800/55	45/4.80	7/3.20	814.814814	56.5656	871.871871	38.3838	0.00000	191500	2690.2690	887	1126	1310
800/70	48/4.63	7/3.60	808.808808	71.7171	879.879879	39.3939	0.00000	207000	2791.2791	884	1121	1301
800/100	54/4.33	19/2.60	795.795795	101.101101	896.896896	39.3939	0.00000	241100	2991.2991	878	1113	1288
1400/120	84/4.60					50.8	0.02072	355000	4781	1270	1580	1805
1400/135	88/4.50					51	0.02067	375300	4927	1272	1583	1808

Get a free quote by e-mail: sales@huadongcablegroup.com

ACSR Conductor- ASNZS 3607 Standard

ACSR/GZ – Aluminium conductors, galvanised steel reinforced AS/NZS 3607
Product	Strand/wire		Cross sectional area			Nominal	Approximate	Calculated	Calculated	Coefficient
						O.D.	mass	minimum breaking load	final modulus of elasticity	of linear
						mm	kg/km	kN	GPa	expansion
code	Alum	Steel	Alum	Steel	Total					/°C x 10-6
code	No/mm	No/mm	mm2	mm2	mm2
QUINCE	3/1.75	4/1.75	7.2	9.6	16.8	5.3	96	12.7	136	13.9
RAISIN	3/2.50	4/2.50	14.7	19.6	34.3	7.5	193	24.4	136	13.9
SUPER SULTANA	3/3.00	4/3.00	21.2	28.3	49.5	9	280	35	136	13.9
SULTANA	4/3.00	3/3.00	28.3	21.2	49.5	9	242	28.3	119	15.2
WALNUT	4/3.75	3/3.75	44.2	33.1	77.3	11.3	379	43.9	119	15.2
ALMOND	6/2.50	1/2.50	29.2	4.9	34.4	7.5	119	10.5	83	19.3
APRICOT	6/2.75	1/2.75	35.6	5.9	41.5	8.3	144	12.6	83	19.3
APPLE	6/3.00	1/3.00	42.4	7.1	49.5	9	171	14.9	83	19.3
BANANA	6/3.75	1/3.75	66.3	11	77.3	11.3	268	22.8	83	19.3
CHERRY	6/4.75	7/1.60	106	14.1	120	14.3	404	33.2	80	19.9
GRAPE	30/2.50	7/2.50	147	34.4	182	17.5	677	63.5	88	18.4
LEMON	30/3.00	7/3.00	212	49.5	262	21	973	90.4	88	18.4
LYCHEE	30/3.25	7/3.25	249	58.1	307	22.8	1140	105	88	18.4
LIME	30/3.50	7/3.50	289	67.3	356	24.5	1320	122	88	18.4
MANGO	54/3.00	7/3.00	382	49.5	431	27	1440	119	78	19.9
ORANGE	54/3.25	7/3.25	448	58.1	506	29.3	1690	137	78	19.9
OLIVE	54/3.50	7/3.50	519	67.3	587	31.5	1960	159	78	19.9
PAW PAW	54/3.75	19/2.25	596	75.5	672	33.8	2240	178	77	20
PEACH	54/4.75	19/2.85	957	121	1078	42.8	3600	284	77	20

Get a free quote by e-mail: sales@huadongcablegroup.com

Why Choose Us

Please feel free to leave your requirement, We will reply you in 12 hours.
