BS 7835 3.8/6.6kV to 19/33kV LSZH Armoured Cables

APPLICATION

Power cables for power networks, underground, outdoors and in cable ducting. For installation where fire, smoke emission and toxic fumes create a potential threat to life and equipment.

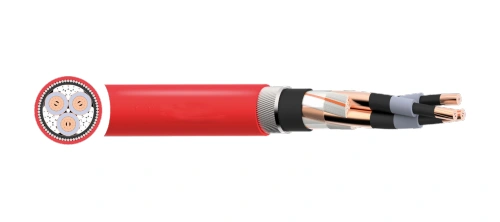

BS 7835 XLPE / LSZH 19/33 (36)kV Cable

Voltage: 19/33 (36)kV
Conductor: Class 2 stranded copper conductor
Conductor Screen: Semi-conductive XLPE
Insulation: XLPE Type GP8
Insulation Screen: Semi-conductive XLPE
Metallic Screen: Individual or overall copper tape screen
Filler: PET fibres
Separator: Binding tape
Bedding: LSZH
Armour:
Single core: AWA (Aluminium Wire Armoured)
Multi-core: SWA (Steel Wire Armoured)
Sheath: LSZH

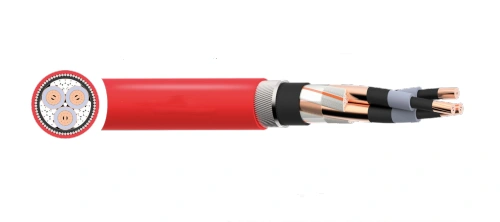

BS 7835 XLPE LSZH 12.7/22kV Cable

Voltage: 12.7/22 (24) kV
Conductor: Class 2 stranded copper
Conductor Screen: Semi-conductive XLPE
Insulation: XLPE
Insulation Screen: Semi-conductive XLPE
Metallic Screen: Individual or collective overall copper tape screen
Filler: PET fibres
Separator: Binding tape
Bedding: LSZH
Armour:
Single core: AWA (Aluminium Wire Armoured)
Multi-core: SWA (Steel Wire Armoured)
Sheath: LSZH

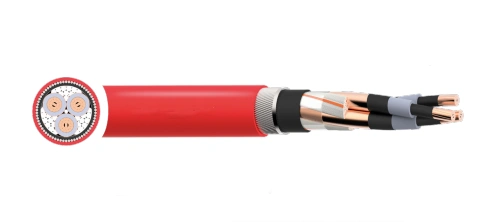

BS 7835 XLPE LSZH 8.7/15kV Cable

Voltage: 8.7/15 (17.5) kV
Conductor: Class 2 stranded copper conductor
Conductor Screen: Semi-conductive XLPE
Insulation: XLPE
Insulation Screen: Semi-conductive XLPE
Metallic Screen: Individual or collective overall copper tape screen
Filler: PET fibres
Separator: Binding tape
Bedding: LSZH
Armour:
Single core: AWA (Aluminium Wire Armoured)
Multi-core: SWA (Steel Wire Armoured)
Sheath: LSZH

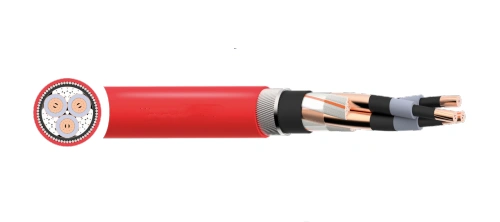

BS 7835 XLPE LSZH 6.35/11 (12)kV Cable

Voltage: 6.35/11 (12)kV
Conductor: Class 2 stranded copper conductor
Conductor Screen: Semi-conductive XLPE
Insulation: XLPE
Insulation Screen: Semi-conductive XLPE
Metallic Screen: Individual or overall copper tape screen
Filler: PET fibres
Separator: Binding tape
Bedding: LSZH
Armour:
Single core: AWA (Aluminium Wire Armoured)
Multi-core: SWA (Steel Wire Armoured)
Sheath: LSZH

BS 7835 3.8/6.6kV Cable

Voltage: 3.8/6.6 (7.2) kV
Conductor: Class 2 stranded compacted copper conductor
Conductor Screen: Semi-conductive XLPE
Insulation: XLPE
Insulation Screen: Semi-conductive XLPE
Metallic Screen: Concentric copper wires and copper tape
Separator: Binding tape
Inner Sheath: LSZH
Armour:
Single core: AWA (Aluminium Wire)
Multi core: SWA (Galvanised steel wire)
Sheath: LSZH

BS 7835 Aluminium AWA/SWA LSZH 3.8/6.6kV Cable

Voltage: 3.8/6.6 (7.2)kV
Conductor: Class 2 compacted aluminium conductor
Conductor Screen: Semi-conductive XLPE
Insulation: XLPE
Insulation Screen: Semi-conductive XLPE
Insulation Screen: Concentric copper wires and copper tape
Inner Sheath: LSZH
Armour:
Single core: AWA (Aluminium Wire Armoured)
Multi core: SWA (Galvanised steel wire)
Sheath: LSZH

BS 7835 XLPE / LSZH 19/33 (36)kV Cable Dimension

NO.OF CORES	NOMINAL CROSS SECTIONAL AREA	NOMINAL WEIGHT
NO.OF CORES	mm²	kg/km
1	70	2300
1	95	2650
1	120	3000
1	150	3500
1	185	4000
1	240	4650
1	300	5450
1	400	6350
1	500	7600
1	630	9150
1	800	11100
1	1000	13400
3	50	9150
3	70	10300
3	95	11600
3	120	12800
3	150	14050
3	185	15650
3	240	18200
3	300	21100
3	400	24200

Get a free quote by e-mail: sales@huadongcablegroup.com

BS 7835 XLPE LSZH 12.7/22kV Cable Dimension

NO.OF CORES	NOMINAL CROSS SECTIONAL AREA	NOMINAL WEIGHT
NO.OF CORES	mm²	kg/km
1	50	1500
1	70	1800
1	95	2100
1	120	2500
1	150	2750
1	185	3100
1	240	4000
1	300	4600
1	400	5600
1	500	6750
1	630	8200
3	50	5800
3	70	6800
3	95	8000
3	120	9700
3	150	10900
3	185	12250
3	240	14500
3	300	16900
3	400	20200
3	500	24000

Get a free quote by e-mail: sales@huadongcablegroup.com

BS 7835 XLPE LSZH 8.7/15kV Cable Dimension

NO.OF CORES	NOMINAL CROSS SECTIONAL AREA	NOMINAL WEIGHT
NO.OF CORES	mm²	kg/km
1	50	1300
1	70	1600
1	95	2000
1	120	2250
1	150	2600
1	185	3000
1	240	3600
1	300	4500
1	400	5400
1	500	6500
1	630	8000
3	50	5250
3	70	6250
3	95	7300
3	120	8300
3	150	10250
3	185	11500
3	240	13800
3	300	16200
3	400	19300
3	500	23100

Get a free quote by e-mail: sales@huadongcablegroup.com

BS 7835 XLPE LSZH 6.35/11 (12)kV Cable Dimension

NO.OF CORES	NOMINAL CROSS SECTIONAL AREA	NOMINAL WEIGHT
NO.OF CORES	mm²	kg/km
1	70	2300
1	95	2650
1	120	3000
1	150	3500
1	185	4000
1	240	4650
1	300	5450
1	400	6350
1	500	7600
1	630	9150
1	800	11100
1	1000	13400
3	35	4700
3	50	9150
3	70	10300
3	95	11600
3	120	12800
3	150	14050
3	185	15650
3	240	18200
3	300	21100
3	400	24200

Get a free quote by e-mail: sales@huadongcablegroup.com

BS 7835 3.8/6.6kV Cable Dimension

NO.OF CORES	NOMINAL CROSS SECTIONAL AREA	NOMINAL WEIGHT
NO.OF CORES	mm²	kg/km
1	35	1.023
1	50	1.171
1	70	1.418
1	95	1.719
1	120	2013
1	150	2.386
1	185	2866
1	240	3.486
1	300	4.256
1	400	5.406
1	500	6.693
1	630	8.212
3	50	4500
3	70	5500
3	95	6500
3	120	7500
3	150	8500
3	185	10000
3	240	13000
3	300	15500
3	400	19000

Get a free quote by e-mail: sales@huadongcablegroup.com

BS 7835 Aluminium AWA/SWA LSZH 3.8/6.6kV Cable Dimension

NO.OF CORES	NOMINAL CROSS SECTIONAL AREA	NOMINAL WEIGHT
NO.OF CORES	mm²	kg/km
1	35	823
1	50	894
1	70	1.034
1	95	1.179
1	120	1.285
1	150	1.508
1	185	1.773
1	240	2.038
1	300	2.357
1	400	2.893
1	500	3.553
1	630	4.164
3	50	3750
3	70	4500
3	95	5000
3	120	5500
3	150	6000
3	185	6750
3	240	8750
3	300	10000
3	400	12000
3	500	14000

Get a free quote by e-mail: sales@huadongcablegroup.com
