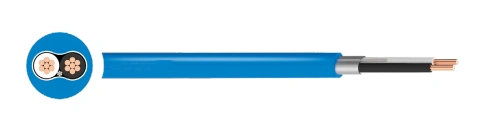

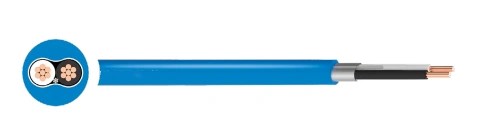

Voltage Rating: 300V
Conductor:
0.5mm² – 0.75mm²: Class 5 flexible copper conductor
1mm² and above: Class 2 stranded copper conductor
Insulation: XLPE
Collective Screen: Al/PET (Aluminium/Polyester Tape)
Drain Wire: Tinned copper
Sheath: XLPE or PVC ; – UV Resistant
Core Identification
Pairs: White Black, numbered
Triples: White Black Red
Outer Sheath Colour: Blue Black
Note: 500V rated cables available on request
Application
These cables are designed to connect electrical instrument circuits and provide communication services in and around process plants (e.g. petrochemical industry etc.). Not suitable for direct burial applications. For installations where fire, smoke emissions and toxic fumes create a potential risk to life and equipment.

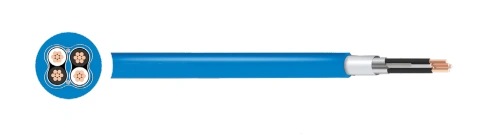

Voltage Rating: 300V
Conductor:
0.5mm² – 0.75mm²: Class 5 flexible Copper
1mm² and above: Class 2 stranded Copper
Insulation: XLPE (Cross-Linked Polyethylene)
Individual and Collective Screen: Al/PET (Aluminium/Polyester Tape)
Drain Wire: Tinned copper
Sheath: XLPE or PVC ; – UV Resistant
Core Identification
Pairs: White Black, numbered
Triples: White Black Red
Outer Sheath Colour: Blue Black
Note: 500V rated cables available on request
Application
These cables are designed to connect electrical instrument circuits and provide communication services in and around process plants (e.g. petrochemical industry etc.). Pairs are individually shielded for enhanced signal security. Not suitable for direct burial applications. For installations where fire, smoke emissions and toxic fumes create a potential risk to life and equipment.

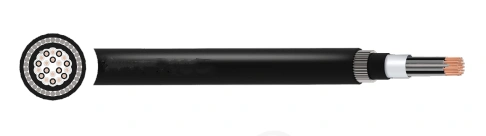

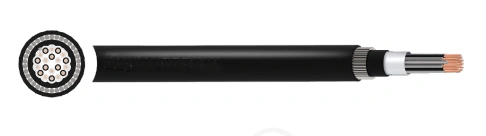

Voltage Rating: 300V
Conductor:
0.5mm² – 0.75mm²: Class 5 flexible Copper
1mm² and above: Class 2 stranded Copper
Insulation: XLPE (Cross-Linked Polyethylene)
Collective Screen: Al/PET (Aluminium/Polyester Tape)
Drain Wire: Tinned copper
Inner Sheath: LSZH (Low Smoke Zero Halogen)
Armour: SWA (Galvanised steel wires)
Sheath: XLPE or PVC ; – UV Resistant
Core Identification
Pairs: White Black, numbered
Triples: White Black Red
Outer Sheath Colour: Blue Black
Note: 500V rated cables available on request
Application
These cables are designed to connect electrical instrument circuits and provide communication services in and around process plants (e.g. petrochemical industry etc.). Suitable for direct burial applications. For installations where fire, smoke emissions and toxic fumes create a potential risk to life and equipment.

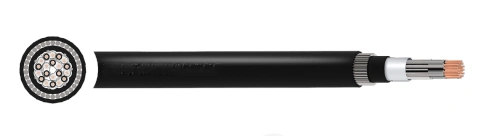

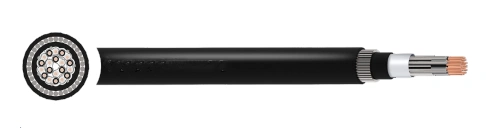

Voltage Rating: 300V
Conductor:
0.5mm² – 0.75mm²: Class 5 flexible Copper
1mm² and above: Class 2 stranded Copper
Insulation: XLPE (Cross-Linked Polyethylene)
Individual and Collective Screen: Al/PET (Aluminium/Polyester Tape)
Drain Wire: Tinned copper
Inner Sheath: LSZH (Low Smoke Zero Halogen)
Armour: SWA (Galvanised steel wires)
Sheath: XLPE or PVC ; – UV Resistant
Core Identification
Pairs: White Black, numbered
Triples: White Black Red
Outer Sheath Colour: Blue Black
Note: 500V rated cables available on request
Application
These cables are designed to connect electrical instrument circuits and provide communication services in and around process plants (e.g. petrochemical industry etc.). Pairs are individually shielded for enhanced signal security to prevent cross-talk within cable. Suitable for direct burial applications. For installations where fire, smoke emissions and toxic fumes create a potential risk to life and equipment.
Cable naming convention
| Abbreviation | Description |
| RE | Instrumentation Cable – Flexible |
| 2x | Cross linked Polyethylene |
| H | Low smoke zero halogen |
| Y | PVC |
| 2Y | Polyethylene |
| (st) | Overall screen |
| PiMF | Pairs in metal foil (individual screen) |
| Q | Galvanised steel wire braid |
| SWA(H/Y) | Steel wire armour (with LSZH or PVC outer sheath) |
