BS5467 0.6/1kV and 1.9/3.3kV XLPE Thermosetting Insulated Armoured Cables

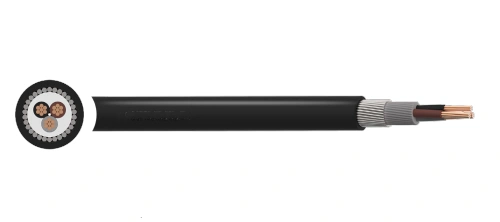

BS 5467 Copper Conductor Multi Core SWA PVC 0.6/1kV Cable

APPLICATION: Multi-core PVC cable with steel wire armour (SWA). Power and auxiliary fixed wiring cables for use in power networks, underground, outdoor and indoor applications and for use in cable ducting.

Voltage Rating Uo/U: 0.6/1kV
Temperature Rating: Fixed: -25°C to +90°C
Conductor: Class 2 stranded copper conductor
Insulation: XLPE
Bedding: PVC
Armour: SWA (Steel Wire Armour)
Sheath: PVC

BS 5467 Copper Conductor Multi Core SWA PVC 1.9/3.3kV Cable

APPLICATION: Multi-core PVC cable with steel wire armour (SWA). This cable is suitable for direct burial free-draining soil conditions for fixed indoor and outdoor installations.

Voltage Rating Uo/U: 1.9/3.3kV
Temperature Rating:
Maximum Operating: +90ºC
Maximum Short-Circuit: +250°C
Conductor: Class 2 stranded copper
Insulation: XLPE
Separator: Polyester Tape
Filler: PVC
Armour: SWA (Galvanized Steel Wire Armour)
Outer Sheath: PVC

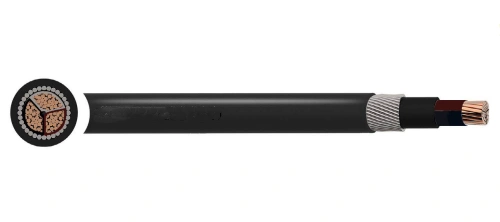

BS 5467 Sectoral Shaped Copper Conductor Multi Core SWA 1.9/3.3kV Cable

APPLICATION: Power and auxiliary control cables for use in power networks, underground in free-draining soil, outdoor and indoor applications and for use in cable ducting.

Voltage Rating Uo/U: 1.9/3.3kV
Temperature Rating:
Maximum Operating: +90ºC
Maximum Short-Circuit: +250°C
Conductor: Class 2 sectoral shaped stranded copper
Insulation: XLPE
Separator: Polyester Tape
Filler: PVC
Armour: SWA (Galvanised steel wire armour)
Outer Sheath: PVC

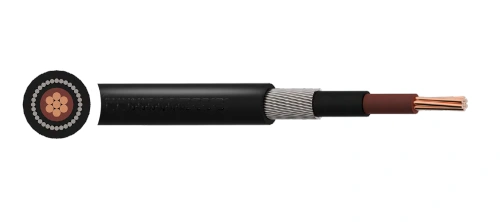

BS 5467 Copper Conductor Single Core AWA PVC 0.6/1kV Cable

APPLICATION: Single core PVC cable with aluminium wire armour (AWA). Power and auxiliary fixed wiring cables for use in power networks, underground, outdoor and indoor applications and for use in cable ducting.

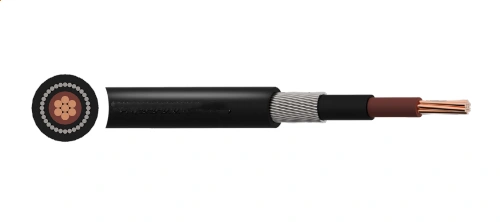

BS 5467 Copper Conductor Single Core AWA PVC 1.9/3.3kV Cable

APPLICATION: Single core PVC cable with aluminium wire armour (AWA). Power and auxiliary control cables for use in power networks, underground in free-draining soil, outdoor and indoor applications and for use in cable ducting.

Voltage Rating Uo/U: 1.9/3.3kV
Temperature Rating:
Maximum Operating: +90ºC
Maximum Short-Circuit: +250°C
Conductor: Class 2 circular stranded copper
Insulation: XLPE
Separator: Polyester Tape
Filler: PVC
Armour: AWA (Aluminium Wire Armour)
Outer Sheath: PVC

BS 5467 Copper Conductor Multi Core SWA PVC BASEC 0.6/1kV Cable Dimension

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA	NOMINAL WEIGHT	NO. OF CORES	NOMINAL CROSS SECTIONAL AREA	NOMINAL WEIGHT
NO. OF CORES	mm2	kg/km	NO. OF CORES	mm2	kg/km
2	1.5	302	4	6	764
2	2.5	346	4	10	1013
2	4	410	4	16	1360
2	6	499	4	25	2160
2	10	648	4	35	2690
2	16	978	4	50	3130
2	25	1290	4	70	4500
2	35	1500	4	95	5600
2	50	1890	4	120	7400
2	70	2450	4	150	8780
2	95	3300	4	185	10630
2	120	4020	4	240	13390
2	150	4750	4	300	16290
3	1.5	330	4	400	19800
3	2.5	390	5	1.5	410
3	4	464	5	2.5	470
3	6	568	5	4	710
0	10	866	5	6	876
3	16	1152	5	10	1165
3	25	1800	5	16	1742
3	35	2230	5	25	2323
3	50	2490	5	35	2932
3	70	3290	5	50	4192
3	95	4440	7	1.5	470
3	120	5470	7	2.5	600
3	150	6930	7	4	881
3	185	8350	12	1.5	780
3	240	10400	12	2.5	1000
3	300	12600	19	1.5	1000
3	400	14600	19	2.5	1540
4	1.5	365	27	1.5	1500
4	2.5	438	27	2.5	1950
4	4	532	37	1.5	1800
4	4	532	37	2.5	2350

Get a free quote by e-mail: sales@huadongcablegroup.com

BS 5467 Copper Conductor Multi Core SWA PVC 1.9/3.3kV Cable Dimension

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA	NOMINAL WEIGHT
NO. OF CORES	mm2	kg/km
3	10	1545
3	16	1680
3	25	2100
3	35	2530

Get a free quote by e-mail: sales@huadongcablegroup.com

BS 5467 Sectoral Shaped Copper Conductor Multi Core SWA 1.9/3.3kV Cable Dimension

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA	NOMINAL WEIGHT
NO. OF CORES	mm2	kg/km
3	35	35
3	50	50
3	70	70
3	95	95
3	120	120
3	150	150
3	185	185
3	240	240
3	300	300

Get a free quote by e-mail: sales@huadongcablegroup.com

BS 5467 Copper Conductor Single Core AWA PVC 0.6/1kV Cable Dimension

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA	NOMINAL WEIGHT
NO. OF CORES	mm2	kg/km
1	50	800
1	70	960
1	95	1240
1	120	1510
1	150	1900
1	185	2320
1	240	2930
1	300	3580
1	400	4600
1	500	5770
1	630	7250
1	800	9381
1	1000	11540

Get a free quote by e-mail: sales@huadongcablegroup.com

BS 5467 Copper Conductor Single Core AWA PVC 1.9/3.3kV Cable Dimension

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA	NOMINAL WEIGHT
NO. OF CORES	mm2	kg/km
1	50	956
1	70	1201
1	95	1499
1	120	1936
1	150	2254
1	185	2650
1	240	3280
1	300	3938
1	400	5090
1	500	6255
1	630	7809

Get a free quote by e-mail: sales@huadongcablegroup.com
