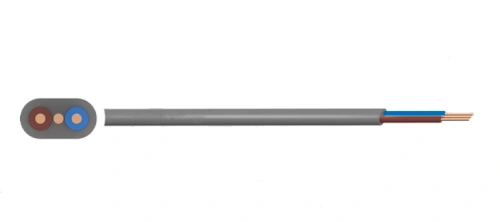

BS 6004 624-Y Twin and Earth PVC Cable
APPLICATION: Domestic wiring cable. Suitable for laying in conduit or trunking where mechanical protection is required.
Voltage Rating Uo/U: 300/500V
Temperature Rating: -5°C to +70°C
Conductor:
RE: 1mm² to 2.5mm²: Class 1 solid copper
RM: 4mm² to 16mm²: Class 2 stranded copper
Circuit Protection Conductor (Earth):
1mm² to 2.5mm²: Class 1 solid copper
4mm² to 16mm²: Class 2 stranded copper
Insulation: PVC (Polyvinyl Chloride)
Sheath: PVC (Polyvinyl Chloride)

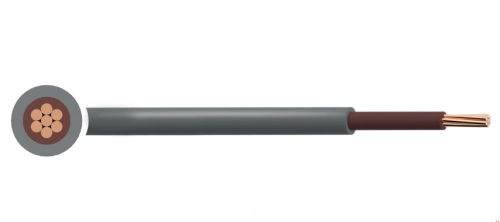

6181Y / BS 6004 Cable
APPLICATION: Fixed installation in dry or damp areas for domestic and light industrial wiring. Also used in connection to (smart)meters
Voltage Rating Uo/U: 300/500V
Temperature Rating Fixed: -15°C to +70°C
Conductor:
1mm² to 2.5mm²: Class 1 solid copper conductor
4mm² to 25mm²: Class 2 stranded copper conductor
Insulation: PVC (Polyvinyl Chloride)
Sheath: PVC (Polyvinyl Chloride)

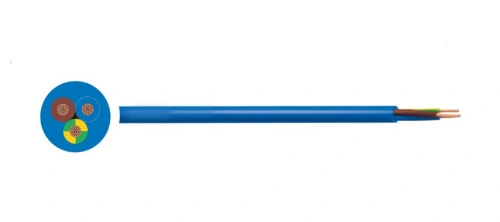

318-A / BS 6004 Arctic Grade Cable
APPLICATION: Arctic grade PVC cords manufactured to BS 6004 are designed to withstand severe external temperatures and will remain flexible at temperatures down to -40°C. Making them particularly suitable for outdoor applications and for use where flexibility is required at sub zero temperatures.
Voltage Rating Uo/U: 300/500V
Temperature Rating Fixed: -40°C to +60°C
Conductor: Class 5 flexible copper conductor
Insulation: Arctic grade PVC (Polyvinyl Chloride)
Sheath: Arctic grade PVC (Polyvinyl Chloride)
| BS 6004 624-Y Twin and Earth PVC Cable | ||
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA | NOMINAL WEIGHT |
| mm2 | kg/km | |
| 2 | 1 | 68 |
| 2 | 1.5 | 87 |
| 2 | 2.5 | 120 |
| 2 | 4 | 172 |
| 2 | 6 | 235 |
| 2 | 10 | 373 |
| 2 | 16 | 530 |
| 3 | 1 | 91 |
| 3 | 1.5 | 115 |
| 6181Y / BS 6004 Cable | ||
| NOMINAL CROSS SECTIONAL AREA | NOMINAL THICKNESS OF CONDUCTOR | NOMINAL WEIGHT |
| mm2 | mm | kg/km |
| 1 | 1.13 | 28 |
| 1.5 | 1.38 | 34 |
| 2.5 | 1.76 | 49 |
| 4 | 2.5 | 75 |
| 6 | 3 | 99 |
| 10 | 3.85 | 155 |
| 16 | 4.8 | 225 |
| 25 | 5.9 | 340 |
| 318-A / BS 6004 Arctic Grade Cable | ||
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA | NOMINAL WEIGHT |
| mm2 | kg/km | |
| 2 | 0.75 | 55 |
| 2 | 1 | 61 |
| 2 | 1.5 | 83 |
| 2 | 2.5 | 130 |
| 2 | 4 | 176 |
| 2 | 6 | 73 |
| 3 | 1 | 105 |
| 3 | 1.5 | 163 |
| 3 | 2.5 | 224 |
| 3 | 4 | 299 |
| 3 | 6 | 299 |
