BS6622 3.8/6.6kV to 19/33kV Armoured Cables

APPLICATION

Power cables for power networks, underground and in cable ducting. Suitable for direct burial.

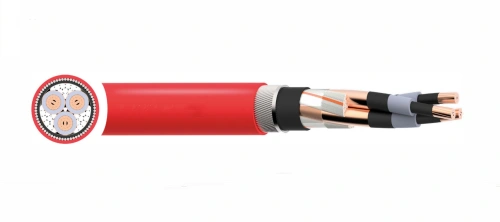

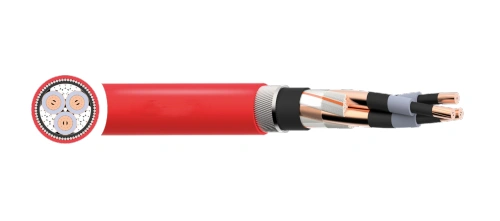

BS 6622 CU XLPE AWA/SWA PVC Cable 6.35/11 (12)kV

Voltage: 6.35/11 (12)kV
Conductor: Class 2 Stranded Circular Compacted Copper
Conductor Screen: Extruded Inner Semi Conductor (Bonded Type)
Insulation: XLPE
Outer Semi Conductor: Extruded Outer Semi Conductor (Strippable Type)
Metallic Screen: Copper tape with 1 0% overlap
Inner Sheath: PVC
Armour:
Single core: AWA (Aluminium Wire Armoured)
Multi-core: SWA (Galvanised Steel Wire Armoured)
Outer Sheath: PVC

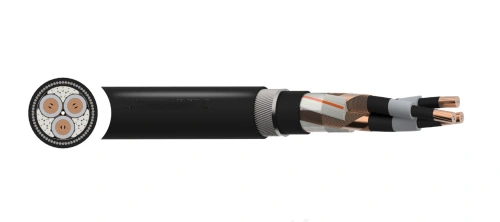

BS 6622 XLPE MDPE 6.35/11 (12)kV Cable

Voltage: 6.35/11 (12)kV
Conductor: Class 2 stranded copper conductor
Conductor Screen: Semi-conductive XLPE
Insulation: XLPE
Insulation Screen: Semi-conductive XLPE
Separator: Water blocking tape
Insulation Screen: Semi-conductive XLPE
Metallic Screen: Individual copper wire screen
Filler: PET fibres
Separator: Binding tape
Bedding: PVC (Polyvinyl Chloride)
Armour: SWA (Steel Wire Armoured)
Sheath: MDPE (Medium Density Polyethylene)

BS 6622 XLPE/PVC Medium Voltage 19/33 (36)kV Cable

Voltage: 19/33 (36)kV
Conductor: Class 2 stranded copper conductor
Conductor Screen: Semi-conductive XLPE
Insulation: XLPE
Insulation Screen: Semi-conductive XLPE
Metallic Screen: Individual or collective overall copper tape screen
Filler: PET fibres
Separator: Binding tape
Bedding: PVC
Armour:
Single core: AWA (Aluminium Wire Armoured)
Multi-core: SWA (Steel Wire Armoured)
Sheath: PVC

BS 6622 CU XLPE AWA/SWA PVC 3.8/6.6kV Cable

Voltage: 3.8/6.6 (7.2) kV
Conductor: Class 2 Stranded Circular Compacted Copper
Conductor Screen: Extruded Inner Semi Conductor (Bonded Type)
Insulation: XLPE
Outer Semi Conductor: Extruded Outer Semi Conductor (Strippable Type)
Metallic Screen: Copper tape with 10% overlap
Inner Sheath: PVC (Polyvinyl Chloride)
Armour:
Single core: AWA (Aluminium Wire Armoured)
Multi-core: SWA (Steel Wire Armoured)
Outer Sheath: PVC (Polyvinyl Chloride)

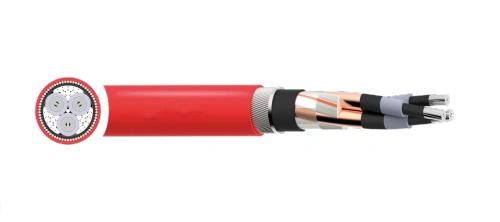

BS 6622 Aluminium AWA/SWA PVC 3.8/6.6kV Cable

Voltage: 3.8/6.6 (7.2)kV
Conductor: Class 2 compacted aluminium conductor
Conductor Screen: Semi-conductive XLPE
Insulation: XLPE
Insulation Screen: Semi-conductive XLPE
Insulation Screen: Concentric copper wires and copper tape
Inner Sheath: PVC
Armour:
Single core: AWA (Aluminium Wire Armoured)
Multi core: SWA (Galvanised steel wire)
Sheath: PVC

BS 6622 XLPE PVC 8.7/15kV Cable

Voltage: 8.7/15 (17.5) kV
Conductor: Class 2 stranded copper conductor
Conductor Screen: Semi-conductive XLPE
Insulation: XLPE
Insulation Screen: Semi-conductive XLPE
Metallic Screen: Individual or collective overall copper tape screen
Filler: PET fibres
Separator: Binding tape
Bedding: PVC
Armour:
Single core: AWA (Aluminium Wire Armoured)
Multi-core: SWA (Steel Wire Armoured)
Sheath: PVC

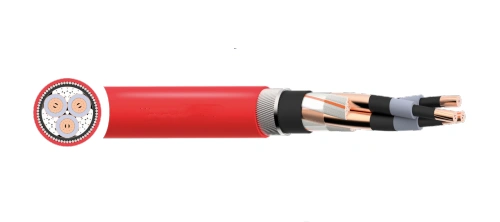

BS 6622 XLPE PVC 12.7/22kV Cable

sales@huadongcablegroup.com

Voltage: 12.7/22 (24) kV
Conductor: Class 2 stranded copper
Conductor Screen: Semi-conductive XLPE
Insulation: XLPE
Insulation Screen: Semi-conductive XLPE
Metallic Screen: Individual or collective overall copper tape screen
Filler: PET fibres
Separator: Binding tape
Bedding: PVC
Armour:
Single core: AWA (Aluminium Wire Armoured)
Multi-core: SWA (Steel Wire Armoured)
Sheath: PVC

BS 6622 CU XLPE AWA/SWA PVC 6.35/11 (12)kV Cable Dimension

NO.OF CORES	NOMINAL CROSS SECTIONAL AREA	NOMINAL WEIGHT
NO.OF CORES	mm²	kg/km
1	70	1424
1	95	1707
1	120	2046
1	150	2363
1	185	2735
1	240	3376
1	300	4012
1	400	5042
1	500	6154
1	630	7718
1	800	9616
3	70	5760
3	95	6732
3	120	779
3	150	8916
3	185	10290
3	240	13367
3	300	15736
3	400	18907

Get a free quote by e-mail: sales@huadongcablegroup.com

BS 6622 XLPE MDPE 6.35/11 (12)kV Cable Dimension

SHEATH COLOUR	NO. OF CORES	NOMINAL CROSS SECTIONAL AREA	NOMINAL WEIGHT
SHEATH COLOUR	NO. OF CORES	mm²	kg/km
Black	3	185	12600
Red	3	185	12600

Get a free quote by e-mail: sales@huadongcablegroup.com

BS 6622 CU XLPE AWA/SWA PVC 6.35/11 (12)kV Cable Dimension

NO.OF CORES	NOMINAL CROSS SECTIONAL AREA	NOMINAL WEIGHT
NO.OF CORES	mm²	kg/km
1	70	2077
1	95	2393
1	120	2692
1	150	3193
1	185	3623
1	240	4309
1	300	4999
1	400	5956
1	500	7107
1	630	878
1	800	10766
3	70	9625
3	95	10827
3	120	12043
3	150	13379
3	185	14800
3	240	17324
3	300	19777
3	400	23228

Get a free quote by e-mail: sales@huadongcablegroup.com

BS 6622 CU XLPE AWA/SWA PVC 3.8/6.6kV Cable Dimension

NO.OF CORES	NOMINAL CROSS SECTIONAL AREA	NOMINAL WEIGHT
NO.OF CORES	mm²	kg/km
1	70	1721
1	95	1996
1	120	2333
1	150	2752
1	185	3388
1	240	4060
1	300	4989
1	400	6269
1	500	7822
1	630	9729
1	800	6765
3	120	7784
3	150	8989
3	185	10285
3	240	12617
3	300	15947
3	400	19403

Get a free quote by e-mail: sales@huadongcablegroup.com

BS 6622 Aluminium AWA/SWA PVC 3.8/6.6kV Cable Dimension

NO.OF CORES	NOMINAL CROSS SECTIONAL AREA	NOMINAL WEIGHT
NO.OF CORES	mm²	kg/km
1	35	823
1	50	894
1	70	1.034
1	95	1.179
1	120	1.285
1	150	1.508
1	185	1.773
1	240	2.038
1	300	2.357
1	400	2.893
1	500	3.553
1	630	4.164
3	50	3750
3	70	4500
3	95	5000
3	120	5500
3	150	6000
3	185	6750
3	240	8750
3	300	10000
3	400	12000
3	500	14000

BS 6622 XLPE PVC 8.7/15kV Cable Dimension

NO.OF CORES	NOMINAL CROSS SECTIONAL AREA	NOMINAL WEIGHT
NO.OF CORES	mm²	kg/km
1	50	1400
1	70	1700
1	95	2100
1	120	2350
1	150	2700
1	185	3200
1	240	3750
1	300	4600
1	400	5500
1	500	6750
1	630	8200
3	50	5500
3	70	6500
3	95	7600
3	120	8600
3	150	10500
3	185	11900
3	240	14200
3	300	16600
3	400	19700
3	500	23600

BS 6622 XLPE PVC 8.7/15kV Cable Dimension

NO.OF CORES	NOMINAL CROSS SECTIONAL AREA	NOMINAL WEIGHT
NO.OF CORES	mm²	kg/km
1	70	1717
1	95	2013
1	120	2318
1	150	2646
1	185	3048
1	240	3688
1	300	4515
1	400	5430
1	500	6593
1	630	8162
3	800	10092
3	70	6986
3	95	8072
3	120	10002
3	150	11266
3	185	12665
3	240	15126
3	300	17436
3	400	20706

Get a free quote by e-mail: sales@huadongcablegroup.com
