Rated voltage: 450/750V
Conductor: Copper solid class 1(RE);
Insulation: Polyvinyl PVC;
Sheath: Polyvinyl PVC;
Core identification:
2-core blue, brown
3-core green-yellow, blue, brown
3-core brown, black, grey
4-core green-yellow, brown, black, grey
4-core green-yellow, blue, brown, black
4-core blue, brown, black, grey
5-core green-yellow, blue, brown, black, grey
5-core blue, brown, black, grey, black
Working temperature: -40ºC up to +70ºC

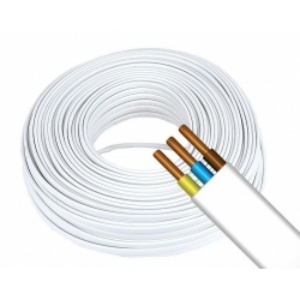

Rated voltage: 450/750V
Number of wires: 3 single-wire (brown, blue, yellow-green)
Core diameter: 2.5mm
Core material: copper
Insulation: insulating PVC
Insulation color: white
Tire: PVC tire
Permissible operating temperature: -40ºC up to +70ºC
Rated voltage: 450/750V
Conductor: Copper solid class 1(RE);
Insulation: Polyvinyl PVC
Sheath: Polyvinyl PVC
Core identification:
2-core blue, brown
3-core green-yellow, blue, brown
3-core brown, black, grey
4-core green-yellow, brown, black, grey
4-core green-yellow, blue, brown, black
4-core blue, brown, black, grey
5-core green-yellow, blue, brown, black, grey
5-core blue, brown, black, grey, black
Working temperature: -40ºC up to +70ºC
Rated voltage: 450/750V
Conductor: Copper solid class 1(RE);
Insulation: Polyvinyl PVC
Sheath: Polyvinyl PVC
Core identification:
2-core blue, brown
3-core green-yellow, blue, brown
3-core brown, black, grey
4-core green-yellow, brown, black, grey
4-core green-yellow, blue, brown, black
4-core blue, brown, black, grey
5-core green-yellow, blue, brown, black, grey
5-core blue, brown, black, grey, black
Working temperature: -40ºC up to +70ºC

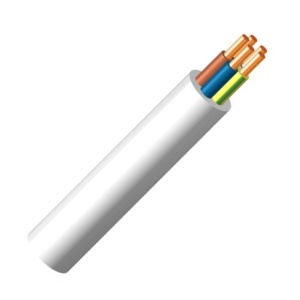

Conductor class: class 1 = single-wire
Core material: copper (CU)
Core identification: color
Insulation color: white
Protective barrier: Al / PE (aluminum/polyethylene)
Permissible temperature of permanently installed cable: from -40°C
Permissible temperature of permanently installed cable: up to 70°C
Maximum core temperature: 70°C
Number of veins: 5
Rated voltage U0: 450 V
Rated conductor cross-section: 6 mm2
Core diameter: 0 mm
Core insulation: PVC
Outer shell material: PVC
Approximate cable weight: 502 kg/km
Rated voltage U: 750 V
Approximate outer diameter: 16.9000 mm
Insulation strength (durability): FE 180
Conductors: solid copper, class 1 (RE)
Insulation: PVC PVC
Coating: PVC PVC
Minimum ambient temperature for permanently installed cables: -30°C
Minimum ambient temperature when laying cables: -5°C
Maximum wire temperature during short circuit: +160°C

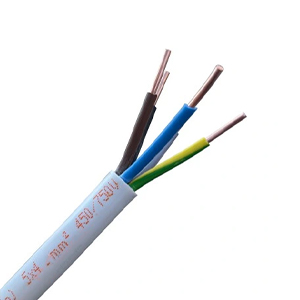

Rated voltage: 450/750V
Core cross-section: 4 mm2
Number of veins: 5
Core material: copper wire. class 1
Insulation material: PVC (Y)
Shell material: PVC (Y)
