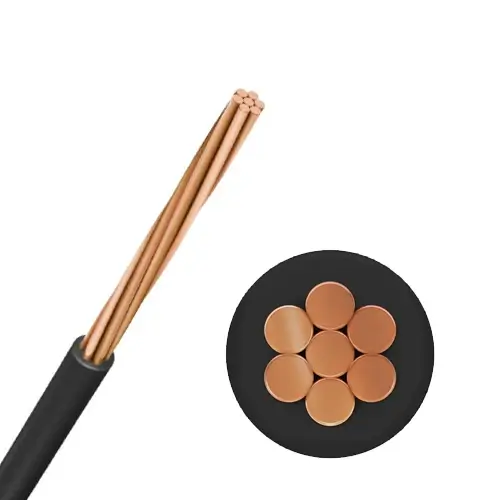

Description:
Single copper conductor, stranded and insulated with black high molecular weight/linear low density polyethylene (HMW-PE/LLD-PE).
Application:
Suitable for direct burial for use in cathodic protection systems for pipelines, storage tanks, pilings, well casings, cables, water storage tanks, and other buried or water-submerged metallic structures.
Standards:
ASTM standards: B-3 (soft or annealed),
B-8 (concentric lay stranded), D-1248
ICEA S-70-547/NEMA WC-5
Temperature Rated at 75°C Wet/Dry
Sunlight Resistant
Direct Burial
RoHS Compliant

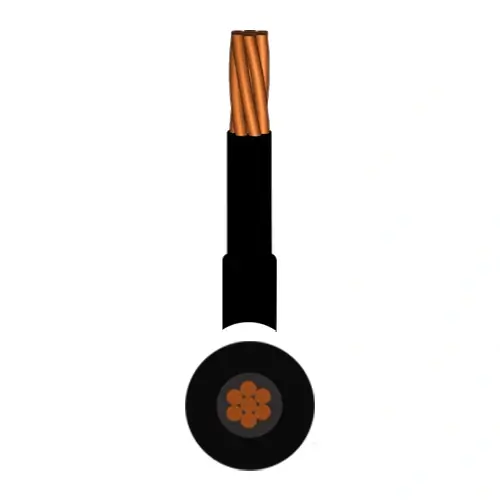

Description:
The single core armoured cable is designed for use in cathodic protection groundbeds where the evolution of chlorine gas is expected. PVDF has excellent resistance to chemical attack. HWMPE Cable is available from 6mm2 – 95mm2.
Construction
Voltage: 600/1000 Volts
Temperature Range: -55°C to +105°C
Conductor: Class 2 stranded copper
Insulation: Polyvinylidene fluoride (PVDF)
Sheath: High-Molecular Weight Polyethylene (HMWPE)
Standards:
IEC 60502
BS EN/IEC 60228
| Cross Section(mm2) | Nominal Overall Diameter(mm) | Approximate Weight(kg / km) |
| 1×10 | 11,50 | 215 |
| 1×16 | 13,00 | 296 |
| 1×25 | 15,60 | 429 |
| 1×35 | 16,50 | 531 |
| 1×50 | 17,80 | 674 |
| 1×70 | 19,70 | 880 |
| 1×95 | 22,10 | 1130 |
