5/8kV – CCW Armored Power, Shielded, 3/C VFD
1. Variable Frequency Drives: 3-conductor CCW armored cables with 3 symmetrical grounding wire are the preferred wiring method for use with AC motors controlled by pulsewidth modulated inverters in VFD applications
2. For use in feeders and branch circuits in industrial power distribution systems per NEC articles 328 and 330
3. Approved for Classes I, II and III, Divisions 1 and 2; and Class I, Zones 1 and 2, hazardous locations covered under NEC Articles 501, 502, 503 and 505 Installed on metal racks, troughs, in raceways, in cable trays or secured to supports spaced no more than 6 feet apart
4. Installed in both exposed and concealed work, wet or dry locations, directly buried or embedded in concrete
Category Conductor Description: Bare annealed copper per ASTM B3 Compact stranding per ASTM B496
Extruded Strand Shield: Extruded thermoset semi-conductor stress control layer over conductor per ICEA S-93-639 and UL 1072
Category Insulation Description: Ethylene Propylene Rubber (EPR)
Grounding Conductor: Three split Class B stranded bare annealed copper grounding conductors Sized in accordance with UL 1072 and NEC Article 250
Armor: Impervious, continuously welded and corrugated aluminum alloy sheath
Category Jacket Description: Flame-retardant, moisture and sunlight resistant Polyvinyl Chloride (PVC), yellow Low temperature performance meets ASTM D746 brittleness temperature at or below 40°C
Standards: UL 1072 UL 1569 UL 2225 UL 1309 IEEE 1202 available upon request
15kV – CCW Armored Power, 133%, Shielded, 3/C
1. For use in feeders and branch circuits in industrial power distribution systems per NEC articles 328 and 330
2. Approved for Classes I, II and III, Divisions 1 and 2; and Class I, Zones 1 and 2, hazardous locations covered under NEC Articles 501, 502, 503 and 505
3. Installed on metal racks, troughs, in raceways, in cable trays or secured to supports spaced no more than 6 feet apart Installed in both exposed and concealed work, wet or dry
Category Conductor Description: Bare annealed copper per ASTM B3 Compact stranding per ASTM B496
Extruded Strand Shield: Extruded thermoset semi-conductor stress control layer over conductor per ICEA S-93-639 and UL 1072
Category Insulation Description: Ethylene Propylene Rubber (EPR)
Extruded Insulation Shield: Thermoset semi-conducting polymeric layer, free stripping from the insulation per ICEA S-93-639 and UL 1072
Grounding Conductor: Class B stranded bare annealed copper grounding conductor Sized in accordance with UL 1072 and NEC Article 250
Shield: 5 mil annealed bare copper tape with 25% overlap Color coded polymeric identification tape laid under the shield: Black, Red, & Blue
Armor: Impervious, continuously welded and corrugated aluminum alloy sheath
Category Jacket Description: Flame-retardant, moisture and sunlight resistant Polyvinyl Chloride (PVC), red Low temperature performance meets ASTM D746 brittleness temperature at or below 40°C
Standards: UL 1072 UL 1569 UL 2225 UL 1309 IEEE 1202 available upon request

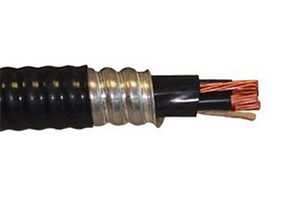

CCW Armored Power, 4/C
1. For use as services, feeders and branch circuits for power, lighting, control, and signal circuits in accordance with NEC articles 330 and 725
2. Class I, II and III, Divisions 1 and 2; Class I, Zones 1 and 2 hazardous locations per NEC articles 501, 502, 503, and 505
3. Installed indoors or outdoors, wet or dry locations, direct buried, embedded in concrete, in a raceway, as aerial on a messenger, or as exposed runs secured to supports in accordance with NEC article 330
Category Conductor Description: Bare, annealed copper per ASTM B-3 Compact stranding per ASTM B496
Category Insulation Description: Cross-linked Polyethylene (XLPE) type XHHW per UL 44, listed XHHW-2
Spec Ground: Class B stranded bare annealed copper per ASTM B3 and B8
Armor: Impervious, continuously welded and corrugated aluminum alloy sheath per UL 1569 and UL 2225
Category Jacket Description: Flame retardant, moisture and sunlight resistant Polyvinyl Chloride (PVC)
CCW Armored Composite Power and Control
1. For use as services, feeders and branch circuits for power, lighting, control, and signal circuits in accordance with NEC articles 330 and 725
2. Class I, II and III, Divisions 1 and 2; Class I, Zones 1 and 2 hazardous locations per NEC articles 501, 502, 503, and 505
3. Installed indoors or outdoors, wet or dry locations, direct buried, embedded in concrete, in a raceway, as aerial on a messenger, or as exposed runs secured to supports in accordance with NEC article 330
4. Recognized for use on fixed or floating offshore petroleum facilities as recommended by the American Petroleum Institute
Category Conductor Description: Bare, annealed copper conforming to ASTM B-3 10AWG and smaller are Class B compressed stranding per ASTM B8 8AWG and larger are compact stranding per ASTM B496
Category Insulation Description: Cross-linked Polyethylene (XLPE) type XHHW per UL 44, listed XHHW-2
Grounding Conductor: Class B stranded bare annealed copper per ASTM B3 and B8
CCW Armor: Impervious, continuously welded and corrugated aluminum alloy sheath
Category Jacket Description: Black, flame retardant, moisture and sunlight resistant Polyvinyl Chloride (PVC)
Standards: UL Type MC-HL, XHHW-2 UL listed Marine Shipboard UL 44, 1309, 1569, 1581, and 2225 IEEE 1202 available upon request
2.4kV – CCW Armored Power, Nonshielded, 3/C VFD
1. Variable Frequency Drives: 3-conductor CCW armored cables with 3 symmetrical grounding wire are the preferred wiring method for use with AC motors controlled by pulsewidth modulated inverters in VFD applications
2. For use in feeders and branch circuits in industrial power distribution systems per NEC articles 328 and 330
3. Approved for Classes I, II and III, Divisions 1 and 2; and Class I, Zones 1 and 2, hazardous locations covered under NEC Articles 501, 502, and 503
4. Installed on metal racks, troughs, in raceways, in cable trays or secured to supports spaced no more than 6 feet apart
5. Installed in both exposed and concealed work, wet or dry locations, directly buried or embedded in concrete
Category Conductor Description: Bare annealed copper per ASTM B3 Compact stranding per ASTM B496
Extruded Strand Shield: Extruded thermoset semi-conductor stress control layer over conductor per ICEA S-96-659 and UL 1072
Category Insulation Description: 90 mils Ethylene Propylene Rubber (EPR) per ICEA S-96-659 and UL 1072 Insulation is printed 1-Black, 2-Red, and 3-Blue for phase identification
Grounding Conductor: Three split Class B stranded bare annealed copper grounding conductors Sized in accordance with UL 1072 and NEC Table 250.122
Armor: Continuous, impervious, welded, corrugated aluminum armor
Category Jacket Description: Flame-retardant, moisture and sunlight resistant Polyvinyl Chloride (PVC), yellow Low temperature performance meets ASTM D746 brittleness temperature at or below 40°C
