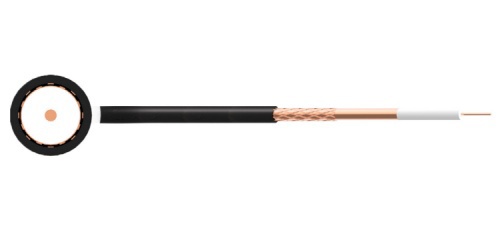

Model:
CT100 FPE PVC, CT100 FPE LSZH, CT100 CPE PVC, CT100 FPE PE, CT100 FPE SHOTGUN, CT125 FPE PVC, CT125 CPE PVC, CT125 FPE RBS, CT167 FPE LSZH, CT167 FPE PE, CT233 FPE LSZH
Voltage Rating: 30V
Temperature Rating: +70ºC; Shotgun and RBS types: +60ºC; CT167 FPE PE: +80ºC
Conductor: Class 1 solid copper
Insulation: FPE (Foam Polyethylene); CPE (Cell Polyethylene)
Screen 1: Copper tape longitudinally overlapped
Screen 2: CCA (Copper Clad Aluminium)
Sheath: PVC & LSZH & PE & PP
Sheath Colour: Black
STANDARDS: EN 50117-1; Flame Retardant according to IEC/EN 60332-3-10, IEC/EN 60332-1-2
APPLICATION: Ideal for professional TV and CCTV system installations including digital, satellite, terrestrial and cable TV.

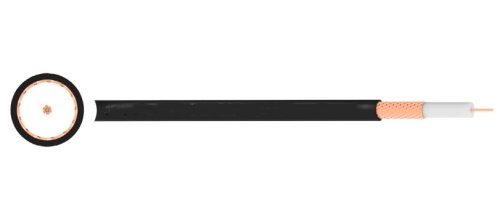

Model:
RG6, RG11, RG58, RG 59, RG59 Shotgun, RG179 and RG213
Voltage Rating: 30V
Temperature Rating: -20°C to +75ºC
Conductor: RG6 / RG11 / RG59: CCS (Copper Clad Steel); RG58 / RG179: TCW (Tinned Copper Wire); RG59 Shotgun: CCA (Copper Clad Aluminium); RG213: Plain Copper
Insulation: RG6 / RG11 / RG 179: FPE; RG58 / RG59 / RG59 Shotgun / RG213: PE
Shield:RG6: Aluminium foil
Braiding: RG6 / RG59 / RG59 Shotgun: CCA ; RG58: TCWB
Sheath: RG6 / RG11 / RG58 / RG59 / RG179 / RG213: PVC; RG59 Shotgun / RG213 LSZH: LSZH
Sheath Colour: Black
STANDARDS: EN 50117-1; Flame Retardant to EN 60332-3-10, IEC/EN 60332-1-2
APPLICATION: cables for high quality RG Type Coaxial cables, 50 or 75 Ohm is suitable for many applications, including low power video, video signal, and broadband signals.
Model: URM67, URM70
Voltage Rating: 30V
Temperature Rating: -20°C to +75ºC
Conductor: Plain Copper Wire
Insulation: PE
Braiding: Copper Wire Braid
Sheath: PVC
Sheath Colour: Black; URM70: Black White
STANDARDS: EN 50117-1; Flame Retardant according to IEC/EN 60332-3-10, IEC/EN 60332-1-2
APPLICATION: High quality URM Type Coaxial cables, with URM67 for 50ohms and URM70 for 75 Ohm impedance, suitable for many applications, including low power video, video signal, and broadband signals. Also available Duct Grade PE or LSZH versions.

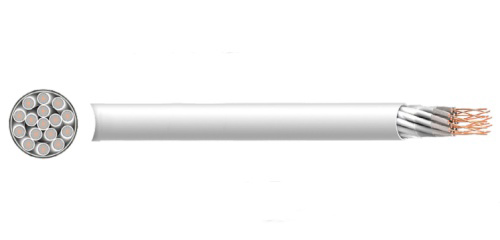

Voltage Rating: 300V
Temperature Rating: Fixed: +80ºC
Conductor: Solid copper conductor
Insulation: PE
Braiding 1: Tinned copper (90%)
Braiding 2: Tinned copper (90%)
Inner Sheath: PVC
Filler: PVC
Outer Sheath: FR-PVC
Sheath Colour: White
STANDARDS: EN 50289, CW 1383
APPLICATION: Manufactured according to BT specifications and used for the interconnection of data or telecoms equipment.

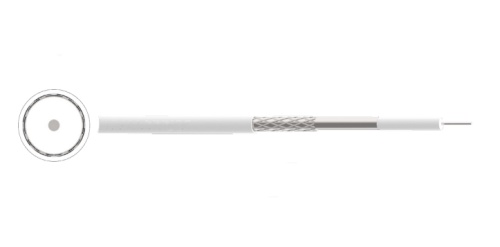

Voltage Rating: 30V
Temperature Rating: +70ºC
Conductor: Tinned copper conductor
Insulation: Foam PE
Shield: Bonded Aluminium PET
Braiding: Tinned copper (93%)
Sheath: LSZH
Sheath Colour: White
STANDARDS: CW 1992
APPLICATION: Manufactured to BT specifications and used for interconnection of data or telecoms equipment.
| CT Coaxial Cable | ||||
| COAXIAL CABLE | NO. OF STRANDS | NOMINAL DIAMETER OF STRANDS mm | NOMINAL DIAMETER OVER INSULATION mm | NOMINAL OVERALL DIAMETER mm |
| CT100 FPE PVC | 1 | 1 | 4.6 | 6.6 |
| CT100 FPE LSZH | 1 | 1 | 4.6 | 6.6 |
| CT100 CPE PVC | 1 | 1 | 4.8 | 6.8 |
| CT100 FPE PE | 1 | 1 | 4.6 | 6.6 |
| CT100 FPE SHOTGUN | 1 (2) | 1 | 4.6 | 6.8 x 13.8 |
| CT125 FPE PVC | 1 | 1.25 | 5.6 | 7.8 |
| CT125 CPE PVC | 1 | 1.25 | 5.5 | 7.8 |
| CT125 FPE RBS | 1 | 1.25 | 5.5 | 9.6 |
| CT167 FPE LSZH | 1 | 1.67 | 7.24 | 10.2 |
| CT167 FPE PE | 1 | 1.65 | 7.28 | 10.1 |
| CT233 FPELSZH | 1 | 2.33 | 10.06 | 13 |
| RG Coaxial Cable | ||||
| COAXIAL CABLE | NO.OF STRANDS | NOMINAL DIAMETER OF STRANDS mm | NOMINAL OVERALL DIAMETER OF INSULATION mm | NOMINAL WEIGHT kg/km |
| RG6 | 1 | 1.02 | 4.6 | 37 |
| RG11 | 7 | 0.4 | 7.24 | 152 |
| RG59 | 1 | 0.58 | 3.7 | 52 |
| RG59 SHOTGUN LSZH CCA | 1 (2) | 0.58 | 3.7 | 91 |
| RG179 | 1 | 0.36 | 1.65 | 15 |
| RG213 PVC | 7 | 0.75 | 7.24 | 57 |
| RG213 LSZH | 7 | 0.75 | 7.25 | 57 |
| RG58PVC | 19 | 0.18 | 2.95 | － |
| URM Coaxial Cable | ||||
| COAXIAL CABLE | NO.OF STRANDS | NOMINAL DIAMETER OF STRANDS mm | NOMINAL OVERALL DIAMETER OF INSULATION mm | NOMINAL WEIGHT kg/km |
| URM67 | 7 | 0.75 | 7.25 | 57 |
| URM70 | 7 | 0.19 | 3.2 | 46 |
| Coaxial BT3002 16 Way / 8 Way Cable | ||||
| COAXIAL CABLE | NO. OF CORES | CONDUCTOR SIZE mm | NOMINAL THICKNESS OF INSULATION mm | NOMINAL OVERALL DIAMETER mm |
| 8 Way | 8 | 75 | 4.8 | 274.2 |
| 16 Way | 16 | 75 | 4.8 | 274.1 |
| Coaxial RA7000 Equivalent Cable | ||||
| NO. OF CORES | CONDUCTOR SIZE mm | NOMINAL THICKNESS OF INSULATION mm | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
| 1 | 1/0.61 | 2.8 | 4.5 | 29 |
