Applications
Coil end leads are used mainly as a flexible connection to coil windings of motors, generators, transformers, circuit breakers and actuators. Also suitable in certain applications instead of tri-rated and bi-rated cables.
Voltage Rating Uo/U:
Type 4A: 300/500V
Type 4C: 0.6/1kV
Type 4D: 1.9/3.3kV
Type 4E: 3.8/6.6kV
Type 4F: 6.35/11kV

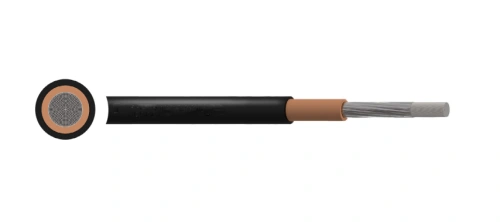

Conductor: Class 5 flexible tinned copper conductor
Separator: PET (Polyester Tape)
Insulation:
4A, 4C: EPR-HOFR (Ethylene Propylene Rubber – Heat and Oil Resistant and Flame Retardant)
4D, 4E, 4F: EPR-HOFR (Ethylene Propylene Rubber – Heat and Oil Resistant and Flame Retardant)
Outer Sheath: CPE (Chlorinated Polyethylene) rubber compound
Sheath Colour: Black
STANDARDS:
BS 6195, EN 60228
Flame Retardant according to IEC/EN 60332-1-2
| CABLE TYPE | NO. OF CORES | VOLTAGE RATING | NOMINAL CROSS SECTIONAL AREA | NOMINAL WEIGHT |
| KV | mm2 | kg/km | ||
| 4A | 1 | 0.3/0.5 | 1.5 | 29 |
| 4A | 1 | 0.3/0.5 | 2.5 | 42 |
| 4A | 1 | 0.3/0.5 | 4 | 61 |
| 4A | 1 | 0.3/0.5 | 6 | 88 |
| 4A | 1 | 0.3/0.5 | 10 | 141 |
| 4C | 1 | 0.6/1 | 1.5 | 34 |
| 4C | 1 | 0.6/1 | 2.5 | 45 |
| 4C | 1 | 0.6/1 | 4 | 70 |
| 4C | 1 | 0.6/1 | 6 | 97 |
| 4C | 1 | 0.6/1 | 10 | 130 |
| 4C | 1 | 0.6/1 | 16 | 190 |
| 4C | 1 | 0.6/1 | 25 | 290 |
| 4C | 1 | 0.6/1 | 35 | 380 |
| 4C | 1 | 0.6/1 | 50 | 510 |
| 4C | 1 | 0.6/1 | 70 | 750 |
| 4C | 1 | 0.6/1 | 95 | 935 |
| 4C | 1 | 0.6/1 | 120 | 1160 |
| 4C | 1 | 0.6/1 | 150 | 1450 |
| 4C | 1 | 0.6/1 | 185 | 1770 |
| 4C | 1 | 0.6/1 | 240 | 2260 |
| 4C | 1 | 0.6/1 | 300 | 2760 |
| 4C | 1 | 0.6/1 | 400 | 3880 |
| 4C | 1 | 0.6/1 | 500 | 4650 |
| 4C | 1 | 0.6/1 | 630 | 6220 |
| 4D | 1 | 1.9/3.3 | 2.5 | 100 |
| 4D | 1 | 1.9/3.3 | 4 | 115 |
| 4D | 1 | 1.9/3.3 | 6 | 141 |
| 4D | 1 | 1.9/3.3 | 10 | 216 |
| 4D | 1 | 1.9/3.3 | 16 | 288 |
| 4D | 1 | 1.9/3.3 | 25 | 392 |
| 4D | 1 | |1.9/3.3 | 35 | 509 |
| 4D | 1 | 1.9/3.3 | 50 | 682 |
| 4D | 1 | 1.9/3.3 | 70 | 894 |
| 4D | 1 | 1.9/3.3 | 95 | 1168 |
| 4D | 1 | 1.9/3.3 | 120 | 1433 |
| 4D | 1 | 1.9/3.3 | 150 | 1734 |
| 4D | 1 | 1.9/3.3 | 185 | 2073 |
| 4D | 1 | 1.9/3.3 | 240 | 2657 |
| 4D | 1 | 1.9/3.3 | 300 | 3279 |
| 4D | 1 | 1.9/3.3 | 400 | 4229 |
| 4E | 1 | 3.8/6.6 | 16 | 408 |
| 4E | 1 | 3.8/6.6 | 25 | 527 |
| 4E | 1 | 3.8/6.6 | 35 | 656 |
| 4E | 1 | 3.8/6.6 | 50 | 832 |
| 4E | 1 | 3.8/6.6 | 70 | 1053 |
| 4E | 1 | 3.8/6.6 | 95 | 1304 |
| 4E | 1 | 3.8/6.6 | 120 | 1634 |
| 4E | 1 | 3.8/6.6 | 150 | 1894 |
| 4E | 1 | 3.8/6.6 | 185 | 2242 |
| 4E | 1 | 3.8/6.6 | 240 | 2842 |
| 4F | 1 | 6.35/11 | 25 | 764 |
| 4F | 1 | 6.35/11 | 35 | 911 |
| 4F | 1 | 6.35/11 | 50 | 1114 |
| 4F | 1 | 6.35/11 | 70 | 1344 |
| 4F | 1 | 6.35/11 | 95 | 1610 |
| 4F | 1 | 6.35/11 | 120 | 1919 |
| 4F | 1 | 6.35/11 | 150 | 2248 |
| 4F | 1 | 6.35/11 | 185 | 2616 |
| 4F | 1 | 6.35/11 | 240 | 3252 |
