SY control cables are not suitable for fixed wiring applications requiring compliance with the regulations set out in BS7671.

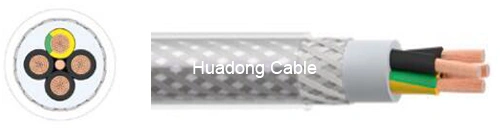

SY PVC Control Flexible Cable
Construction:
Conductor: Class 5 flexible copper conductor
Insulation: PVC (Polyvinyl Chloride) Type TI2
Bedding: PVC (Polyvinyl Chloride) Type TM2
Braiding: GSWB (Galvanized Steel Wire Braid) minimum coverage of braiding shall be 50%
Sheath: PVC (Polyvinyl Chloride) Type TM2
Character:
Voltage Rating: (Uo/U) 300/500V
Temperature Rating: -15ºC to +70°C
Minimum Bending Radius: 10 x overall diameter
Core Identification:
2 core: Blue Brown
3 core: Blue Brown Green/Yellow
4 core: Brown Black Grey Green/Yellow
5 core: Blue Brown Black Grey Green/Yellow
Sheath Colour: Transparent
Get a free quote by e-mail: sales@huadongcablegroup.com

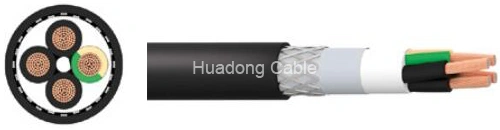

SY LSZH Control Flexible Cable
Construction:
Conductor: Class 5 flexible copper conductor
Insulation: LSZH (Low Smoke Zero Halogen) Type TI6
Bedding: LSZH (Low Smoke Zero Halogen) Type TM7
Braiding: GSWB (Galvanized Steel Wire Braid) minimum coverage of braiding shall be 50%
Sheath: LSZH (Low Smoke Zero Halogen) Type TM7
Character:
Voltage Rating: (Uo/U) 300/500V
Temperature Rating: -15ºC to +70°C Minimum
Bending Radius: 10 x overall diameter
Core Identification：
2 core: Blue Brown
3 core: Blue Brown Green/Yellow
4 core: Brown Black Grey Green/Yellow
5 core: Blue Brown Black Grey Green/Yellow
Sheath Colour: Black
Get a free quote by e-mail: sales@huadongcablegroup.com

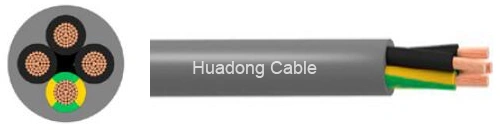

YY PVC Flexible Control Cable
Construction:
Conductor: Class 5 flexible copper conductor
Insulation: PVC (Polyvinyl Chloride) TI2 according to BS EN 50363
Sheath: PVC (Polyvinyl Chloride) TM2 according to BS EN 50363
Character:
Voltage Rating: (Uo/U) 300/500V
Temperature Rating:
Fixed: -40°C to +70°C
Flexed: -5°C to +70°C
Minimum Bending Radius
Fixed: 4 x overall diameter
Flexed: 12.5 x overall diameter
Core Identification Coloured Cores:
2 core: Blue Brown
3 core: Green/Yellow Blue Brown
4 core: Green/Yellow Brown Black Grey
5 core: Green/Yellow Brown Black Grey Blue
7 cores and above: Black with White numbers
(3 cores and above includes Green/Yellow)
Sheath Colour: Grey
Get a free quote by e-mail: sales@huadongcablegroup.com

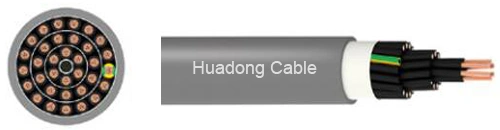

YY LSZH Control Flexible Cable
Construction:
Conductor: Class 5 flexible copper conductor
Insulation: Halogen-Free Compound Type TI6 according to BS EN 50363
Sheath: LSZH (Low Smoke Zero Halogen) Type TM7 according to BS EN 50363
Character:
Voltage Rating: (Uo/U) 300/500V
Temperature Rating:
Fixed: -40°C to +70°C
Flexed: -5°C to +70°C
Minimum Bending Radius
Fixed: 4 x overall diameter
Flexed: 10 x overall diameter
Core Identification
Black with; White numbers (3 core and above includes Green/Yellow)
Coloured Cores:
2 core: Blue Brown
3 core: Green/Yellow Blue Brown
4 core: Green/Yellow Brown Black Grey
5 core: Green/Yellow Brown Black Grey Blue
Sheath Colour: Grey
Get a free quote by e-mail: sales@huadongcablegroup.com

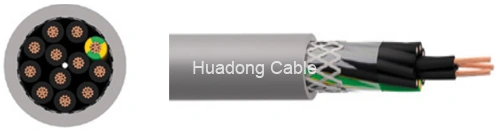

CY PVC Flexible Control Cable
Construction:
Conductor Class: 5 flexible copper conductor according to BS EN 60228 (previously BS 6360)
Insulation: PVC (Polyvinyl Chloride) Type TI2 according to BS EN 50363
Binding: Tape PET (Polyester Tape
Screen TCWB: (Tinned Copper Wire Braid)
Sheath: PVC (Polyvinyl Chloride) Type TM2 according to BS EN 50363
Character:
Voltage Rating: (Uo/U) 300/500V
Temperature Rating:
Fixed: -30°C to +70°C
Flexed: -5°C to +70°C
Minimum Bending Radius
Fixed: 6x overall diameter
Flexed: 15 x overall diameter
Core Identification
Black with; White numbers (3 core and above includes Green/Yellow)
Coloured Cores:
2 core: Blue Brown
3 core: Green/Yellow Blue Brown
4 core: Green/Yellow Brown Black Grey
5 core: Green/Yellow Brown Black Grey Blue
Sheath Colour: Grey
Get a free quote by e-mail: sales@huadongcablegroup.com

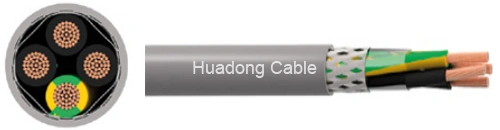

CY LSZH Control Flexible Cable
Construction:
Conductor: Class 5 flexible copper conductor according to BS EN 60228 (previously BS 6360)
Insulation: Halogen Free Type TI6 according to BS EN 50363
Binding Tape: PET (Polyester Tape)
Screen: TCWB (Tinned Copper Wire Braid)
Sheath: LSZH (Low Smoke Zero Halogen) Type TM7 according to BS EN 50363
Character:
Voltage Rating: (Uo/U) 300/500V
Temperature Rating:
Fixed: -15°C to +70°C
Flexed: -30°C to +70°C
Minimum Bending Radius
Fixed: 6x overall diameter
Flexed: 15 x overall diameter
Core Identification
Black with; White numbers (3 core and above includes Green/Yellow)
Coloured Cores:
2 core: Blue Brown
3 core: Green/Yellow Blue Brown
4 core: Green/Yellow Brown Black Grey
5 core: Green/Yellow Brown Black Grey Blue
Sheath Colour: Grey
Get a free quote by e-mail: sales@huadongcablegroup.com
There are two variants of LiYCY, one of which has twisted pairs (TP) for reduced interference (crosstalk). These cables are also available without a screen as LiYY.

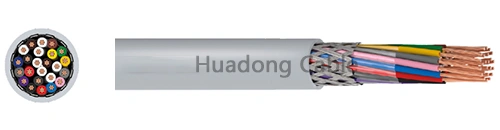

LIYCY Cable
Construction:
Conductor: Class 5 Fine Stranded Bare Copper
Insulation: PVC (Polyvinyl Chloride)
Screen: TCWB (Tinned Copper Wire Braid)
Outer Sheath: PVC (Polyvinyl chloride)
Character:
Voltage Rating: (Uo/U) 250/250V
Temperature Rating: -30ºC to +80ºC
Minimum Bending Radius: 6 x overall diameter
Core Identification:
2 core: White Brown
3 core: White Brown Green
4 core: White Brown Green Yellow
5 core: White Brown Grey Green Yellow
Large size: For colors with six cores and above, please consult us directly.
Sheath Colour: Grey
Get a free quote by e-mail: sales@huadongcablegroup.com

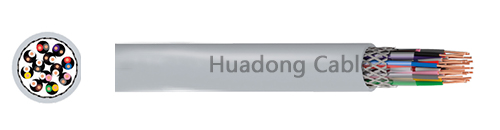

LIYCY TP Cable
Construction:
Conductor: Fine-stranded copper conductor
Insulation: PVC (Polyvinyl chloride)
Separator: Plastic foil tape
Screen: TCWB (Tinned Copper Wire Braid)
Sheath: PVC (Polyvinyl chloride)
Character:
Voltage Rating: 0.14mm2: 350V ; Above 0.14mm2: 500V
Temperature Rating: -15ºC to +70°C Minimum
Bending Radius: 10 x overall diameter
Core Identification：
Pair 1: White Brown
Pair 2: Green Yellow
Pair 3: Grey Pink
Pair 4: Blue Red
Pair 5: Black Violet
Pair 6: Grey/Pink Red/Blue
Pair 7: White/Green Brown/Green
Pair 8: White/Yellow Yellow/Brown
Pair 9: White/Grey Grey/Brown
Pair 10: White/Pink Pink/Brown
Outer Sheath Colour:Grey
Get a free quote by e-mail: sales@huadongcablegroup.com
