Features and Applications
These cables have good properties of flame retardancy, oil resistance, halogen-free, low temperature resistance, ozone resistance, chemical oil and fuel resistance; Recommended for high temperature applications in railway vehicles (locomotives, trains, trolley buses), used as power and control cables for protected installation inside & outside of rolling stock power, and used in auxillary & main circuit wiring such as control panels, monitoring control, electric heating, lighting etc.
EN 50382 Silicone Insulated 1.8/3kV 3.6/6 kV Rated Type F (150°C) Cable
- Voltage: 1.8/3kV
- Conductor: Annealed Plain Class 5 Copper Conductor as per EN 60228
- Insulation: silicone rubber with high mechanical properties – type EI 111 as per EN 50382-1
- Colour : As per customer order
EN 50382 Silicone Insulated 1.8/3kV 3.6/6 kV Rated Type F (120°C) Cable
- Voltage: 1.8/3kV, 3.6/6 kV
- Conductor: Annealed Plain Class 5 Copper Conductor as per EN 60228
- Insulation: silicone rubber with high mechanical properties – type EI 111 as per EN 50382-1
- Colour : As per customer order
EN 50382 Silicone Insulated and Sheathed 1.8/3 kV Rated Type FC (120°C) Cable
- Voltage: 1.8/3kV
- Conductor: Annealed Plain Class 5 Copper Conductor as per EN 60228
- Insulation: silicone rubber with high mechanical properties – type EI 111 as per EN 50382-1
- Sheath : EBXL – EM 105 as per BS EN 50382-1
- Colour : As per customer order
EN 50382 Silicone Insulated and Sheathed 1.8/3 kV 3.6/6 kV Rated Type FF (150°C) Cable
- Voltage: 1.8/3kV, 3.6/6 kV
- Conductor: Annealed Plain Class 5 Copper Conductor as per EN 60228
- Insulation: silicone rubber with high mechanical properties – type EI 111 as per EN 50382-1
- Sheath : silicone rubber with high mechanical properties – type EM 107 as per EN 50382-1
- Colour : As per customer order
EN 50382 Silicone Insulated and Sheathed 1.8/3 kV 3.6/6 kV Rated Type FF (120°C) Cable
- Voltage: 1.8/3kV, 3.6/6 kV
- Conductor: Annealed Plain Class 5 Copper Conductor as per EN 60228
- Insulation: silicone rubber with high mechanical properties – type EI 111 as per EN 50382-1
- Sheath : silicone rubber with high mechanical properties – type EM 107 as per EN 50382-1
- Colour : As per customer order
EN 50382 Silicone Insulated and Sheathed 3.6/6 kV Rated Type FX (150°C) Cable
- Voltage: 3.6/6 kV
- Conductor: Annealed Plain Class 6 Copper Conductor as per EN 60228
- Insulation: EBXL – EI 111 as per BS EN 50382-1
- Colour : As per customer order

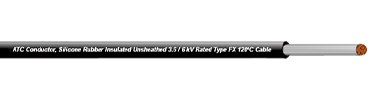

EN 50382 Silicone Insulated and Sheathed 3.6/6 kV Rated Type FX (120°C) Cable
- Voltage: 3.6/6 kV
- Conductor: Annealed Plain Class 6 Copper Conductor as per EN 60228
- Insulation: EBXL – EI 111 as per BS EN 50382-1
- Colour : As per customer order

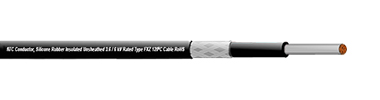

EN 50382 Silicone Insulated and Sheathed 3.6/6 kV Rated Type FXZ (120°C) Cable
- Voltage: 3.6/6 kV
- Conductor: Conductor : Annealed Tinned Class 6 Copper Conductor as per EN 60228
- Separator Tape (Optional)
- Insulation : EBXL – EI 111 as per BS EN 50382-1
- Braiding: Synthetic Reinforcing Braid within the Insulation
EN 50382 Silicone Insulated and Sheathed 3.6/6 kV Rated Type FXZ (120°C) Cable
- Voltage: 3.6/6 kV
- Conductor: Conductor : Annealed Tinned Class 6 Copper Conductor as per EN 60228
- Separator Tape (Optional)
- Insulation : EBXL – EI 111 as per BS EN 50382-1
- Braiding: Synthetic Reinforcing Braid within the Insulation
