Application
Cables are used for interconnecting the transformers and the current regulator of airfield lighting systems in series circuits. They are suitable for fixed applications such as taxiways, runways, touchdown zones, land and hold short lighting systems, and can be installed in conduit, duct, aerial and direct burial.

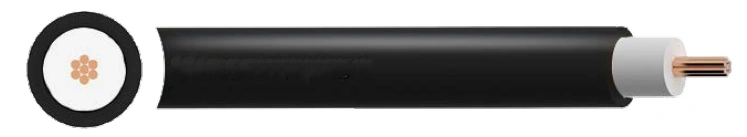

FAA L-824 Type C Unshielded 5kV Airfield Cable
Voltage Rating: 5kV
Temperature Rating Fixed: -40°C to +90°C
Conductor: Stranded bare copper to ASTM B3 and ASTM B8
Separator: Semi-conductive extruded layer or semi-conductive tape
Insulation: XLPE
Sheath Colour: Black
STANDARDS:
FAA L-824 Type C, ICEA S-96-659/NEWA WC71, ASTM B3,
ASTM B8, FAA AC150/5345-7F

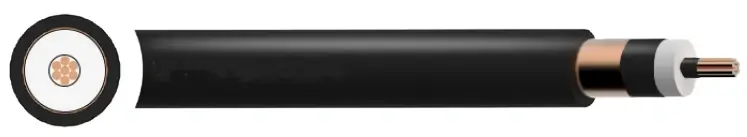

FAA L-824 Type C Shielded 5kV Airfield Cable
Voltage Rating: 5kV
Temperature Rating Fixed: -40°C to +90°C
Conductor: Stranded bare or tinned copper
Inner Semi-Conductor: Extruded semi-conducting compound
Insulation: XLPE
Outer Semi-Conductor: Semi conducting tape or extruded
Shield: Copper or brass tape(s). Tinned copper wire braid on request
Sheath: PVC (Polyvinyl chloride) PE/XLPE on request
Sheath Colour: Black
STANDARDS:
FAA AC 150 / 5345-7E, FAA L-824 Type C, ICEA S-93-639 /
NEMA WC74, FAA AC150/5345-7F

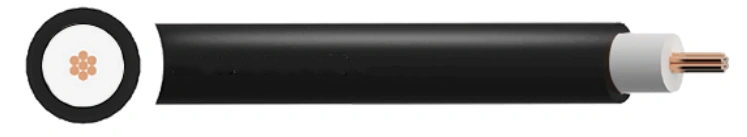

FAA L-824 Type C Sheathed 5kV Airfield Cable
Voltage Rating: 5kV
Temperature Rating Fixed: -40°C to +90°C
Conductor: Stranded bare Copper
Insulation: XLPE
Sheath: PE (Polyethylene) or PVC (Polyvinyl chloride)
Sheath Colour: Black
STANDARDS:
FAA L-824 Type C, ICEA S-93-639 / NEMA WC74
FAA AC150/5345-7F

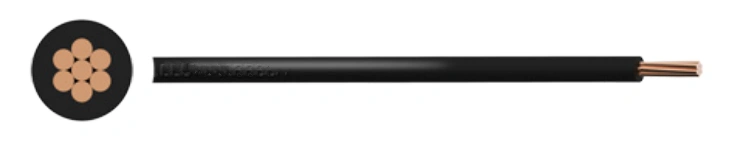

FAA L-824 Type C 600V Airfield Cable
Rated Voltage Uo/U (Um): 600V
Temperature Rating Fixed: -40°C to +90°C
Conductor: Stranded bare copper to ASTM B
Insulation: XLPE (Cross-linked polyethylene)
Sheath (for multicore cables only): PVC (Polyvinyl chloride)
Sheath Colour: Black
STANDARDS:
FAA L-824 Type C, ICEA S-95-658/NEWA WC71
FAA AC150/5345-7F

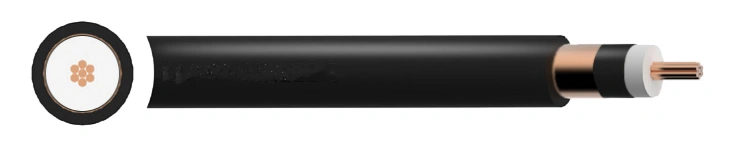

FAA L-824 Type B Shielded 5kV Airfield Cable
Voltage Rating: 5kV
Temperature Rating Fixed: -40°C to +85°C
Conductor: Stranded bare or tinned copper conductor
Insulation: EPR (Ethylene Propylene Rubber)
Semi-Conductor: Helically applied semi-conducting tape
Shield: Tinned copper tape
Separator: Separation tape
Sheath: CPE (Thermoplastic Chlorinated Polyethylene Elastomer)
Sheath Colour: Black
STANDARDS:
FAA L-824 Type B, ICEA S-93-639 / NEMA WC74
FAA AC150/5345-7F

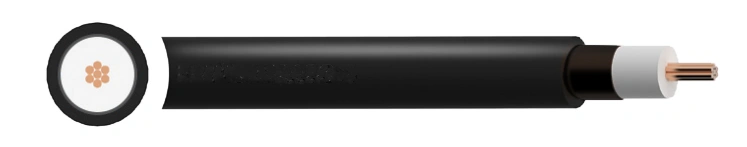

FAA L-824 Type B Unshielded 5kV Airfield Cable
Rated Voltage Uo/U (Um): 5kV
Temperature Rating Fixed: -40°C to +85°C
Conductor: Stranded bare or tinned copper conductor
Insulation: EPR (Ethylene Propylene Rubber)
Sheath: CPE/PVC
Sheath Colour: Black
STANDARD:
FAA L-824 Type B, ICEA S-96-659/NEMA WC71
FAA AC150/5345-7F
| FAA L-824 Type C Shielded 5kV | |||
| NUMBER OF CORES | NOMINAL CROSS SECTIONAL AREA mm²/ AWG | NUMBER OF STRAND | NOMINAL WEIGHT kg/km |
| 1 | 6 | 7/19 | 180 |
| 1 | 8 | 7/19 | 298 |
| 1 | 6 | 7/19 | 366 |
| 1 | 4 | 7/19 | 513 |
| FAA L-824 Type C Unshielded 5kV | |||
| NUMBER OF CORES | NOMINAL CROSS SECTIONAL AREA | NUMBER OF STRAND | NOMINAL WEIGHT |
| AWG | kg/km | ||
| 1 | 8 | 7/19 | 132 |
| 1 | 6 | 7/19 | 186 |
| 1 | 4 | 7/19 | 268 |
| FAA L-824 Type C Sheathed 5kV | |||
| NUMBER OF CORES | NOMINAL CROSS SECTIONAL AREA | NUMBER OF STRAND | NOMINAL WEIGHT |
| mm²/ AWG | kg/km | ||
| 1 | 6mm² | 7 | 180 |
| 1 | 8 | 7 | 95 |
| 1 | 6 | 7 | 127 |
| 1 | 4 | 7 | 164 |
| FAA L-824 Type B Shielded 5kV Cable | |||
| NUMBER OF CORES | NOMINAL CROSS SECTIONAL AREA | NUMBER OF STRAND | NOMINAL WEIGHT |
| mm²/ AWG | kg/km | ||
| 1 | 6mm² | 7 | 194 |
| 1 | 8AWG | 7 | 225 |
| FAA L-824 Type B Unshielded 5kV Cable | |||
| NUMBER OF CORES | NOMINAL CROSS SECTIONAL AREA mm²/ AWG | NUMBER OF STRAND | NOMINAL WEIGHT kg/km |
| 1 | 6 | 7/19 | 150 |
| 1 | 8 | 7/19 | 180 |
| 1 | 6 | 7/19 | 238 |
| 1 | 4 | 7/19 | 326 |
| FAA L-824 Type C Sheathed 5kV | |||
| NUMBER OF CORES | NOMINAL CROSS SECTIONAL AREA | NUMBER OF STRAND | NOMINAL WEIGHT |
| mm²/ AWG | kg/km | ||
| 1 | 12 | 7 | 46 |
| 1 | 10 | 7 | 61 |
| 1 | 0 | 7 | 101 |
| 1 | 6 | 7 | 152 |
| 1 | 4 | 7 | 231 |
| 2 | 12 | 7 | 146 |
| 2 | 10 | 7 | 199 |
| 2 | 8 | 7 | 323 |
| 2 | 6 | 7 | 446 |
| 2 | 4 | 7 | 632 |
| 3 | 12 | 7 | 187 |
| 3 | 10 | 7 | 259 |
| 3 | 8 | 7 | 437 |
| 3 | 6 | 7 | 610 |
| 3 | 4 | 7 | 908 |
| 4 | 12 | 7 | 222 |
| 4 | 10 | 7 | 350 |
| 4 | 8 | 7 | 548 |
| 4 | 6 | 7 | 772 |
| 4 | 4 | 7 | 1165 |
| 5 | 12 | 7 | 292 |
| 5 | 10 | 7 | 405 |
| 6 | 12 | 7 | 357 |
| 6 | 10 | 7 | 495 |
| 7 | 12 | 7 | 379 |
| 7 | 10 | 7 | 534 |
| 8 | 12 | 7 | 430 |
| 8 | 10 | 7 | 604 |
| 9 | 12 | 7 | 479 |
| 9 | 10 | 7 | 707 |
| 10 | 12 | 7 | 539 |
| 10 | 10 | 7 | 762 |
