Huadong Cable Group supplies a range of high-temperature wire&cable that are manufactured in accordance with various International Standards, including UL Standard, BS, IEC etc. Such as,200°C~260°C FEP/PFA/PTFE/Silicone rubber/Polyimide(PI)Insulation (fiberglass Braided shielded） high-temperature cable.
Our high-temperature cable range includes tri-rated cables which are designed to endure continuous operating temperatures of 105°C High-performance glass fiber braid cable or mica glass tape cable, can withstand temperatures of up to 250°C whilst our mineral insulated cables are heat resistant to 950oC.
Hot sales High-Temperature Cable Products

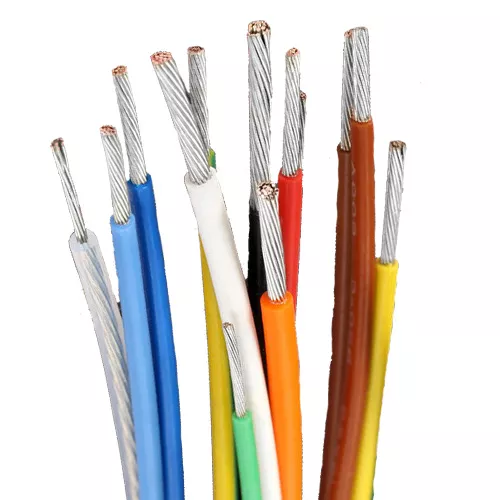

200~250°C FEP/PFA/PTFE Insulation High-Temp Cable
- Construction
- Rate Voltage: 150V, 300V, 600V
- Conductor: Tinned, Silver or Nickel Copper
- Insulation: FEP, ETFE, PFA, PTFE Teflon etc
- Temperatrure Range: -80℃ ~ +150℃/+200℃ or -80℃ ~ +250℃
- O.D Tolerance: Red, white, yellow, green, blue, black, transparent, double-color, etc.
- AWG: 20, 22, 24, 26, 28, 30, 32.
- Note: we accept customer’s OEM requirement for any wire and cable.
- Application: This insulated wire and cable caters for the use of electrical appliance working in the environment of high temperature, such as the cooker, air conditioner, oven, furnace, aviation device, military equipment, ocean ship, lighting, transformer, etc.
200℃ Silicone Rubber & Glassfiber Braided Insulated High-temp Wire
- Construction
- Rate Voltage: 600V
- Conductor: Tinned Copper
- Insulation: Silicone Rubber
- Pleach: Silicone +Fiberglass
- Temperature Range: -60℃ ~ +150/200℃ (UL3071) -60℃ ~ +200℃
- O.D Tolerance: ± 0.1mm
- Color: White, Blue, Red, Black, Brown, Yellow, Green, Transarent, Yellow/Green
- UL3605 AWG: 20, 18,17, 16, 14, 12, 11, 10, 8, 7, 5, 3, 2, 1/0, 2/0.
- UL3071 AWG: 14,16, 17, 18.
- Application: Used for heating source for lighting, electric machinery, air condiioning, oven, drying path, auto ignition, and household appliances etc.
150~185°C Self-Regulating Heat Trace Cable
- Construction
- Voltage: 208-277V, 110-120V
- Maximum maintaining Temperature: 65°C (150°F)
- Maximum Exposure Temperature: 85°C (185°F)
- Area classification: 1, Zone 2 (Gas), Zone 21, Zone 22 (Dust) and ordinary location
- Application: It is designed to provide pipe freeze protection and high-temperature maintenance for long lines applications.It is generally used in pipes and tanks.
Also, it is extremely flexible, even on irregular shapes such as on pumps, valves, and flanges. There are single-conductor, twin-conductor, and tri-conductor structure available.

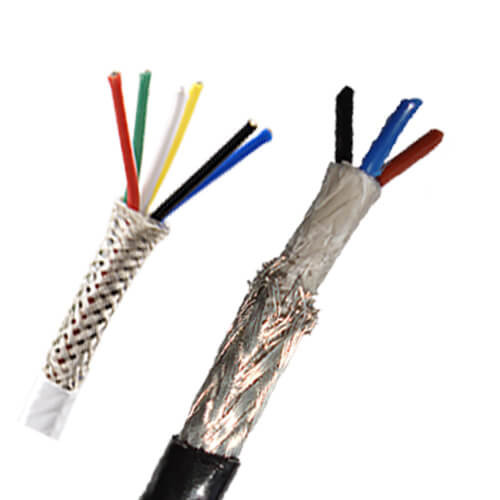

Multi-cores Shielded High-Temp Wire
- Construction
- Rate Voltage: 600V
- Conductor: Tin/Sliver-plated copper/Nickel plated copper
- Core: Multi-core, 16-4/0 AWG PEP wire
- Insulation: PFA, ETFE, PTFE, Silicone Rubber
- Temperature Range: 130°C-150°C，180°C~ +200°C, 230°C~ +260°C
- Braid: Tinned copper wire
- Jacket: PTFE/PFA
- Color: white, blue, red, black, brown, yellow/green, Transparent, etc
- Type of thermocouple: S, R, B, K, E, J, T.
- Application: they are the same with the temperature connect wire for headlamp, Home application industrial machine, electrothermal products
Thermocouple Compensate Wire
- Construction
- Rate Voltage: 300/600V
- Conductor: Tnickel-chrome, nickel-silicone, Iron, Copper-nickel, copper
- Insulation: PEF, PTFE, PI, PVC, Silicone Rubber
- Temperature Range: -60°C~ +1000°C
- Color: white, blue, red, black, brown, yellow/green, Transparent, etc
- Type of thermocouple: S, R, B, K, E, J, T.
- Application: the cable used for temperature measurement and control systems in electric power, metallurgy, petroleum, chemical, textile of some factories and scientific research departments.
(PI) Polyimide Insulated High-tep Wire
- Construction
- Rate Voltage: 600V
- Rate Temperature: 380℃ for 8 hours with no cracking, melting.
- Minimum Temperature: -60℃ Conductor: Pure Copper, Silver Copper or Nickel Copper.
- Inner Insulation: 6layer enwind polyimide(PI) film filament.
- Outer Insulation: External insulation modified PTFE(film filament winding insulation, pushing)/ FEP(F46) insulation（optional）.
- Application: Aerospace, energy chemical, oil exploration, mechanical and electrical equipment, high-frequency discharge lamp fields. The product is resistant with high temperature, pressure, radiation.
