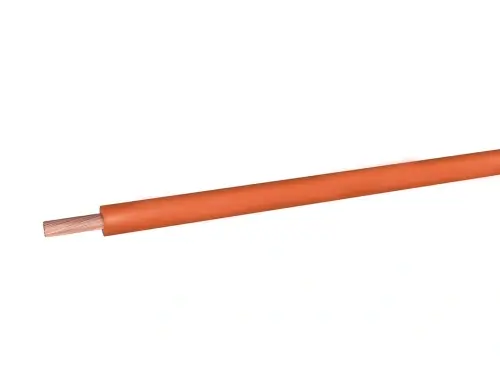

Fire retardant, flexible single-core rubber insulated electric cables, with low emission of fumes and corrosives gases, sheathless with special requirements of reaction to fire according the European Construction Product Regulation Cca-s1b,d1,a1.
Applications
For indoor installation,fixed laying on barewalls orsteel structures,in pipes or ducts,orin signal andcontrol panels,switchgear etc. Cables suitable for electrical power systems in constructions and other civil engineering buildings, in order to limit fire and smoke production and spread, in accordance with the European Construction Product Regulation (CPR) class Cca-s1b, d1, a1.
Voltage: 450/750V
Conductor: Class 5 flexible copper
Insulation: HEPR in G17 quality
CORE COLOURS:
Single core: Black, brown, light blue, grey, red, white, yellow/green, orange, pink,dark blue, violet
STANDARDS:
CEI 20-38 CEI UNEL 35310
EN 50575:2014+EN 50575/A1:2016(EN 50399/EN
60332-1-2/EN 60754-2/EN 61034-2)
Accordingly to the standards BT 2014/35/UE- 2011/65/EU (RoHS 3)
| Cores number | Cross section | Approx cable weight |
| (N°) | (mm²) | (kg/km) |
| 1x | 1.5 | 19 |
| 1x | 2.5 | 30 |
| 1x | 4 | 45 |
| 1x | 6 | 62 |
| 1x | 10 | 112 |
| 1x | 16 | 166 |
| 1x | 25 | 252 |
| 1x | 35 | 340 |
| 1x | 50 | 483 |
| 1x | 70 | 672 |
| 1x | 95 | 889 |
| 1x | 120 | 1108 |
| 1x | 150 | 1390 |
| 1x | 185 | 1682 |
| 1x | 240 | 2196 |
