Application

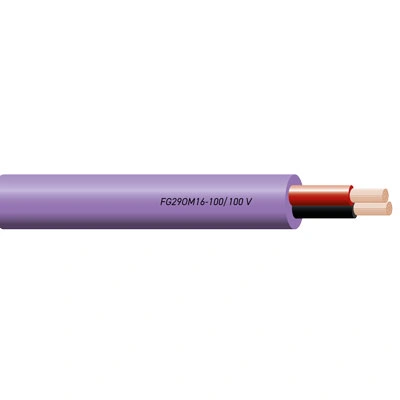

FG29OM16-100/100 V No Burn, No Smoke Cables for applications in fixed automatic fire detection and alarm systems, fire-resistant, fire-retardant, and halogen-free. (Voice evacuation)
They can be used to connect equipment for fixed automatic fire detection and manual fire alarm systems, whether or not connected to fire extinguishing systems or other protection systems (both active and passive), intended for installation in buildings, regardless of their intended use. They are not suitable for other uses, such as emergency lighting, powering forced smoke and heat extraction systems, electric locks or emergency controls, or other similar applications with operating voltages above 100 V AC. For these applications, cables compliant with CEI 20-105 standards must be used.
Rated Voltage: 100/100 V
Min. operating (without mechanical shocks) Temperatures: -15°c
Max. operating on the conductor Temperatures : 180°c
Conductor: Flexible, plain copper wire, class 5.
Insulation: G29 silicone rubber, with low development of toxic and corrosive fumes and gases. Ceramizing silicone with fire barrier function.
Cores Colour: Red, black
Sheath: M16 quality thermoplastic compound.
Sheath Colour: Violet
| Conductor cross-sections | Average insulation thickness | Average sheath thickness | Outer diameter | |
| mm | mm | MIN mm | MAX mm | |
| 2 cores x mm2 | ||||
| 0,5 | 0,5 | 0.8 | 5.4 | 7.7 |
| 0,75 | 0,5 | 0,8 | 5.8 | 7.9 |
| 1 | 0,5 | 0,8 | 6.1 | 8.4 |
| 1.5 | 0,6 | 0,9 | 7.2 | 9,5 |
| 2,5 | 0.7 | 1,0 | 8.4 | 11.4 |
| 4 | 0.7 | 1,0 | 10,1 | 13.1 |
| 6 | 0.7 | 1,0 | 11.4 | 144 |
| 4 cores x mm2 with green/yellow | ||||
| 0.5 | 0,5 | 0.8 | 6.1 | 8.8 |
| 0,75 | 0.5 | 0,8 | 6.6 | 9.2 |
| 1 | 0.5 | 0,8 | 6.9 | 9,5 |
| 1,5 | 0.6 | 0.9 | 8.2 | 10,7 |
| 2,5 | 0.7 | 1,0 | 10 | 12.5 |
