APPLICATION
Battery cable for use in road vehicle applications. including eMobility applications. Offers excellent resistance to high and low temperature, ozone, UV and weathering resistance. It is resistant to pressure at high temperatures, motor oil, fuels and hydrolysis, flame retardant, has a high abrasion resistance, and is easy to strip and process.
CHARACTERISTICS
Voltage Rating
U0: 1000V AC
V0: 1500V DC
Test Voltage 50 Hz, 5 min: 10kV AC
Temperature Range(3000h): -40°C to + 150°C
Minimum Bending Radius:
Fixed: 4x Overall diameter
Flexing: 6x Overall diameter

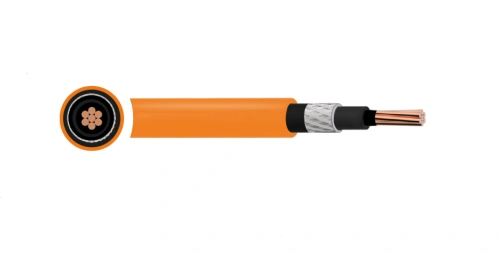

CONSTRUCTION
Conductor: Bare Copper
Insulation:
91X: XLPO (Cross-linked irradiation Polyolefin) for cables <6 mm2
4G: EVA (Ethylene Vinyl Acetate) for cables >6 mm2
Screen:TCWB (Tinned copper wire braid)
Wrapping: Tape
Sheath: TPE-E (Vulcanised Thermoplastic Elastomer 13X)
Sheath Colour: Orange
STANDARDS:
ISO 6722-1 class D, ISO 19642-9 class D, EU-directive
2000/53/EG
DIMENSIONS FHLR91XC13X
| NOMINAL CROSS SECTIONAL AREA | CONDUCTOR | CABLE | |||||
| NUMBER OF INDIVIDUAL WIRES | NOMINAL DIAMETER OF INDIVIDUAL WIRES | NOMINAL DIAMETER | NOMINAL DIAMETER OF INSULATION | NOMINAL DIAMETER OF SCREEN | NOMINAL OVERALL DIAMETER | NOMINAL WEIGHT | |
| mm2 | mm | mm | mm | mm | mm | kg/100m | |
| 2.5 | 50 | 0.26 | 2 | 2.85 | 3.3 | 5 | 4.9 |
| 4 | 56 | 0.31 | 2.5 | 3.55 | 4 | 5.8 | 7 |
| 6 | 84 | 0.31 | 3 | 4.15 | 4.7 | 6.6 | 9.8 |
DIMENSIONS FHLR4GC13X
| NOMINAL CROSS SECTIONAL AREA | CONDUCTOR | CABLE | |||||
| NUMBER OF INDIVIDUAL WIRES | NOMINAL DIAMETER OF INDIVIDUAL WIRES | NOMINAL DIAMETER | NOMINAL DIAMETER OF INSULATION | NOMINAL DIAMETER OF SCREEN | NOMINAL OVERALL DIAMETER | NOMINAL WEIGHT | |
| mm2 | mm | mm | mm | mm | mm | kg/100m | |
| 8 | 60 | 0.41 | 3.8 | 5.05 | 5.6 | 7.6 | 12.5 |
| 10 | 78 | 0.41 | 4.3 | 5.75 | 6.3 | 8.4 | 15.8 |
| 12 | 92 | 0.41 | 4.7 | 6.1 | 6.7 | 8.9 | 17.9 |
| 16 | 126 | 0.41 | 5.4 | 6.9 | 7.5 | 9.7 | 23 |
| 20 | 154 | 0.41 | 6.2 | 7.6 | 8.3 | 10.6 | 28.2 |
| 25 | 189 | 0.41 | 6.7 | 8.2 | 8.9 | 11.2 | 32.8 |
| 30 | 224 | 0.41 | 7.4 | 9.1 | 9.8 | 12.1 | 38.5 |
| 35 | 273 | 0.41 | 7.9 | 9.7 | 10.4 | 12.7 | 44.7 |
| 40 | 301 | 0.41 | 8.5 | 10.4 | 11.3 | 13.6 | 51.3 |
| 50 | 385 | 0.41 | 9.4 | 11.5 | 12.6 | 14.9 | 64.2 |
| 60 | 294 | 0.51 | 10.6 | 12.6 | 13.5 | 15.9 | 73.1 |
| 70 | 360 | 0.51 | 11.6 | 13.7 | 14.6 | 17 | 85.8 |
| 95 | 480 | 0.51 | 13.5 | 16.2 | 17.3 | 19.9 | 115.3 |
| 120 | 589 | 0.51 | 15.1 | 18 | 19.1 | 22.6 | 145.5 |
| 150 | 741 | 0.51 | 17 | 20 | 21.3 | 24.9 | 177.4 |
