Application
These cables are used as airfield lighting equipment primary cables for the series circuit connecting the Constant Current Regulators and the isolating transformers, and between the isolating transformers. Impact and weather resistant.

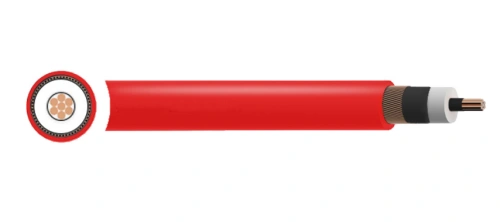

FL2XCY Airfield Cable
Rated Voltage Uo/U (Um): 6/10kV
Temperature Rating Operating: -40°C to +90°C
Conductor: Stranded bare copper conductor
Inner Semi-Conducting Layer: Extruded semi-conducting compound
Insulation: XLPE
Outer Semi-Conducting Layer: Extruded semi-conducting compound
Shield: Concentric layer of bare copper wires, counter helix of copper tape
Outer Sheath: PVC (Polyvinyl chloride) – UV & Oil Resistant
Sheath Colour: Red
STANDARDS: ENV 50213, IEC 50602-2

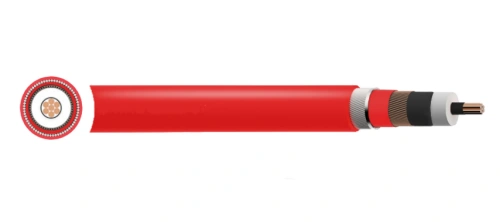

FL2XCYRY Airfield Cable
Rated Voltage Uo/U (Um): 6/10kV
Temperature Rating Operating: -40°C to +90°C
Conductor: Stranded bare copper conductor
Inner Semi-Conducting Layer: Extruded semi-conducting compound
Insulation: XLPE
Outer Semi-Conducting Layer: Extruded semi-conducting compound
Shield: Concentric layer of bare copper wires, counter helix of copper tape
Inner Sheath: PVC
Armour: GSWA (Galvanised steel wire armour)
Outer Sheath: PVC (Polyvinyl chloride) – Flame retardant, UV & OIl resistant
Sheath Colour: Red
STANDARDS
ENV 50213, IEC 50602-2

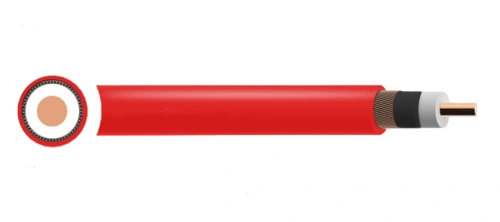

FLYCY Airfield Cable
Rated Voltage Uo/U (Um): 1/2kV, 1.5/3kV, 2.5/5kV, 3/6kV, 5/10kV
Temperature Rating Fixed: -40°C to +90°C
Conductor: Solid or stranded bare copper conductor
Insulation: PVC
Optional Separator: Separator tape
Shield: Concentric layer of bare copper wires, counter helix of copper tape
Outer Sheath: PVC (Polyvinyl chloride) – UV & OIl resistant
Sheath Colour: Red
STANDARDS
ENV 50213, IEC 50602-2, VDE 0271
| FL2XCY Airfield Cable | ||
| NUMBER OF CORES | NOMINAL CROSS SECTIONAL AREA | NOMINAL WEIGHT |
| mm2 | kg/km | |
| 1 | 6 | 420 |
| FL2XCYRY Airfield Cable | ||
| NUMBER OF CORES | NOMINAL CROSS SECTIONAL AREA | NOMINAL WEIGHT |
| mm2 | kg/km | |
| 1 | 6 | 710 |
| FLYCY Airfield Cable | |||
| VOLTAGE | NUMBER OF CORES | NOMINAL CROSS SECTIONAL AREA | NOMINAL WEIGHT |
| kV | mm2 | kg/km | |
| 1/2kV | 1 | 6 | 170 |
| 1.5/3kV | 1 | 6 | 240 |
| 2.5/5kV | 1 | 6 | 250 |
| 3/6kV | 1 | 6 | 250 |
| 3/6kV | 1 | 16 | 465 |
| 5/10kV | 1 | 6 | 360 |
| 5/10kV | 1 | 10 | 390 |
