Applications:
1) Umbilicals
2) Cables
Huadong Cable Group pulling fleets for diver umbilicals, hoses, and towing cable applications. The fleeters (Chinese fingers / kellems grip) are made of plastic-coated Aramid fibre strands. These fleeters do not have the metallic fraying as traditional fleeter, thereby eliminating the chance of being injured or causing damage from metallic strands abraded.
Fleeters are available in custom sizes & in different types weaves and eyes.
See examples in the datasheet for the different options.

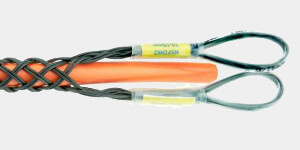

Double Eye | CABLE SIDE

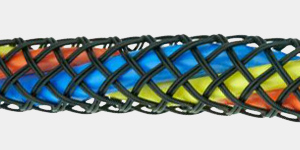

Umbilical Fleeter
double weave
Cable Fleeter
double weave
Specifications
| Grip Diameter | Lenth | Work Load | Break Strength | Weave |
| 6-9 mm | 400 mm | 250 kg. | 1000 kg. | Single |
| 10-15 mm | 400 mm | 330 kg. | 1650 kg. | Double |
| 14-25 mm | 500 mm | 500 kg. | 2500 kg. | Double |
| 20-30 mm | 600 mm | 580 kg. | 2900 kg. | Double |
| 25-35 mm | 600 mm | 750 kg. | 4000 kg. | Double |
| 30-40 mm | 700 mm | 800 kg. | 4200 kg. | Double |
| 40-50 mm | 700 mm | 800 kg. | 4200 kg. | Double |
| 50-60 mm | 800 mm | 1500 kg. | 7500 kg. | Double |
| 60-75 mm | 800 mm | 2000 kg. | 10000 kg. | Double |
| 75-90 mm | 800 mm | 2000 kg. | 10000 kg. | Double |
