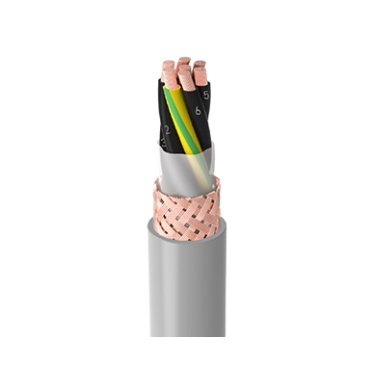

Applications of FROH2R
These cables are suitable for ffxed laying, connection of movable appliances, and production lines in industries. It’s shielded for against electromagnetic disturbances. They can be used in dry, damp and wet places inside and temporary outdoor.
Voltage Rating: 300/500 or 450/750 V
Conductor: Electrolytic annealed, class 5 stranded plain copper wires (tinned conductor on request)
Insulation: PVC compound, TI2 type (EN 50363-3)
Seperator: Polyester tape
Screen: Bare copper wire braiding (tinned on request)
Sheath: PVC compound, TM2 type (EN 50363-4-1)
Color: Light Grey
300 / 500 V of FROH2R
| Cross Section (mm2) | Nominal Overall Diameter (mm) | Approximate Weight (kg / km) | Min.Bending Radius (fixed installation) (mm) | Max. Resistance of Conductors at 200C (ohm / km) |
| 2×1 | 8,10 | 130 | 24 | 19,50 |
| 2×1,5 | 8,60 | 150 | 26 | 13,30 |
| 2×2,5 | 10,20 | 215 | 31 | 7,98 |
| 2×4 | 11,20 | 275 | 34 | 4,95 |
| 2×6 | 12,50 | 350 | 50 | 3,30 |
| 3×1 | 8,60 | 156 | 26 | 19,50 |
| 3×1,5 | 9,00 | 180 | 27 | 13,30 |
| 3×2,5 | 10,80 | 261 | 32 | 7,98 |
| 3×4 | 12,10 | 345 | 48 | 4,95 |
| 3×6 | 13,70 | 465 | 55 | 3,30 |
| 4×1 | 9,30 | 190 | 28 | 19,50 |
| 4×1,5 | 10,00 | 225 | 30 | 13,30 |
| 4×2,5 | 11,70 | 320 | 35 | 7,98 |
| 4×4 | 13,20 | 430 | 53 | 4,95 |
| 4×6 | 14,90 | 575 | 60 | 3,30 |
| 5×1 | 10,30 | 230 | 31 | 19,50 |
| 5×1,5 | 11,00 | 270 | 33 | 13,30 |
| 5×2,5 | 13,00 | 385 | 52 | 7,98 |
| 5×4 | 15,00 | 536 | 60 | 4,95 |
| 5×6 | 16,50 | 680 | 66 | 3,30 |
450 / 750 V of FROH2R
| Cross Section (mm2) | Nominal Overall Diameter (mm) | Approximate Weight (kg / km) | Min.Bending Radius (fixed installation) (mm) | Max. Resistance of Conductors at 200C (ohm / km) |
| 7×1 | 10,20 | 250 | 31 | 19,50 |
| 7×1,5 | 11,90 | 340 | 36 | 13,30 |
| 7×2,5 | 14,40 | 516 | 58 | 7,98 |
| 10×1 | 13,30 | 400 | 53 | 19,50 |
| 10×1,5 | 15,20 | 530 | 61 | 13,30 |
| 10×2,5 | 18,10 | 770 | 72 | 7,98 |
| 12×1 | 13,70 | 445 | 55 | 19,50 |
| 12×1,5 | 15,80 | 595 | 63 | 13,30 |
| 12×2,5 | 18,90 | 870 | 76 | 7,98 |
| 16×1 | 15,30 | 560 | 61 | 19,50 |
| 16×1,5 | 17,60 | 750 | 70 | 13,30 |
| 16×2,5 | 21,00 | 1095 | 84 | 7,98 |
| 19×1 | 16,20 | 640 | 65 | 19,50 |
| 19×1,5 | 18,50 | 855 | 74 | 13,30 |
| 19×2,5 | 22,10 | 1256 | 88 | 7,98 |
| 24×1 | 18,90 | 840 | 76 | 19,50 |
| 24×1,5 | 21,80 | 1125 | 87 | 13,30 |
| 24×2,5 | 26,20 | 1691 | 105 | 7,98 |
