H03S-K, H05S-K, H07S-K, H05S-U, H05SJ-K, H05SJ-U, H05SS-K Flexible, High temperature, Single Core Silicone Rubber Insulated Cable

Application

These cables suitable for Control cabinet manufacturing, appliances and apparatus engineering, electric motor industry, sauna/solarium construction, thermal and heating elements, lighting technology, ventilator engineering, air-conditioning technology, furnace construction, polymer processing, generator and transformer manufacturing.

H03S-K 180°C High temperature Silicone Rubber Cable

Voltage Rating Uo/U:300V/300V
Temperature Rating Operating: -60ºC to +180ºC
Conductor: Class 5 Flexible Bare or Tinned Copper
Insulation: Silicone Rubber
Colour: Black, Blue, Brown, Grey, Orange, Pink, Red, Turquoise, Violet, White, Green, Yellow or Green/Yellow

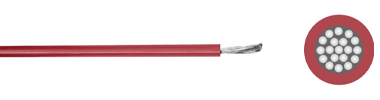

H05S-K/H07S-K 180°C High temperature Silicone Rubber Cable

Rated voltage Uo/U: 300 /500 V; 450/750 V≥ 1,5 mm².
Temperature range: -60° C ~ + 180° C (fìxed).
Conductor: fexible copper wires. *upon request, the copper conductor can be tinned, nickel-plated or silver-plated.
Insulation: silicone rubber compound, EI2
Core identification:different colours are available.

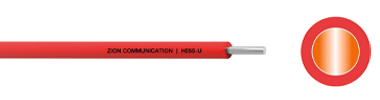

H05S-U 180°C High temperature Silicone Rubber Cable

Rated Voltage : 300/500V
Temperature Rating Operating: -60°C to +180°C
Conductor: Conductor : rigid copper wire, class 1. *upon request, the copper conductor can be tinned, nickel-plated or silver-plated.
Insulation : silicone rubber compound, EI2.
Core identification : different colours are available.

H05SJ-K Silicone Rubber Insulated Glass Fibre Braid Cable

Rated Voltage : 300/500V
Temperature Rating Operating: -60°C to +180°C
Conductor: Annealed Tinned Copper Conductor (Opt: APC) as per EN 60228, Class 5
Insulation : Elastomeric Compound Type EI 2 (Silicone Rubber)
Insulation Colour : Black (or) As per customer order
Outer Braid : Glass Fibre as per EN 50525-1

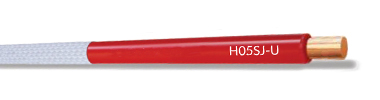

H05SJ-U Silicone Rubber Insulated Glass Fibre Braid Cable

Rated Voltage : 300/500V
Temperature Rating Operating: -60°C to +180°C
Conductor: Annealed Tinned Copper Conductor (Opt: APC) as per EN 60228, Class 1
Insulation : Elastomeric Compound Type EI 2 (Silicone Rubber)
Insulation Colour : Black (or) As per customer order
Outer Braid : Glass Fibre as per EN 50525-1

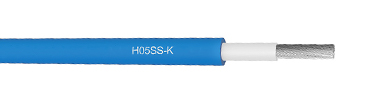

H05SS-K 180°C High temperature Silicone Rubber Cable

Rated Voltage : 300/500V
Temperature Rating Operating: Annealed Tinned Copper Conductor (Opt: APC) as per EN 60228, Class 5
Conductor: Annealed Tinned Copper Conductor (Opt: APC) as per EN 60228, Class 1
Insulation : Elastomeric Compound Type EI 2 (Silicone Rubber)
Sheath: Elastomeric Compound Type EM 9 (Silicone Rubber)
Insulation Colour : Black (or) As per customer order

H03S-K Cable

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm2	NOMINAL THICKNESS OF INSULATION mm	NOMINAL OVERALL DIAMETER mm	NOMINAL WEIGHT kg/km
1	0.5	0.6	2.1	8.3
1	0.75	0.6	2.4	11.5
1	1	0.6	2.5	13.8
1	1.5	0.7	3	19.3
1	2.5	0.8	3.6	30.8

Get a free quote by e-mail: sales@huadongcablegroup.com

H05S-K/H07S-K Cable

Core Numbers×Conductor Section (mm²)	O.D approx (mm)	Copper Factor (kg/km)	Cable Weight approx (kg/km)
1×0,25	1,9	2,4	5,5
1×0,5	2,3	4,8	9,9
1×0,75	2,5	7,2	13,2
1×1	2,7	9,6	16,5
1×1,5	2,9	14.4	20,9
1×2,5	3,6	24,0	33
1×4	4,3	38,4	50,6
1×6	5	57,6	71,5
1×10	6,3	96,0	122,1
1×16	7,9	153,6	188,1
1×25	9,8	240,0	294,8
1×35	10,8	336,0	391,6
1×50	12,6	480,0	559,9
1×70	14,8	672,0	792
1×95	16,8	912,0	1093,4
1×120	19,1	1.152,0	1320
1×150	20,7	1.440,0	1661
1×185	24,7	1.776,0	2068
1×240	26,1	2.304,0	2805

Get a free quote by e-mail: sales@huadongcablegroup.com

H05S-U Cable

No. Of Cores	Nominal Cross Sectional Area (mm²)	Nominal Thickness Of Insulation(mm)	Nominal Overall Diameter(mm)	Nominal Weight(Kg/km)
1	0.5	0.6	2	10
1	0.75	0.6	2.2	12
1	1	0.6	2.3	15
1	1.5	0.6	2.6	20
1	2.5	0.7	3.2	31
1	4	0.8	3.9	48
1	6	0.8	4.4	67
1	10	1	5.6	108

Get a free quote by e-mail: sales@huadongcablegroup.com

H05SJ-K Cable

Nominal Cross- Section	Insulation Thickness Nom.	Weight (Approx.)
mm2	mm	Kg/Km
0.5	0.6	11
0.75	0.6	14
1	0.6	17
1.5	0.7	24
2.5	0.8	35
4	0.8	54
6	0.8	74
10	1	118
16	1	172
25	1.2	267
35	1.2	355
50	1.4	495
70	1.4	670
95	1.6	890
