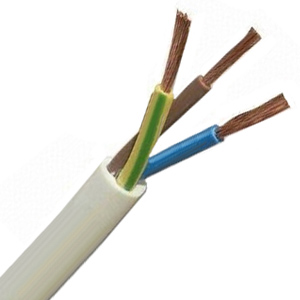

H03VV-F PVC/PVC Cable
Voltage: 300/300V
Conductor: bare copper conductor, fine wired stranded, class 5 acc. to IEC 60228 / HD 383 / DIN VDE 0295 (nominal diameter 0,20 mm)
Insulation: PVC compound TI2 acc. to DIN VDE 0207 4. part / HD 21.1 S4, concentrically stranded cores color marked acc. to HRN HD 308 S2 / DIN VDE 0293-308, with or without yellow-green protective conductor
Sheath: PVC compound TM2 for flexible insulated conductors acc. to DIN VDE 0207 part 5 / HD 21.1 S4
Sheath color: white or black
Application: H03VV-F is suitable for dry areas, used for purposes requiring special flexibility in conditions free of any mechanical stresses. Permitted frequent bending and twisting. Specially suitable for application in small devices with low mechanical loads and for connection of light household devices such as kitchen appliances, desk lamps, ceiling lamps, vacuum cleaners, office machines, radios etc.
H03VV-F PVC/PVC Cable Parameter:

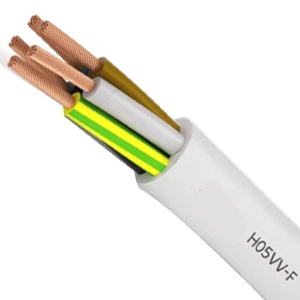

H05VV-F PVC/PVC Cable
Insulation: PVC compound TI2 acc. to DIN VDE 0207 part 4/ HD 21.1 S4, concentrically stranded cores color marked acc. to HRN HD 308 S2 / DIN VDE 0293-308, with or without yellow-green protective conductor
Sheath: PVC compound TM2 for flexible cables acc.
sheath colour: white or black
Core colour marking: HRN HD 308 S2 / VDE 0293-308
Temperature range:
during installationi: +5 °C up to +70 °C
fixed installed: -30 °C up to +70 °C
at short circuit of max. 5 s: up to 150 °C
ambient temperature at storage: up to 40 °C
Nominal voltage: Uο/U = 300/500 V
Test voltage: 2000 V
| H05VV-F Parameter | |||||||||
| 4G0,75 | 24 x 0,20 | 6,6 – 08,3 | 0,6 | 0,8 | 26,0 | 0,011 | 28,8 | 75 | c.100 |
| 4G1 | 32 x 0,20 | 7,1 – 09,0 | 0,6 | 0,9 | 19,5 | 0,010 | 38,4 | 92 | c.100 |
| 4G1,5 | 30 x 0,25 | 8,4 – 10,5 | 0,7 | 1,0 | 13,3 | 0,010 | 57,6 | 145 | c.100 |
| 4G2,5 | 50 x 0,25 | 10,1 – 12,5 | 0,8 | 1,1 | 7,98 | 0,0095 | 96,0 | 210 | c.100 |
| 4G4 | 56 x 0,30 | 11,5 – 14,3 | 0,8 | 1,2 | 4,95 | 0,0078 | 153,6 | 299 | CUT |
| 4G6 | 84 x 0,30 | 14,7 | – | – | 3,30 | 0,0068 | 230,4 | 480 | CUT |
