Voltage Rating U/Uo: 300/500V
Temperature Rating Operating: -5°C to +110°C
Maximum temperature of short circuit: +250°C
Conductor: Class 5 flexible tinned copper conductor
Insulation: EVA Rubber (Ethylene Vinyl Acetate) EI3
Sheath: Rubber EM4
Core Identification:
2 core: Blue Brown
3 core: Green/Yellow Blue Brown
4 core: Green/Yellow Brown Black Grey
5 core: Green/Yellow Blue Brown Black Grey
Sheath Colour: Black
Application: These cables are used for ffxed and mobile equipment connections in agricultural and industrial workshops. It can also be used domestic premises, kitchens and offices, for ordinary duty applications and supplying appliances where cables are subject to low mechanical stresses (e.g. vacuum cleaners, cooking appliances, soldering irons, toasters, domestic portable tools, hand held inspection lamps) use outdoors for temporary periods of short duration.
Voltage Rating: 300/500V
Temperature Rating:
Maximum conductor operating temperature: 110°C
Maximum temperature on cable surface: 90°C
Minimum installation temperature: 0°C
Maximum conductor short-circuit temperature: 250°C
Number of cores: 2
Nominal Cross Sectional area mm2: 0.75
Conductor: Class 5 flexible stranded Copper
Insulation: EVA (Ethylene Vinyl Acetate) EI3 Type rubber
Sheath: Rubber EM4 Type
Sheath Colour: Black

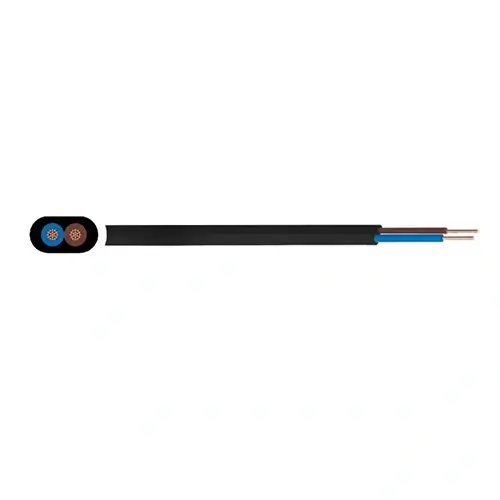

Application: H05GGH2-F cables are in a flat formation for fixed and mobile equipment rated 300/500V, typically in offices and kitchens. Suitable for use indoor, outdoors (temporary installations) and in dry, wet and contained explosive atmosphere environments under no mechanical or tensile stresses. EVA insulation offers a higher conductor operating temperature.
H05GG-F Data Sheet
| NO.OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
| 2 | 0.75 | 6.1 | 53 |
| 2 | 1 | 6.6 | 64 |
| 2 | 1.5 | 7.8 | 95 |
| 2 | 2.5 | 9.2 | 140 |
| 2 | 0.75 | 6.6 | 65 |
| 3 | 1 | 7 | 177 |
| 3 | 1.5 | 8.4 | 115 |
| 3 | 2.5 | 9.9 | 170 |
| 3 | 4 | 11.7 | 240 |
| 3 | 6 | 13.3 | 320 |
| 4 | 0.75 | 7.2 | 80 |
| 4 | 1 | 7.6 | 95 |
| 4 | 1.5 | 9.4 | 145 |
| 4 | 2.5 | 11.1 | 210 |
| 4 | 4 | 13 | 300 |
| 4 | 6 | 14.5 | 405 |
| 5 | 0.75 | 8.1 | 100 |
| 5 | 1 | 8.4 | 115 |
| 5 | 1.5 | 10.3 | 170 |
| 5 | 2.5 | 12.4 | 255 |
