Applications

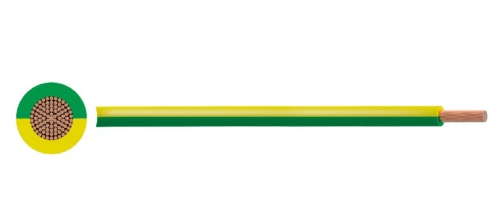

H05V-K & H07V-K cable has been specially designed for installations that require a flexible cable due to the complex nature of their layout. Cables for use in the switch control, relay and instrumentation panels of power switchgear and for purposes such as internal connectors in rectifier equipment, motor starters and controllers. It may also be used for equipment wiring, distributors, cabinets and lighting.
Voltage Rating Uo/U:
H05V-K: 300/500V
H07V-K: 450/750V
Temperature Rating:
Fixed: -30°C to +70°C
Flexed: -5°C to +70°C
Conductor: Class 5 flexible copper conductor
Insulation: PVC
Insulation Colour:
Red Black Blue Orange Yellow White
Green/Yellow Grey Brown Violet Pink
STANDARDS:
EN 50525-2-31, EN 60228
Flame Retardant according to IEC/EN 60332-1-2
UV Resistant
| H05V-K | ||
| NOMINAL CROSS SECTIONAL AREA | NOMINAL OVERALL DIAMETER | NOMINAL WEIGHT |
| mm2 | mm | kg/km |
| 0.5 | 2.2 | 9.1 |
| 0.75 | 2.4 | 11.7 |
| 1 | 2.55 | 14.4 |
| H07V-K | ||
| NOMINAL CROSS SECTIONAL AREA | NOMINAL OVERALL DIAMETER | NOMINAL WEIGHT |
| mm2 | mm | kg/km |
| 1.5 | 3 | 20.1 |
| 2.5 | 3.65 | 31.5 |
| 4 | 4.2 | 46.2 |
| 6 | 4.8 | 65.1 |
| 10 | 6.25 | 109.4 |
| 16 | 7.4 | 165.2 |
| 25 | 9.4 | 253.4 |
| 35 | 10.4 | 345.5 |
| 50 | 12.55 | 492.4 |
| 70 | 14.1 | 669.3 |
| 95 | 17.2 | 910.4 |
| 120 | 17.7 | 1129.4 |
| 150 | 19.6 | 1401 |
| 185 | 23 | 1741 |
| 240 | 26.4 | 2267.5 |
