Applications

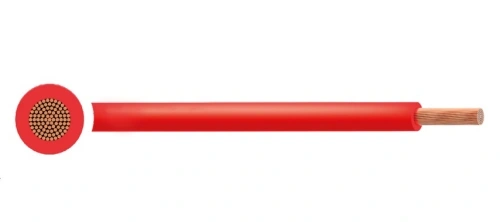

Heat resistant, flame retardant cable designed for use in the switch control, relay and instrumentation panels of power switchgear and for purposes such as internal connectors in rectifier equipment, motor starters and controllers. Tri-rated cable is sometimes referred to as BS 6231 cable, H07V2-K or panel wire.
Voltage Rating (Uo/U):
0.5mm² – 1mm²: BS EN 50525-2-31 – H05V2-K: 300/500V
1.5mm² and above*: BS EN 505-2-31 – H07V2-K: 450/750V
Temperature Rating:
UL, CSA: -15°C to +105°C
BS 6231: -15°C to +90°C
Conductor: Class 5 flexible copper conductor
Insulation: PVC (Polyvinyl Chloride)
Insulation Colour:
Red Black Blue Light Blue Dark Blue Yellow
Green/Yellow Grey Brown Orange White Violet Green Pink
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA | NOMINAL WEIGHT |
| mm2 | kg/km | |
| 1 | 0.5 | 11 |
| 1 | 0.75 | 15 |
| 1 | 1 | 18 |
| 1 | 1.5 | 23 |
| 1 | 2.5 | 35 |
| 1 | 4 | 48 |
| 1 | 6 | 69 |
| 1 | 10 | 117 |
| 1 | 16 | 191 |
| 1 | 25 | 281 |
| 1 | 35 | 389 |
| 1 | 50 | 560 |
| 1 | 70 | 774 |
| 1 | 95 | 991 |
| 1 | 120 | 1231 |
| 1 | 150 | 1534 |
| 1 | 185 | 1878 |
| 1 | 240 | 2381 |
