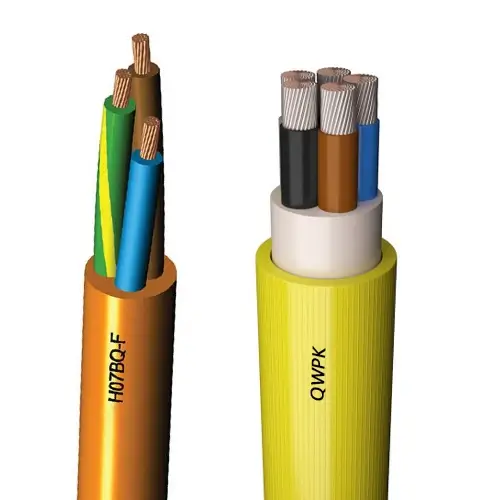

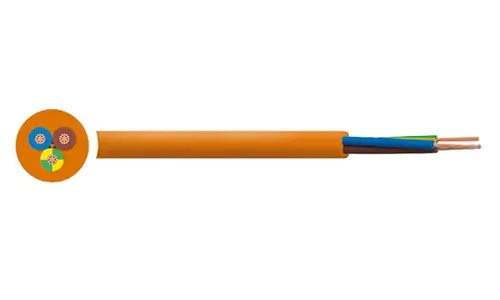

H07BQ-F cables is robust polyurethane (PUR) sheathed cables suitable for a wide range of industrial applications.
H07ZZ-F Cable Construction
Temperature range： flexible -40°C to +80°C
fixed -50°C to +90°C
Permissible operating temperature of the conductor +90°C
Nominal voltage: AC U0/U 450/750 V
Test voltage core/core: 2500 V
Minimum bending radius: flexible 5x Outer-Ø
fixed 3x Outer-Ø
Application H07BQ-F Cable
For medium mechanical stress in dry, damp or wet rooms as well as outdoors in commercial and agricultural workplaces or on construction sites for connecting equipment, e.g. hand lamps, power tools such as drills, circular saws and grinders. When laid in pipes or similar closed systems, the use of the cable is permitted up to and including 1000 V AC or 750 V DC against earth.

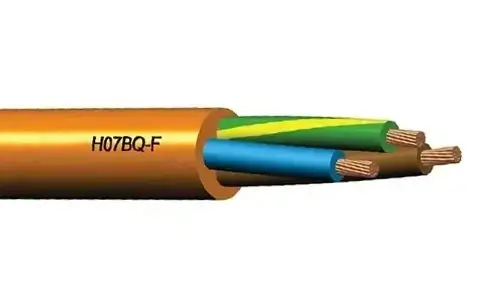

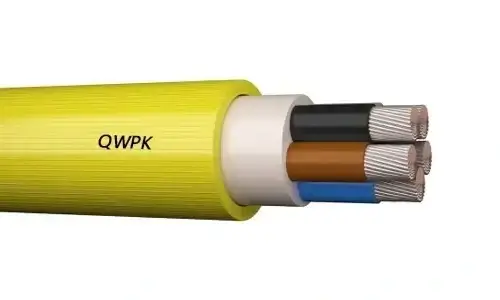

H07BQ-F Cable Structure
Copper wire bare, finely stranded acc. to DIN VDE 0295 Class 5 / IEC 60228 Class 5
Core insulation: rubber acc. to DIN VDE 0207-363-1 / DIN EN 50363-1 (compound type EI6)
Core identification acc. to DIN VDE 0293-308,
2 – 5 core(s): colour coded
7 – 12 core(s): black cores with consecutive labeling in white digits
Protective conductor: starting with 3 cores,
G = with protective conductor GN-YE, in the outer layer,
x = without protective conductor
Cores stranded in layers with optimal lay lengths
Outer sheath: Special grade of full polyurethane acc. to DIN VDE 0207-363-10-2 / DIN EN 50363-10-2 (compound type TMPU)
Sheath colour: orange (RAL 2003)
H07BQ-F Cable Properties
resistant to: oil, UV radiation, ozone, oxygen, weathering effects, hydrolysis, microbes, coolants, hydraulic fluids, acids, alkalis, greases, seawater and wastewater
highly abrasion-resistant, notch-resistant, tear-resistant, cut-resistant, wear-resistant
for outdoor use
flexible in cold temperatures
halogen-free
the materials used during manufacturing are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA
mm2 |
NOMINAL THICKNESS OF INSULATION
mm |
NOMINAL THICKNESS OF OUTER SHEATH
mm |
NOMINAL OVERALL DIAMETER
mm |
NOMINAL WEIGHT
kg/km |
| 2 | 1 | 0.8 | 0.9 | 7.6 | 64 |
| 2 | 1.5 | 0.8 | 1.0 | 8.4 | 82 |
| 2 | 2.5 | 0.9 | 1.1 | 9.8 | 134 |
| 2 | 4 | 1.0 | 1.2 | 11.4 | 168 |
| 3 | 1 | 0.8 | 1.0 | 8.3 | 79 |
| 3 | 1.5 | 0.8 | 1.0 | 8.9 | 97 |
| 3 | 2.5 | 0.9 | 1.1 | 10.4 | 166 |
| 3 | 4 | 1.0 | 1.3 | 12.3 | 210 |
| 3 | 6 | 1.0 | 1.4 | 13.7 | 281 |
| 3 | 10 | 1.2 | 2.1 | 18.1 | 490 |
| 4 | 1 | 0.8 | 1.0 | 9.0 | 94 |
| 4 | 1.5 | 0.8 | 1.1 | 9.9 | 121 |
| 4 | 2.5 | 0.9 | 1.2 | 11.6 | 210 |
| 4 | 4 | 1.0 | 1.4 | 13.7 | 262 |
| 4 | 6 | 1.0 | 1.5 | 15.2 | 351 |
| 4 | 10 | 1.2 | 2.2 | 19.9 | 607 |
| 5 | 1 | 0.8 | 1.1 | 10.0 | 113 |
| 5 | 1.5 | 0.8 | 1.2 | 11.0 | 146 |
| 5 | 2.5 | 0.9 | 1.3 | 12.9 | 256 |
| 5 | 4 | 1.0 | 1.5 | 15.2 | 318 |
| 5 | 6 | 1.0 | 1.6 | 16.8 | 424 |
| 5 | 10 | 1.2 | 2.3 | 23.9 | 855 |
| 5 | 16 | 1.2 | 2.6 | 27.5 | 1208 |
