This wire is well suited for internal wiring in lamps, instruments, control panels and distributors in dry locations. It should be installed in surface mounted or embedded conduits.

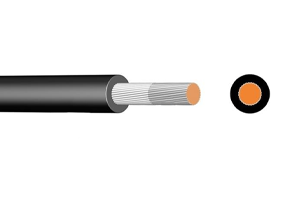

Construction: fine-stranded tinned or barecopper core insulation of a heat resistant rubber compound
Standards: adapted DIN VDE 0282 Part 7 HD 22.7 S2:1995 + A1 :1999+A2:2004 DIN EN 60228 Class 5 (construction)
Nominal voltage Uo/U : 450 / 750 Volt
Test voltage: 2500 [V] AC
Temperature range in motion : -25°C till +110°C
Operating temperature short circuit : 260°C
Short circuit time max. ：5[sec] Bending radius: 7 min. x diameter
Flammability standard: EN 60332-1-2
Standards: adapted DIN VDE 0282 Part 7 HD 22.7 S2:1995 + A1 :1999+A2:2004 DIN EN 60228 Class 5 (construction)
Nominal voltage Uo/U : 450 / 750 Volt
Test voltage: 2500 [V] AC
Temperature range in motion : -25°C till +110°C
Operating temperature short circuit : 260°C
Short circuit time max. ：5[sec] Bending radius: 7 min. x diameter
Flammability standard: EN 60332-1-2
| Nominal cross section mm² | Colours | from stock | Copper figure kg/km | Cond. construction (appr. value) mm | Overall diameter mm | Weight appr. kg / km |
| 1,5 | bk | 15 | 30 x 0,26 | 3,4 | 25 | |
| 2,5 | bk | 25 | 50 x 0,26 | 4,0 | 40 | |
| 4 | bk | 40 | 56 x 0,31 | 5,0 | 60 | |
| 6 | bk | 60 | 84 x 0,31 | 5,5 | 80 | |
| 10 | bk | ˜ | 100 | 80 x 0,41 | 7,0 | 125 |
| 16 | bk | 160 | 126 x 0,41 | 8,0 | 190 | |
| 25 | bk | 250 | 196 x 0,41 | 10,0 | 292 | |
| 35 | bk | 350 | 276 x 0,41 | 11,5 | 420 |
