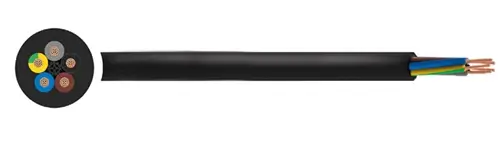

Construction
Conductor: Class 5 flexible plain copper to BS EN 60228:2005(previously BS6360)
Insulation: EPR(Ethylene Propylene Rubber) Type E14 to BS7655
Sheath: PCP(Polychioroprene) Type EM3 to BS7655
Sheath Color: Black
Voltage: 450/750V
Temperature Rating: conductor operation temperature -30°C to +60°C(85°C max)
Minimum Bending Radius: Up to 25mm2:6xoverall diameter;
Above to 25mm2:8xoverall diameter
Standards: BS7919 CENELEC HD22 4S4
Core identification:
Application:
These cables are designed to provide high flexibility and have the capacity to withstand weather oils/greases, mechanical and thermal stresses. Applications include handling equipment, mobile power supplies, work sites, stage and audio visual equipment, port areas and dams. Also for use in drainage and water treatment, cold environments and severe industrial Environments.

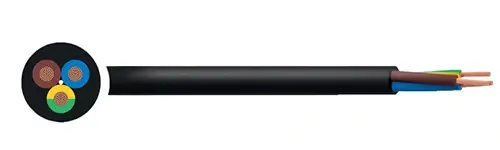

H05RN-F Cables
A 300/500V cable, referred to by the harmonised designation H05RN-F, is also available upon request, available in core sizes 0.75mm and 1.0mm. H05RN-F cables have a smaller conductor cross-sectional size than the H07RN-F cable. Full technical details on the H05RN-F is available from our technical team.
H07RN-F Cable Parameter Sheet:
Huadong cable group regularly supplies flexible trailing cables including H07RN-F cables with 2-core, 3-core, 4-core up to 12-cores and above. Compatible A2 brass and A2PL plastic cable glands are also available.
