Applications
Suitable for use in conduit and for fixed, protected installation. For installations where fire, smoke emission and toxic fume create a potential risk to life and equipment.
Voltage Rating Uo/U: 450/750V
Temperature Rating: Fixed: 0°C to +90°C

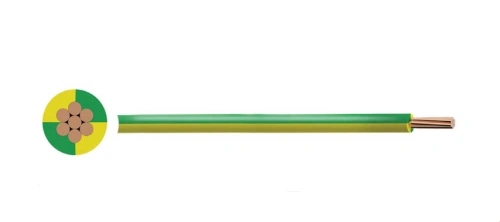

Conductor: Class 2 stranded copper conductor)
Insulation: LSZH (Low Smoke Zero Halogen)
Insulation Colour:
Red Black Blue Yellow Orange White
Green/Yellow Grey Brown Violet Pink
| NOMINAL CROSS SECTIONAL AREA | NOMINAL THICKNESS OF INSULATION | NOMINAL WEIGHT |
| mm2 | mm | kg/km |
| 1.5 | 0.7 | 22 |
| 2.5 | 0.8 | 35 |
| 4 | 0.8 | 50 |
| 6 | 0.8 | 72 |
| 10 | 1 | 121 |
| 16 | 1 | 182 |
| 25 | 1.2 | 285 |
| 35 | 1.2 | 390 |
| 50 | 1.4 | 510 |
| 70 | 1.4 | 710 |
| 95 | 1.6 | 980 |
| 120 | 1.6 | 1220 |
| 150 | 1.8 | 1500 |
| 185 | 2 | 1910 |
| 240 | 2.2 | 2490 |
| 300 | 2.4 | 3100 |
| 400 | 2.6 | 3950 |
| 500 | 2.8 | 5000 |
| 630 | 2.8 | 6350 |
