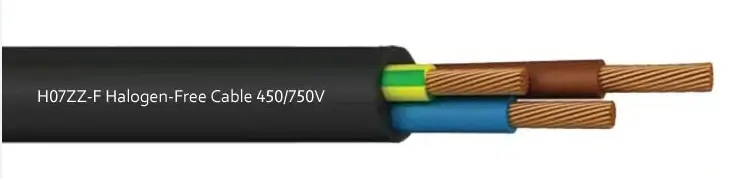

H07ZZ-F Cable Construction
Voltage: 450/750V
Conductor: Flexible copper (Class 5)
Insulation: Low Smoke Zero Halogen (LSZH) cross-linked compound Type EI8
Outer Sheath : LSZH cross-linked compound Type EM8The temperature rating of the H07ZZ-F is -5oC to +50oC when flexed and -20oC to +90oC when fixed.
Application:
The H07ZZ-F cable is used across a broad range of applications across almost all industry sectors including Airports, Automation & Process Control, Communications & Telecommunication, Marine & Offshore, Oil, Gas & Petrochemicals, Renewable Energy, and Water Treatment.
Description:
H07ZZ-F halogen free flexible multi-core power cable is designed for applications with a voltage rating of 450/750V that are subjected to medium mechanical stresses such as supplying mobile power units, UPS installations, stage lighting and audio visual equipment. The H07ZZ-F is suitable for installation both indoors and outdoors. It has a Low Smoke Zero Halogen (LSZH) insulation and over sheath, making it suitable for installation in buildings or industrial plants with a high density of people, and where fire, smoke emission and toxic fumes create a potential threat to life and equipment.
H07ZZ-F Cable Parameter
Some of our most popular H07ZZ-F cable sizes include:
| Number of cores and mm² per conductor | Outer diameter [mm] | Copper index (kg/km) | Weight (kg/km) |
| 3 G 1.5 | 9.2 – 11.9 | 43.2 | 125 |
| 4 G 1.5 | 10.2 – 13.1 | 57.6 | 155 |
| 5 G 1.5 | 11.2 – 14.4 | 72 | 190 |
| 14 G 1.5 | 18.8 – 21.3 | 201.6 | 570 |
| 18 G 1.5 | 20.7 – 26.3 | 259.2 | 750 |
| 3 G 2.5 | 10.9 – 14 | 72 | 185 |
| 4 G 2.5 | 12.1 – 15.5 | 96 | 235 |
| 5 G 2.5 | 13.3 – 17 | 120 | 290 |
| 7 G 2.5 | 17.1 – 21.8 | 168 | 520 |
| 14 G 2.5 | 22.2 – 25 | 336 | 860 |
| 4 G 4.0 | 14 – 17.9 | 153.6 | 325 |
| 5 G 4.0 | 15.6 – 19.9 | 192 | 410 |
| 4 G 6.0 | 15.7 – 20 | 230.4 | 440 |
| 5 G 6.0 | 17.5 – 22.2 | 288 | 550 |
| 4 G 10.0 | 20.9 – 26.5 | 384 | 770 |
| 5 G 10.0 | 22.9 – 29.1 | 480 | 950 |
| 4 G 16.0 | 23.8 – 30.1 | 614.4 | 1070 |
| 4 G 25.0 | 28.9 – 36.6 | 960 | 1570 |
| 4 G 35.0 | 32.5 – 41.1 | 1344 | 2040 |
| 4 G 50.0 | 37.7 – 47.5 | 1920 | 2810 |
The H07ZZ-F cable is also available in 2-core, 3-core, 4-core, 5-core and up to 37 cores as standard. Please refer to our technical specification sheet for further information.
