High Voltage Automotive Cable

Voltage: 1500V
Conductor: Stranded bare aluminium
Insulation: Silicon rubber
Screen1: Tinned copper braiding, covering 85 %
Screen2: ALU-PET foil
Sheath: Silicon rubber
Coating: Synthetic yarn braiding ,silicone impregnated
Temperature range: – 55 °C ～+ 180°C(3000h)
Oil-resistant: ISO6722
Gases corrosivity：IEC 60754-1, IEC 60754-2
Flexibility of cable: Very good
Chemical resistance: Good
Application standards: LV 216-2 ISO 6722 ISO 14572 Class E
Applicaiton: to use as connection of HV batteries and electric motors

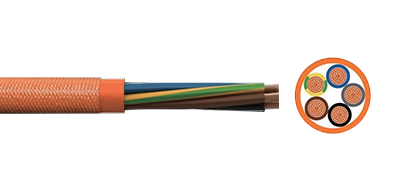

Voltage: 1500V
Conductor: Stranded bare copper
Insulation: Silicon rubber
Inner sheath: Silicon rubber
Sheath: Silicon rubber
Coating: Synthetic yarn braiding ,silicone impregnated
Temperature range: – 55 °C ～+ 180°C(3000h)
Flame retardant: IEC60332-1
Oil-resistant: ISO6722
Gases corrosivity：IEC 60754-1, IEC 60754-2
Flexibility of cable: Very good
Chemical resistance: Good
Application standards: LV 216-2 ISO 6722 ISO 14572 Class E
RoHS compliant
Applicaiton: With special fiber braiding sheathed design, cables are highly tear resistance, highly abrasion resistance, and highly oil resistance, can be used in tough road conditions, also can be used for hybrid electric vehicle, connection of HV batteries and electric motors.

Voltage: 1500V
Conductor: Stranded bare copper
Insulation: irradiated Cross-linked Polyethylene
Sheath: irradiated Cross-linked Polyethylene
Temperature range: –40 °C ～+ 125°C(3000h)
Flame retardant: IEC60332-1
Oil-resistant: ISO6722
Gases corrosivity: IEC 60754-1, IEC 60754-2
Flexibility of cable: Very good
Chemical resistance: Good
Application standards: LV 216-2 ISO 6722 ISO 14572 Class C
Applicaiton:  to use as connection of HV batteries and electric motors

Voltage: 1500V
Conductor: Stranded bare copper
Insulation: irradiated Cross-linked Polyethylene
Screen1: Tinned copper braiding, covering 85 %
Screen2: ALU-PET foil
Sheath: irradiated Cross-linked Polyethylene
Temperature range: –40 °C ～+ 125°C(3000h)
Flame retardant: IEC60332-1
Oil-resistant: ISO6722
Gases corrosivity: IEC 60754-1, IEC 60754-2
Flexibility of cable: Very good
Chemical resistance: Good
Application standards: LV 216-2 ISO 6722 ISO 14572 Class C
Applicaiton:  to use as connection of HV batteries and electric motors

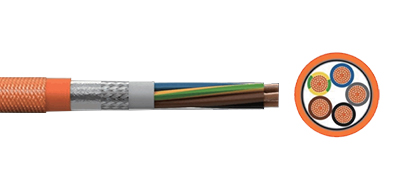

Voltage: 1500V
Conductor: Stranded bare copper
Insulation: Silicon rubber
Inner sheath: Silicon rubber
Screen1: Tinned copper braiding, covering 85 %
Screen2: Al- PET foil
Sheath: Silicon rubber
Coating: Synthetic yarn braiding ,silicone impregnated
Temperature range: – 55 °C ～+ 180°C(3000h)
Flame retardant: IEC60332-1
Oil-resistant: ISO6722
Gases corrosivity：IEC 60754-1, IEC 60754-2
Flexibility of cable:Very good
Chemical resistance: Good
Application standards: LV 216-2 ISO 6722 ISO 14572 Class E
Applicaiton:  to use as connection of HV batteries and electric motors

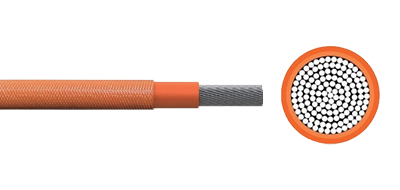

Voltage: 1500V
Conductor: Stranded bare aluminium
Insulation: Silicon rubber
Sheath: Silicon rubber
Coating: Synthetic yarn braiding ,silicone impregnated
Temperature range: – 55 °C ～+ 180°C(3000h)
Flame retardant: IEC60332-1
Oil-resistant: ISO6722
Gases corrosivity：IEC 60754-1, IEC 60754-2
Flexibility of cable: Very good
Chemical resistance: Good
Application standards: LV 216-1 ISO 6722 Class E
Applicaiton:  to use as connection of HV batteries and electric motors

Voltage: 1500V
Conductor: Stranded bare copper
Insulation: Silicon rubber, acc. to ISO 6722
Inner sheath: Silicon rubber, acc. to ISO 6722
Screen1: Tinned copper braiding, covering 85 %
Screen 2:Al- PET foil
Sheath: Silicon rubber, acc. to ISO 6722
Coating: Synthetic yarn braiding ,silicone impregnated
Temperature range: – 55 °C ～+ 180°C(3000h)
Flame retardant: IEC60332-1
Oil-resistant: ISO6722
Gases corrosivity：IEC 60754-1, IEC 60754-2
Flexibility of cable:Very good
Chemical resistance: Good
Application standards: LV 216-2 ISO 6722 ISO 14572 Class E
Applicaiton:  to use as connection of HV batteries and electric motors

Voltage: 1500V
Conductor: Stranded bare copper
Insulation: Silicon rubber
Coating: Synthetic yarn braiding ,silicone impregnated
Temperature range: – 55 °C ～+ 180°C(3000h)
Flame retardant: IEC60332-1
Oil-resistant: ISO6722
Gases corrosivity：IEC 60754-1, IEC 60754-2
Flexibility of cable: Very good
Chemical resistance: Good
Application standards: LV 216-1 ISO 6722 Class E
Applicaiton:  to use as connection of HV batteries and electric motors
