Application
HTA cables are suitable for MV power cable applications, especially for connections in transformer stations and power plants, between overhead lines and transformer stations.
UV resistance, RODENT PROOF/EVA flame retardant sheath (protection against rodents and termites)
Standard
NFC 33-226, BS 6622, IEC 60502-2, IEC 60228
Construction
| 1 | Conductor: circular stranded aluminum or copper conductor |
| 2 | Semi-conductive conductor screen |
| 3 | Insulation: XLPE (cross-linked polyethylene) |
| 4 | G Nipple, semi-conductive coating |
| 5 | Longitudinal aluminum plastic tape |
| 6 | Outer sheath: PE sheath |
| 7 | Color: Black |
| Assembly | HTA CIS cable is used for 1~35kV distribution network. |

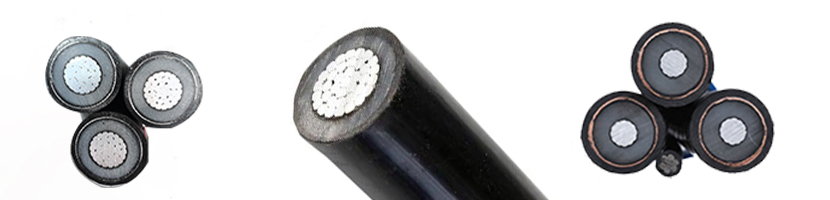

Single core 20 kv htc cis abc cable
3+1 core 20 kv hta cis abc cable

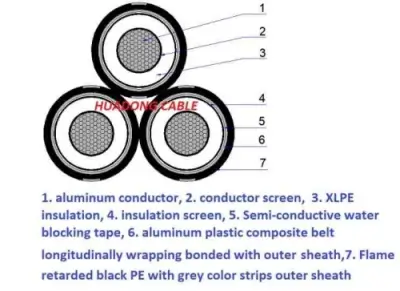

Product Drawing
| NF C33-226 12/20 kV Section | Outer Diameter | Max DC resists./Km | Max.Tensile Strength | Bending radius | Weight Approx. | |
| (mm) | (mm) | (DaN) | (mm) | (Kg/km) | ||
| Single core cables | ||||||
| 50 | 29 | 0.641 | 150 | 377 | 754 | 700 |
| 95 | 32 | 0.32 | 285 | 416 | 832 | 950 |
| 150 | 32 | 0.206 | 450 | 416 | 832 | 1000 |
| 240 | 36.5 | 0.125 | 720 | 475 | 950 | 1400 |
| 400 | 42 | 0.078 | 1200 | 546 | 1092 | 1950 |
| 630 | 52.5 | 0.047 | 1890 | 683 | 1365 | 3100 |
| 1200 | 66 | 0.025 | 360o | 858 | 1716 | 5200 |
| 3 cores grouped cables | ||||||
| 3x1x50 | 62.5 | 0.641 | 450 | 377 | 754 | 2100 |
| 3x1x95 | 69 | 0.32 | 855 | 416 | 832 | 2800 |
| 3x1x150 | 69 | 0.206 | 1350 | 416 | 832 | 3050 |
| 3x1x240 | 78.5 | 0.125 | 2160 | 475 | 950 | 4150 |
| 3x1x400 | 90 | 0.078 | 3600 | 546 | 1092 | 5800 |
