APPLICATION
J-Y(St)Y: For telecommunication systems for transmission of data and signals
J-H(st)H: Low-smoke. zero-halogen communication cable with improved flame-retardance. Primarily for use in buildings with a high concentration of people or material assets. For the connection of communication units indoors in wet and dry rooms on and under plaster. For outdoor installation the cable must be protected from sunlight.
JE-H(St)H FE180-E30: For signal transmission within systems for measuring, control, data, and regulation technology and for use as an installation cable in fire hazard rooms with a high concentration of people material assets and for installation of fire survival cable systems according to DIN 4102 part 12. For fixed installation in dry and wet rooms.

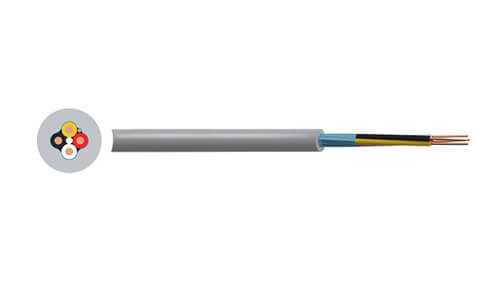

J-Y(St)Y Screened Telephone Cable
Voltage: 300V
Temperature Rating Fixed: -30°C to +70°C
Minimum Bending Radius: 8 x overall diameter
Conductor: Class 1 solid copper
Insulation: PVC
Screen: Duplex tape and drain wire
Sheath: PVC
Sheath Colour: Grey
STANDARDS: VDE 0815

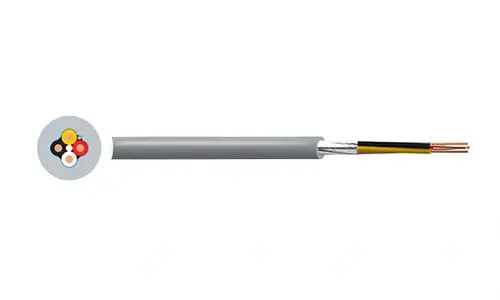

J-H(St)H FRNC Communication Cable
Voltage: 300V
Temperature Rating Fixed: -30°C to +70°C
Minimum Bending Radius: 7.5 x overall diameter
Conductor: Class 1 Solid Bare Coppe
Insulation: Flame Retardant Non-Corrosive LSZH compound
Screen: Plastic Coated Aluminium Foil
Drain Wire: Solid Copper
Sheath: Flame Retardant Non-Corrosive LSZH compound
Sheath Colour: Grey
STANDARDS: VDE 0815

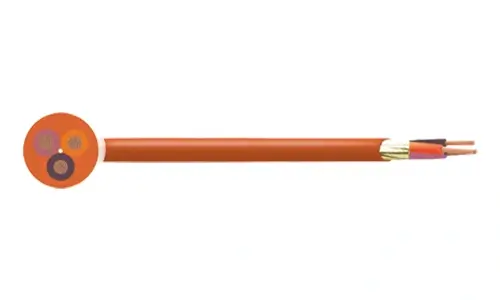

JE-H(St)H FE180-E30 Communication Cable
Voltage Rating: 225V
Maximum Operating Temperature Fixed: -5°C to +50°C
Minimum Bending Radius Fixed: 7.5 x overall diameter
Conductor: Class 1 Solid Tinned Copper
Insulation: Flame Retardant Non-Corrosive compound
Filler: LSZH (Low Smoke Zero Halogen)
Screen: Plastic Coated Aluminium Foil
Sheath: Flame Retardant Non-Corrosive compound
STANDARDS: VDE 0815, DIN 4102, DIN EN 61034/IEC 61034,
DIN EN 50267/IEC 60754
| J-Y(St)Y | ||
| NO. OF PAIRS | NOMINAL DIAMETER OF CONDUCTORS mm | NOMINAL WEIGHT kg/km |
| 1 | 0.6 | 30 |
| 1 | 0.8 | 40 |
| 2 | 0.6 | 40 |
| 2 | 0.8 | 60 |
| 3 | 0.6 | 50 |
| 3 | 0.8 | 80 |
| 4 | 0.6 | 60 |
| 4 | 0.8 | 100 |
| 5 | 0.6 | 70 |
| 5 | 0.8 | 120 |
| 6 | 0.6 | 80 |
| 6 | 0.8 | 140 |
| 8 | 0.6 | 90 |
| 8 | 0.8 | 170 |
| 10 | 0.6 | 110 |
| 10 | 0.8 | 220 |
| 12 | 0.6 | 130 |
| 12 | 0.8 | 250 |
| 16 | 0.6 | 160 |
| 16 | 0.8 | 320 |
| 20 | 0.6 | 190 |
| 20 | 0.8 | 380 |
| 50 | 0.6 | 390 |
| 50 | 0.8 | 800 |
| 100 | 0.6 | 780 |
| 100 | 0.8 | 1600 |
| J-H(St)H FRNC | ||
| NO. OF PAIRS | NOMINAL DIAMETER OF CONDUCTORS mm | NOMINAL WEIGHT kg/km |
| 2 | 0.6 | 49 |
| 2 | 0.8 | 69 |
| 4 | 0.6 | 92 |
| 4 | 0.8 | 136 |
| 6 | 0.6 | 101 |
| 6 | 0.8 | 152 |
| 10 | 0.6 | 146 |
| 10 | 0.8 | 230 |
| 20 | 0.6 | 310 |
| 20 | 0.8 | 508 |
| 30 | 0.6 | 352 |
| 30 | 0.8 | 599 |
| 40 | 0.6 | 464 |
| 40 | 0.8 | 787 |
| 50 | 0.6 | 573 |
| 50 | 0.8 | 973 |
| 60 | 0.6 | 661 |
| 60 | 0.8 | 1121 |
| 80 | 0.6 | 876 |
| 80 | 0.8 | 1476 |
| 100 | 0.6 | 1056 |
| 100 | 0.8 | 1805 |
| JE-H(St)H FE180-E30 | ||
| NO. OF PAIRS | NOMINAL DIAMETER OF CONDUCTORS mm | NOMINAL WEIGHT kg/km |
| 2 | 0.8 | 76 |
| 4 | 0.8 | 130 |
| 8 | 0.8 | 232 |
| 12 | 0.8 | 318 |
| 16 | 0.8 | 430 |
| 20 | 0.8 | 514 |
| 32 | 0.8 | 730 |
| 40 | 0.8 | 962 |
| 52 | 0.8 | 1200 |
