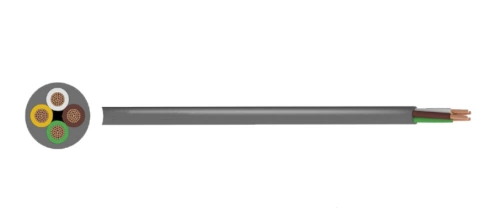

LiHH LSZH Control Cable
Application: LSZH (Low Smoke Zero Halogen) electronic cables are used for connection and signal transfer in measuring and control equipment. For indoor installation in dry and wet rooms, for installation under plaster.
Voltage Rating: 250/250V
Conductor: Generally to Class 5 fine-stranded copper conductor
Insulation: LSZH (Low Smoke Zero Halogen)
Sheath: LSZH (Low Smoke Zero Halogen)
Outer Sheath Colour: Grey
Get a free quote by e-mail: sales@huadongcablegroup.com
LiHCH Screened LSZH Cable
Application: For signal transmission between electronic devices, in computer systems or process control units with requirements to electromagnetic compatibility
Voltage Rating: 250V
Conductor: Generally to Class 5 flexible stranded copper
Insulation: LSZH (Low Smoke Zero Halogen)
Screen: TCWB (Tinned Copper Wire Braid)
Outer Sheath: LSZH (Low Smoke Zero Halogen)
Outer Sheath Colour: Grey
Get a free quote by e-mail: sales@huadongcablegroup.com
| LiHH LSZH Control Cable | |||||
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA | NOMINAL WEIGHT | NO. OF CORES | NOMINAL CROSS SECTIONAL AREA | NOMINAL WEIGHT |
| mm2 | kg/km | mm2 | kg/km | ||
| 2 | 0.14 | 13 | 7 | 0.5 | 71 |
| 2 | 0.25 | 20 | 7 | 0.75 | 91 |
| 2 | 0.34 | 26 | 8 | 0.14 | 30 |
| 2 | 0.5 | 30 | 8 | 0.25 | 50 |
| 2 | 0.75 | 40 | 8 | 0.34 | 65 |
| 2 | 1 | 50 | 10 | 0.14 | 36 |
| 2 | 1.5 | 59 | 10 | 0.25 | 58 |
| 3 | 0.14 | 16 | 10 | 0.34 | 80 |
| 3 | 0.25 | 23 | 10 | 0.5 | 101 |
| 3 | 0.34 | 30 | 10 | 0.75 | 137 |
| 3 | 0.5 | 36 | 12 | 0.14 | 44 |
| 3 | 0.75 | 54 | 12 | 0.25 | 66 |
| 3 | 1 | 57 | 12 | 0.34 | 94 |
| 3 | 1.5 | 72 | 12 | 0.5 | 117 |
| 4 | 0.14 | 18 | 12 | 0.75 | 166 |
| 4 | 0.25 | 27 | 15 | 0.14 | 57 |
| 4 | 0.34 | 38 | 15 | 0.25 | 80 |
| 4 | 0.5 | 44 | 15 | 0.34 | 115 |
| 4 | 0.75 | 60 | 15 | 0.5 | 145 |
| 4 | 1 | 67 | 16 | 0.25 | 85 |
| 4 | 1.5 | 87 | 18 | 0.14 | 65 |
| 5 | 0.14 | 22 | 18 | 0.25 | 95 |
| 5 | 0.25 | 32 | 18 | 0.34 | 135 |
| 5 | 0.34 | 44 | 18 | 0.5 | 171 |
| 5 | 0.5 | 57 | 20 | 0.14 | 73 |
| 5 | 0.75 | 73 | 21 | 0.14 | 76 |
| 5 | 1 | 82 | 21 | 0.25 | 105 |
| 6 | 0.14 | 25 | 21 | 0.34 | 154 |
| 6 | 0.25 | 39 | 21 | 0.5 | 197 |
| 7 | 0.14 | 26 | 25 | 0.14 | 90 |
| 7 | 0.25 | 41 | 25 | 0.25 | 130 |
| 7 | 0.34 | 59 | 25 | 0.34 | 180 |
| 7 | 0.34 | 59 | 25 | 0.5 | 230 |
| LiHCH Screened LSZH Cable | |||||
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA | NOMINAL WEIGHT | NO. OF CORES | NOMINAL CROSS SECTIONAL AREA | NOMINAL WEIGHT |
| mm2 | kg/km | mm2 | kg/km | ||
| 2 | 0.14 | 22 | 7 | 0.14 | 39 |
| 2 | 0.25 | 24 | 7 | 0.25 | 51 |
| 2 | 0.34 | 30 | 7 | 0.34 | 75 |
| 2 | 0.5 | 38 | 7 | 0.5 | 86 |
| 2 | 0.75 | 45 | 7 | 0.75 | 120 |
| 2 | 1 | 72 | 7 | 1 | 171 |
| 2 | 1.5 | 90 | 7 | 1.5 | 220 |
| 3 | 0.14 | 25 | 8 | 0.14 | 41 |
| 3 | 0.25 | 29 | 8 | 0.25 | 58 |
| 3 | 0.34 | 33 | 8 | 0.34 | 84 |
| 3 | 0.5 | 47 | 8 | 0.5 | 135 |
| 3 | 0.75 | 60 | 10 | 0.14 | 54 |
| 3 | 1 | 90 | 10 | 0.25 | 81 |
| 3 | 1.5 | 115 | 10 | 0.34 | 106 |
| 4 | 0.14 | 28 | 10 | 0.5 | 129 |
| 4 | 0.25 | 35 | 10 | 0.75 | 169 |
| 4 | 0.34 | 59 | 12 | 0.14 | 74 |
| 4 | 0.5 | 62 | 12 | 0.25 | 117 |
| 4 | 0.75 | 92 | 12 | 0.34 | 133 |
| 4 | 1 | 109 | 12 | 0.5 | 148 |
| 4 | 1.5 | 153 | 12 | 0.75 | 196 |
| 5 | 0.14 | 32 | 16 | 0.14 | 90 |
| 5 | 0.25 | 41 | 16 | 0.25 | 124 |
| 5 | 0.34 | 56 | 16 | 0.34 | 160 |
| 5 | 0.5 | 76 | 25 | 0.14 | 135 |
| 5 | 0.75 | 97 | 25 | 0.25 | 161 |
| 5 | 1 | 126 | 25 | 0.34 | 232 |
| 5 | 1.5 | 176 | 18 | 0.5 | 210 |
| 6 | 0.14 | 35 | 18 | 0.75 | 327 |
| 6 | 0.25 | 49 | 25 | 0.5 | 319 |
| 6 | 0.34 | 59 | 25 | 0.75 | 454 |
| 6 | 0.5 | 84 | 25 | 0.75 | 454 |
