VG 95218 Marine Cable LMGSGO/ MGSGO/ LFMGSSGO/ FMGSGO/ LFMGSSGO/ LFMSGSGO

Marine Power Cable LMGSGO

VG 95218 Part 61

Conductor: Electrolytic, stranded, copper wire to DIN EN 60228 Class 2
Insulation: Halogen free cross linked polymeric compound
Core Identiffcation: According to VG 95218 part 61
Covering of Cores: At up to 4 cores wrapped foil or extruded compound; More than 4 cores wrapped polyester foil
Screen: Copper wire braiding screen with separating foil over and under braid
Outer Sheath: Halogen free, cross-linked elastomeric compound.

Application: Used as ffxed installation cable in light power, control, distribution and lighting electrical systems in most areas, below and above deck on Navy vessels. Comply the general requirements of BV 3400 (Speciffcation for Cable Systems of German Navy Vessels. These cables are not suitable for permanent installation in and under water.

Ships Power Cables MGSGO/MGGO

VG 95218 Part 60

sales@huadongcablegroup.com

CABLE STRUCTURE
Conductor: Electrolytic, stranded, copper wire to DIN EN 60228 Class 2 or Class 5
Insulation: Halogen free cross linked polymeric compound
Core Identiffcation: According to VG 95218 part 60
Common Covering: Halogen free compound. (only for MGSGO types B and D)
Separator: Polyester foil over the single core or over common covering over laid-up multi cores
Screen: Copper wire braiding screen with separating foil over braid (only for MGSGO types A, B and D)
Outer Sheath: Halogen free, cross-linked elastomeric compound.

Application: Used as ffxed installation cable in power, control and lighting electrical systems in most areas, below and above deck on Navy vessels.
Comply the general requirements of BV 3400 (Speciffcation for Cable Systems of German Navy Vessels. These cables are not suitable for permanent installation in and under water.

Marine Telecommunication Cable FMGSGO

VG 95218 Part 62

sales@huadongcablegroup.com

Conductor: Electrolytic, stranded, copper wire to DIN EN 60228 Class 2
Insulation: Halogen free cross linked polymeric compound
Core Identiffcation: According to VG 95218 part 62
Covering of Cores: Halogen free compound or binder tape
Screen: Copper wire braiding screen with separating foil over braid
Outer Sheath: Halogen free, cross-linked elastomeric compound.

Application: Used as ffxed installation cable in telecommunication, signal, radio, radar and information systems in most areas, below and above deck on Navy vessels. They are not designed for continuous installation in water. Comply the general requirements of BV 3400 (Speciffcation for Cable Systems of German Navy Vessels

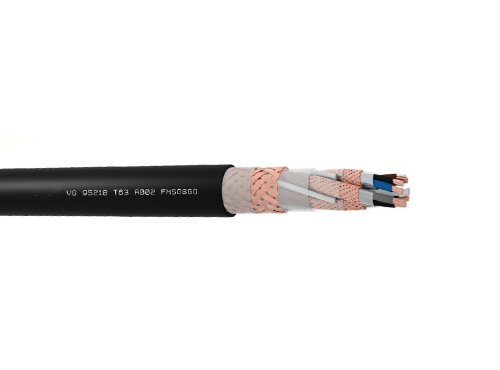

Halogen Free, Flame Retardant Light Telecom Marine Cable FMSGSGO

VG 95218 Part 63

sales@huadongcablegroup.com

Conductor: Electrolytic, stranded, copper wire to DIN EN 60228 Class 2
Insulation: Halogen free cross linked polymeric compound
Core Identiffcation: According to VG 95218 part 63
Individual Screen: Copper wire braiding screen with seperating foil under and over braid
Covering of Cabling: Wrapped polyester tape with an overlap coverage
Screen: Copper wire braiding screen with separating foil over braid
Outer Sheath: Halogen free, cross-linked elastomeric compound.

Halogen Free, Flame Retardant Light Telecom Marine Cable LFMGSSGO/LFMGSGO

VG 95218 Part 64

sales@huadongcablegroup.com

Conductor: Electrolytic, stranded, copper wire to DIN EN 60228 Class 2
Insulation: Halogen free cross linked polymeric compound
Core Identiffcation: According to VG 95218 part 64
Covering of Cabling: Wrapped polyester tape with an overlap coverage
Screen A: Copper wire braiding screen with separating foil over braid
Screen B: Copper wire brading screen with separating foil over braid. (Only for Type A, LFMGSSGO type)
Outer Sheath: Halogen free, cross-linked elastomeric compound.

Application: Used as ffxed installation cable in telecommunication, signal, radio, radar and information systems in most areas, below and above deck on Navy vessels. They are not designed for continuous installation in water.Comply the general requirements of BV 3400 (Speciffcation for Cable Systems of German Navy Vessels

Halogen Free, Flame Retardant Light Telecom Marine Cable LFMSGSGO

VG 95218 Part 65

sales@huadongcablegroup.com

Conductor: Electrolytic, stranded, copper wire to DIN EN 60228 Class 2
Insulation: Halogen free cross linked polymeric compound
Core Identiffcation: According to VG 95218 part 65
Individual Screen: Bare copper wire braiding screen with seperating foil under and over braid
Covering of Cabling: Wrapped polyester tape with an overlap coverage Screen Electrolytic, bare copper wire braiding screen with separating foil over braid
Outer Sheath: Halogen free, cross-linked elastomeric compound.

Halogen Free, Flame Retardant Light Telecom Marine Cable LFMSGSSGO

VG 95218 Part 66

sales@huadongcablegroup.com

Conductor: Electrolytic, stranded, copper wire to DIN EN 60228 Class 2
Insulation: Halogen free cross linked polymeric compound
Core Identiffcation: According to VG 95218 part 66
Individual Screen: Copper wire braiding screen over triples with seperating foil under and over braid
Cabling: The screened tripples laid up together in concentric layers. Fillers may be used in need
Covering of Cabling: Wrapped polyester tape with an overlap coverage
Screen A: Copper wire braiding screen with separating foil over braid
Screen B: Copper wire braiding screen with separating foli over braid
Outer Sheath: Halogen free, cross-linked elastomeric compound.

MGSGO/MGGO Cable Parameter

Cores x size	Number of the single wires (min)	Wall thickness of insulation nominal	Wall thickness of sheath	Outer Diameter (min- max.)		Cable Weight Approx.	Min. Bending Radius Fixed Installed	Conductor resistance at (20ºC) (max)	Insulation resistance (20ºC)(min)
No. x mm²	Number of the single wires (min)	mm	mm	mm	mm	kg/km	mm	(Ω/km)	(MΩ·km)
1 x 4	7	1,0	1,0	7,5	8,5	140	43	4,7	850
1 x 6	7	1,0	1,0	8,4	9,4	155	47	3,11	750
1 x 10	7	1,0	1,1	9,5	10,5	200	53	1,84	600
1 x 16	7	1,0	1,1	10,0	11,2	290	56	1,16	500
1 x 25	7	1,2	1,2	12,0	13,0	395	65	0,734	450
1 x 35	7	1,2	1,2	13,0	14,0	540	70	0,529	400
1 x 50	19	1,4	1,3	15,0	16,2	680	81	0,391	400
1 x 70	19	1,4	1,3	17,0	18,2	910	91	0,270	350
1 x 95	19	1,6	1,4	19,5	20,5	1210	103	0,195	350
1 x 95	660	1,6	1,4	19,6	21,0	1200	84	0,210	350
1 x 120	37	1,6	1,5	21,0	22,4	1500	112	0,154	300
1 x 120	845	1,6	1,5	21,8	23,0	1485	92	0,164	300
1 x 150	37	1,8	1,5	23,0	24,5	1785	123	0,126	300
1 x 150	1060	1,8	1,5	24,0	25,2	1825	101	0,132	300
1 x 185	37	2,0	1,6	25,5	27,0	2200	135	0,100	300
1 x 185	1290	2,0	1,6	26,2	27,4	2170	110	0,108	300
1 x 240	61	2,2	1,7	29,0	30,5	2850	153	0,0762	300
1 x 240	1735	2,2	1,7	29,5	31,0	2780	124	0,0817	300
1 x 300	61	2,4	1,8	31,5	33,0	3250	165	0,0607	300
1 x 300	2100	2,4	1,8	32,5	34,0	3350	136	0,0654	300
2 x 1,5	7	1,0	1,2	11,5	12,7	255	64	12,2	1200
2 x 2,5	7	1,0	1,2	12,5	13,5	305	68	7,56	1000
2 x 4	7	1,0	1,2	13,4	14,7	355	74	4,7	850
2 x 6	7	1,0	1,3	14,7	16,0	440	80	3,11	750
2 x 10	7	1,0	1,3	16,2	17,9	565	90	1,84	600
2 x 16	7	1,0	1,4	19,0	20,5	775	103	1,16	500
2 x 25	7	1,2	1,5	22,5	24,0	1075	120	0,734	450
3 x 1,5	7	1,0	1,2	12,0	13,2	290	66	12,2	1200
3 x 2,5	7	1,0	1,2	13,0	14,2	350	71	7,56	1000
3 x 4	7	1,0	1,2	14,0	15,2	415	76	4,7	850
3 x 6	7	1,0	1,3	15,5	17,0	530	85	3,11	750
3 x 10	7	1,0	1,4	17,6	19,1	700	96	1,84	600
3 x 16	7	1,0	1,4	20,0	21,6	980	108	1,16	500
3 x 16	115	1,0	1,4	20,0	21,6	965	87	1,24	500
3 x 25	7	1,2	1,6	24,0	25,6	1455	128	0,734	450
3 x 25	175	1,2	1,6	24,0	25,6	1400	103	0,795	450
3 x 35	7	1,2	1,7	26,0	28,2	1850	141	0,529	400
3 x 35	250	1,2	1,7	26,2	28,4	1810	114	0,565	400
3 x 50	19	1,4	1,8	30,0	32,4	2270	162	0,391	400
3 x 50	360	1,4	1,8	31,0	33,2	2470	133	0,393	400
3 x 70	19	1,4	1,9	34,5	36,9	3260	185	0,270	350
3 x 70	490	1,4	1,9	36,0	38,2	3100	153	0,277	350
3 x 95	19	1,6	2,1	39,7	42,2	4200	211	0,195	350
3 x 95	660	1,6	2,1	41,6	43,8	4150	176	0,210	350
3 x 120	37	1,6	2,1	43,0	45,7	5350	229	0,154	300
3 x 120	845	1,6	2,1	44,5	46,5	5340	186	0,164	300
4 x 4	7	1,0	1,3	15,2	16,7	515	84	4,7	850
4 x 6	7	1,0	1,3	17,0	18,5	625	93	3,11	750
4 x 10	7	1,0	1,4	19,4	20,9	880	105	1,84	600
4 x 16	7	1,0	1,5	22,0	23,7	1235	119	1,16	500
4 x 16	115	1,0	1,5	22,0	23,7	1165	95	1,24	500
4 x 25	7	1,2	1,7	26,4	28,0	1800	140	0,734	450
4 x 25	175	1,2	1,7	26,4	28,2	1715	113	0,795	450
4 x 35	7	1,2	1,8	29,2	31,2	2315	156	0,529	400
4 x 35	1030	1,2	1,8	31,0	33,0	2400	132	0,565	400
4 x 50	19	1,4	1,9	33,5	36,0	3130	180	0,391	400
4 x 50	360	1,4	1,9	34,3	37,0	3155	148	0,393	400
4 x 70	19	1,4	2,1	38,2	40,9	4335	205	0,270	350
4 x 70	490	1,4	2,1	40,0	42,5	4385	170	0,277	350
4 x 95	19	1,6	2,3	44,2	46,7	5500	234	0,195	350
4 x 95	660	1,6	2,3	45,5	48,2	5685	193	0,210	350
5 G 2,5	7	1,0	1,3	16,0	17,5	460	88	7,56	1000
5 G 4	7	1,0	1,4	17,5	19,0	605	95	4,70	850
7 G 2,5	7	1,0	1,4	17,5	19,0	585	95	7,56	1000
7 G 2,5	7	1,0	1,4	17,5	19,0	585	95	7,56	1000
33 X 0,75	7	0,8	1,4	22,5	24,5	980	123	24,8	1200
33 x 0,75	7	0,8	1,4	22,5	24,5	980	123	24,8	1200
1 x 25	7	1,2	1,2	10,7	12,4	355	62	0,734	450
1 x 35	7	1,2	1,2	12,0	13,7	475	69	0,529	400
1 x 50	19	1,2	1,2	13,2	14,9	600	75	0,391	400
1 x 70	19	1,4	1,3	15,7	17,4	790	87	0,270	350
1 x 95	19	1,6	1,4	18,2	19,9	1085	100	0,195	350
1 x 95	660	1,6	1,4	18,3	20,0	1095	80	0,206	350
1 x 120	37	1,6	1,4	19,8	21,5	1200	108	0,154	300
1 x 120	845	1,6	1,5	20,1	21,8	1240	88	0,161	300
1 x 150	37	1,8	1,5	21,5	24,0	1625	120	0,126	300
1 x 150	1060	1,8	1,5	21,6	23,0	1640	92	0,129	300
1 x 185	1290	2,0	1,6	24,8	26,3	1950	106	0,106	300
1 x 240	1735	2,2	1,7	27,3	28,9	2510	116	0,080	300
1 x 300	2100	2,4	1,8	30,0	31,5	3025	126	0,064	300
19 X 6	73	0,7	1,8	29,4	30,8	1860	124	3,39	750
19 x 6	73	0,7	1,8	29,4	30,8	1860	124	3,39	750

Get a free quote by e-mail: sales@huadongcablegroup.com

LMGSGO Cable Parameter

Cores x size	Number of the single wires (min)	Wall thickness of insulation nominal	Wall thickness of sheath	Outer Diameter (min- max.)		Cable Weight Approx.	Min. Bending Radius Fixed Installed	Conductor resistance at (20ºC) (max)	Insulation resistance (20ºC)(min)
No. x mm²	Number of the single wires (min)	mm	mm	mm	mm	kg/km	mm	(Ω/km)	(MΩ·km)
2 x 1,5	7	0,4	0,8	7,0	8,0	102	40	12,2	600
2 x 2,5	7	0,4	0,8	7,7	8,8	138	44	7,56	500
3 x 1,5	7	0,4	0,8	7,2	8,4	120	42	12,2	600
3 G 1,5	7	0,4	0,8	7,2	8,4	120	42	12,2	600
3 x 2,5	7	0,4	0,8	8,0	9,4	170	47	7,56	500
3 G 2,5	7	0,4	0,8	8,0	9,4	170	47	7,56	500
4 x 1,5	7	0,4	0,8	7,8	9,4	150	47	12,2	600
4 x 2,5	7	0,4	0,8	8,7	10,4	205	52	7,56	500
5 x 1,5	7	0,4	0,8	8,3	9,6	170	48	12,2	600
5 G 1,5	7	0,4	0,8	8,3	9,6	170	48	12,2	600
5 G 2,5	7	0,4	1,0	10,5	12,0	215	60	7,56	500
7 x 1,5	7	0,4	1,0	9,3	10,8	225	54	12,2	600
7 G 1,5	7	0,4	1,0	9,3	10,8	225	54	12,2	600
7 x 2,5	7	0,4	1,0	10,3	12,0	300	60	7,56	500
7 G 2,5	7	0,4	1,0	10,3	12,0	300	60	7,56	500
10 x 1,5	7	0,4	1,0	10,8	12,5	290	63	12,2	600
10 G 1,5	7	0,4	1,0	10,8	12,5	290	63	12,2	600
12 x 1,5	7	0,4	1,0	12,0	13,5	330	68	12,2	600
14×1,5	7	0,4	1,0	12,7	14,2	370	71	12,2	600
16×1,5	7	0,4	1,0	13,2	14,8	420	74	12,2	600
19×1,5	7	0,4	1,0	13,9	15,3	480	77	12,2	600
24×1,5	7	0,4	1,0	15,5	17,5	625	88	12,2	600
27×1,5	7	0,4	1,0	16,6	18,3	685	92	12,2	600
33×1,5	7	0,4	1,0	17,5	19,5	815	98	12,2	600
37×1,5	7	0,4	1,0	20,0	22,0	950	110	12,2	600

Get a free quote by e-mail: sales@huadongcablegroup.com

FMGSGO Cable Parameter

Cores x size	Number of the single wires (min)	Wall thickness of insulation nominal	Wall thickness of sheath	Outer Diameter (min- max.)		Cable Weight Approx.	Min. Bending Radius Fixed Installed	Conductor resistance at (20ºC) (max)	Insulation resistance (20ºC)(min)
No. x mm²	Number of the single wires (min)	mm	mm	mm	mm	kg/km	mm	(Ω/km)	(MΩ·km)
1x2x0,75	7	0,4	0,8	6,0	7,2	62	36	53,2	800
2x2x0,75	7	0,4	0,8	6,7	8,0	97	40	53,2	800
4x2x0,75	7	0,4	1,0	9,6	11,2	190	56	53,2	800
6x2x0,75	7	0,4	1,0	10,8	12,5	230	63	53,2	800
8x2x0,75	7	0,4	1,0	11,9	13,6	300	68	53,2	800
10x2x0,75	7	0,4	1,0	13,7	15,4	335	77	53,2	800
14x2x0,75	7	0,4	1,0	14,9	16,7	450	84	53,2	800
16x2x0,75	7	0,4	1,0	16,1	18,1	505	91	53,2	800

Get a free quote by e-mail: sales@huadongcablegroup.com

FMSGSGO Cable Parameter

Cores x size	Number of the single wires (min)	Wall thickness of insulation nominal	Wall thickness of sheath	Outer Diameter (min- max.)		Cable Weight Approx.	Min. Bending Radius Fixed Installed	Conductor resistance at (20ºC) (max)	Insulation resistance (20ºC)(min)
No. x mm²	Number of the single wires (min)	mm	mm	mm	mm	kg/km	mm	(Ω/km)	(MΩ·km)
2x2x0,75	7	0,4	0,8	11,1	12,5	215	63	53,2	800
4x2x0,75	7	0,4	1,0	12,9	14,5	330	73	53,2	800
7x2x0,75	7	0,4	1,0	14,9	16,4	480	82	53,2	800
11x2x0,75	7	0,4	1,2	19,6	21,4	700	107	53,2	800
14x2x0,75	7	0,4	1,2	20,8	22,8	890	114	53,2	800
19x2x0,75	7	0,4	1,4	23,4	25,4	1120	127	53,2	800
24x2x0,75	7	0,4	1,4	26,4	28,4	1420	142	53,2	800

Get a free quote by e-mail: sales@huadongcablegroup.com

LFMSGSSGO Cable Parameter

Cores x size	Number of the single wires (min)	Wall thickness of insulation nominal	Wall thickness of sheath	Outer Diameter (min- max.)		Cable Weight Approx.	Min. Bending Radius Fixed Installed	Conductor resistance at (20ºC) (max)	Insulation resistance (20ºC)(min)
No. x mm²	Number of the single wires (min)	mm	mm	mm	mm	kg/km	mm	(Ω/km)	(MΩ·km)
5x3x0,4	7	0,2	1,0	12,2	13,9	360	70	57,5	1500
12x3x0,4	7	0,2	1,2	16,9	18,9	650	95	57,5	1500

Get a free quote by e-mail: sales@huadongcablegroup.com

LFMSGSGO Cable Parameter

Cores x size	Number of the single wires (min)	Wall thickness of insulation nominal	Wall thickness of sheath	Outer Diameter (min- max.)		Cable Weight Approx.	Min. Bending Radius Fixed Installed	Conductor resistance at (20ºC) (max)	Insulation resistance (20ºC)(min)
No. x mm²	Number of the single wires (min)	mm	mm	mm	mm	kg/km	mm	(Ω/km)	(MΩ·km)
2x2x0,4	7	0,2	0,8	9,3	10,5	150	53	115	1500
4x2x0,4	7	0,2	0,8	10,0	11,5	210	58	115	1500
7x2x0,4	7	0,2	0,9	12,0	13,7	320	69	115	1500
12x2x0,4	7	0,2	1,0	15,5	17,0	480	85	115	1500
19x2x0,4	7	0,2	1,0	18,4	20,4	715	102	115	1500
27x2x0,4	7	0,2	1,1	22,5	24,5	1000	123	115	1500

Get a free quote by e-mail: sales@huadongcablegroup.com

HUADONG CABLE GROUP SINCE 1999

Professional Cables and Wires Manufacturer in China

We can design cables according to your requirement

Verified Manufacturer
