Applications
Vertical Mineshaft TECK 90 cables are designed for vertical applications to prevent cable core slippage and are suitable for use in mineshaft and for environments that require self-supporting lengths. Typically used in Mining. Utilities, Industrial and Commercial applications.

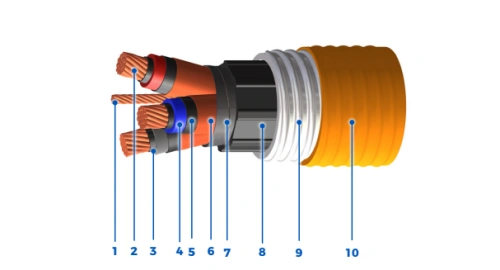

Mineshaft Type TECK 90 Armoured Cable 5kV for Vertical Installation, Shielded
1-Bonding Conductor
2- Stranded Bare Copper Conductors (Tin-coated Available)
3-Semiconducting Conductor Shield
4-XLPE (Rw90 Rated) Insulated Conductors
5-Semiconducting Insulation Shield
6-Copper Tape Shield
7-Cloth-backed Rubberized
Separator Tape
8-FR LAG PVC Inner Ribbed Protective Jacket
9- Steel Interlocked Armour (SIA)
10-FR LAG PVC Outer Protective Jacket
Get a free quote by e-mail: sales@huadongcablegroup.com

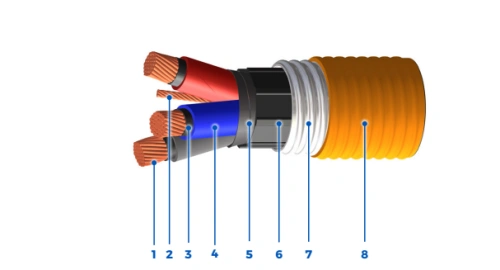

Mineshaft Type TECK 90 Armoured Cable 5kV for Vertical Installation, Unshielded
1- Stranded Bare Copper Conductors (Tin-coated Available)
2-Bonding Conductor
3-Semiconducting Conductor Shield
4- XLPE (Rw90 Rated) Insulated Conductors
5-Cloth-backed Rubberized Separator Tape
6-FR LAG PVC Inner Ribbed Protective Jacket
7- Steel Interlocked Armour (SIA)
8- FR LAG PVC Outer Protective Jacket
Get a free quote by e-mail: sales@huadongcablegroup.com
| Type TECK 90 Armoured Vertical Mineshaft, 5000 V, Shielded | |||
| NUMBER OF CONDUCTORS | CONDUCTOR SIZE | BONDING CONDUCTOR SIZE | CABLE WEIGHT |
| AWG or kcmil | AWG | lb|1000ft | kg|km | |
| 3 | 1/0 | 6 | 3579| 5326 |
| 3 | 2/0 | 6 | 4001|5954 |
| 3 | 3/0 | 4 | 4723|7029 |
| 3 | 4/0 | 4 | 5429|8079 |
| 3 | 250 | 4 | 6032 |8977 |
| 3 | 350 | 3 | 7453|11091 |
| 3 | 500 | 3 | 9673|14396 |
| 3 | 750 | 2 | 13234|19694 |
| Type TECK 90 Armoured Vertical Mineshaft, 5000 V, Unshielded | |||
| NUMBER OF CONDUCTORS | CONDUCTOR SIZE | BONDING CONDUCTOR SIZE | CABLE WEIGHT |
| AWG or kcmil | AWG | lb|1000ft | kg|km | |
| 3 | 1/0 | 6 | 3200 |4763 |
| 3 | 2/0 | 6 | 3601|5358 |
| 3 | 3/0 | 4 | 4148|6173 |
| 3 | 4/0 | 4 | 4907|7303 |
| 3 | 250 | 4 | 5539|8243 |
| 3 | 350 | 3 | 6903|10272 |
| 3 | 500 | 3 | 8854|13176 |
| 3 | 750 | 2 | 12480|18572 |
