Applications
Vertical Mineshaft TECK 90 cables are designed for vertical applications to prevent cable core slippage and are suitable for use in mineshaft and for environments that require self-supporting
lengths.Typically used in Mining, Utilities. Industrial and Commercial applications.
Voltage: 1000 V

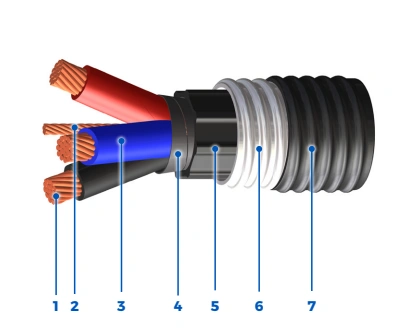

1 Stranded Bare (ASTM B8) Annealed Copper Conductors
2 Bonding Conductor
3 XLPE (RW90 Rated) Insulated Conductors
4 Cloth-backed Rubberized Separator Tape
5 FR LAG PVC Inner Ribbed Protective Jacket
6 Steel Interlocked Armour (SIA)
7 FR LAG PVC Outer Protective Jacket
Available in:
Variable Frequency Drive (VFD)
Custom insulation/jacket colours
Composite constructions
Aluminum conductors
Single conductor
| Number of Conductors | Conductor Size | Bonding Conductor Size | Cable Weight |
| AWG or kcmil | AWG | lb/1000ft | kg/km | |
| 3 | 1/0 | 6 | 2775|4130 |
| 3 | 2/0 | 6 | 3394 |5051 |
| 3 | 3/0 | 4 | 3929|5848 |
| 3 | 4/0 | 4 | 4536|6751 |
| 3 | 250 | 4 | 5311|7904 |
| 3 | 350 | 3 | 6722|10003 |
| 3 | 500 | 3 | 8617|12824 |
| 3 | 750 | 2 | 11951|17785 |
