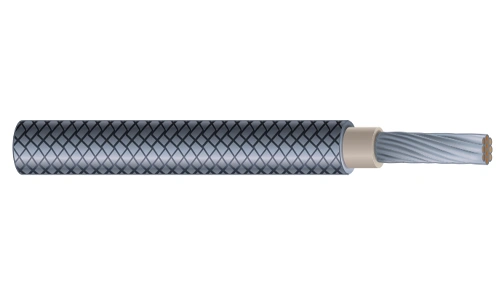

APPLICATION:
SRML Apparatus & Motor Lead Wire is for use in lighting fixtures; high wattage units such as sun lamps and therapeutic devises; control and power circuits, when high temperatures
and abrasive environments are present. SRML is suitable for use in applications -60°C up to 150°C and 600 volts.
CONDUCTORS: Stranded soft drawn tinned coated copper conductor per ASTM B-33 and B-8
INSULATION: Extruded silicone rubber insulation suitable for UV, ozone, and moisture exposure
JACKET: Braided fiberglass with a high temperature finish impregnated with a moisture, heat and flame resistant compound
COLOR CODE: Available in colors or striped combinations

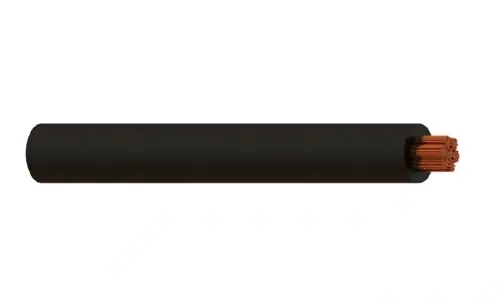

APPLICATION:
For use in internal wiring of electrical equipment, control panels, and appliances or for use as motor leads.
CONDUCTOR: Flexible stranded bare copper
INSULATION: Crosslinked Polyethylene (XLPE)
COLORS: All Colors available; Stripes available upon request

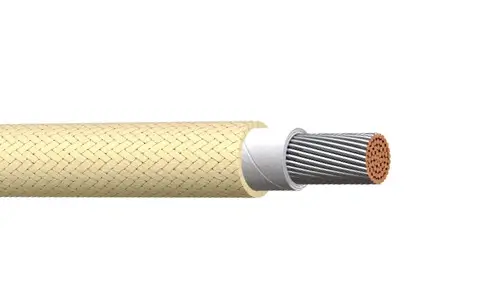

APPLICATION:
For use in high and low temperature environments where moisture and abrasion resistance is required in internal wiring of appliances and electrical equipment, motor lead land fixture applications.
CONDUCTORS: Tin-coated, soft annealed copper per ASTM B-33, Class H stranding per ASTM B-173
INSULATION: Silicone rubber
JACKET: K-fiber braid treated with a flame, heat moisture and abrasion resistant finish
FLAME TESTS: VW-1 Flame Test

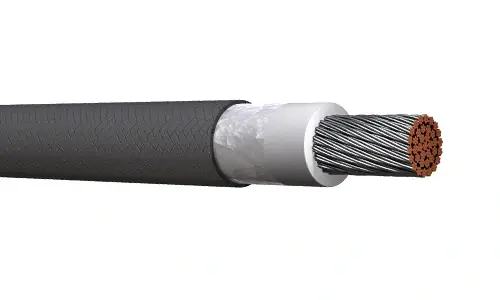

APPLICATION:
For use in damp and dry high temperature environments for electronic equipment and appliances, and as internal wiring in commercial and industrial heating and cooking equipment.
CONDUCTOR:
18 AWG – 10 AWG: Nickel-plated, soft annealed copper
per ASTM B-355, Class K stranding per ASTM B-174
8 AWG -4/0 AWG: Nickel-plated, soft annealed copper
per ASTM B-355, Class H stranding per ASTM B-173
INSULATION: TFE Teflon /ceramic tape
JACKET: TFE Teflon impregnated glass braid treated with a flame, heat, moisture and abrasion resistant finish
SRML Apparatus & Motor Lead Wire Datasheet
| Conductor Size |
No. of Strands |
Insulation Thickness |
Fiberglass Braid Thickness |
Overall Diameter |
|||
| AWG | inches | mm | inches | mm | inches | mm | |
| 18 | 16 | 0.031 | 0.79 | 0.006 | 0.15 | 0.121 | 3.07 |
| 16 | 26 | 0.031 | 0.79 | 0.006 | 0.15 | 0.131 | 3.33 |
| 14 | 41 | 0.031 | 0.79 | 0.006 | 0.15 | 0.142 | 3.61 |
| 12 | 65 | 0.031 | 0.79 | 0.006 | 0.15 | 0.161 | 4.09 |
| 10 | 105 | 0.047 | 1.19 | 0.006 | 0.15 | 0.214 | 5.44 |
| 8 | 133 | 0.062 | 1.57 | 0.009 | 0.23 | 0.309 | 7.85 |
| 6 | 133 | 0.062 | 1.57 | 0.009 | 0.23 | 0.355 | 9.02 |
HW055 Lead Wire & Power Cable Datasheet
| Size AWG | Number of Strands |
Insulation Thickness Mils |
Jacket Thickness Mils |
Overall Diameter Inches |
| 1 | 259 | 80 | 30 | 0.62 |
| 1/0 | 259 | 80 | 30 | 0.66 |
| 2/0 | 259 | 80 | 30 | 0.71 |
| 3/0 | 259 | 80 | 30 | 0.77 |
| 4/0 | 259 | 80 | 30 | 0.84 |
| 250 | 427 | 80 | 30 | 0.92 |
| 350 | 427 | 95 | 30 | 1.03 |
| 500 | 427 | 95 | 30 | 1.19 |
| 750 | 427 | 110 | 30 | 1.4 |
HW057 Appliance Apparatus and Motor Lead Wire Datasheet
| Size AWG | Number of Strands |
Insulation Thickness Mils |
Jacket Thickness Mils |
Overall Diameter Inches |
| 18 | 16 | 15 | 13 | 0.11 |
| 16 | 26 | 15 | 13 | 0.12 |
| 14 | 41 | 15 | 13 | 0.14 |
| 12 | 65 | 15 | 13 | 0.16 |
| 10 | 105 | 15 | 13 | 0.19 |
| 8 | 133 | 15 | 13 | 0.23 |
| 6 | 133 | 20 | 19 | 0.29 |
| 4 | 133 | 20 | 19 | 0.34 |
| 2 | 133 | 20 | 19 | 0.41 |
| 1/0 | 259 | 35 | 19 | 0.51 |
| 2/0 | 259 | 35 | 19 | 0.57 |
| 4/0 | 259 | 35 | 19 | 0.69 |
