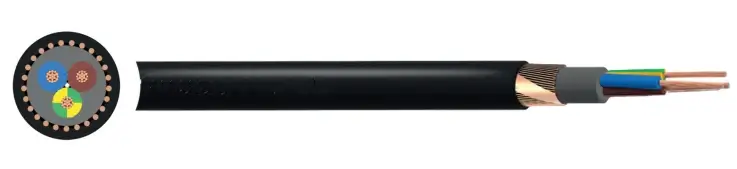

N2XCY CU 0.6/1kV XLPE Insulation PVC Cable
Application:
The N2XCY multicore power cable is designed for internal and external installation environments. Designed for internal and external use, it can be installed underground with additional protection. It is widely used in European power distribution applications, including transformer stations and industrial plants
Voltage: 0.6/1kV
Temperature Rating:
Maximum Operating: +90ºC
Maximum Short-Circuit: +250°C
Conductor: Class 2 Stranded copper
Insulation: XLPE
Filler: PVC
Concentric Conductor: Copper
Tape: Protective Copper Tape
Outer Sheath: PVC (Polyvinyl chloride)
Outer Sheath Colour: Black
STANDARDS:
IEC 60502-1, VDE 0276-603, IS 1516.1
Flame retardant according to IEC 60332-1

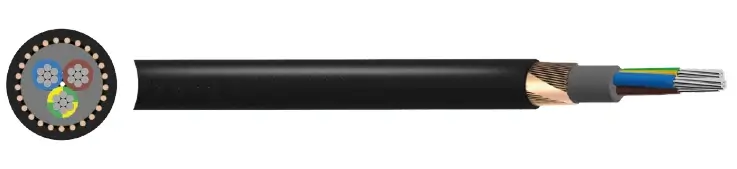

NA2XCY AL 0.6/1kV XLPE Insulation PVC Cable
Application:
The NA2XCY cable is suitable for fixed wiring, externally and internally including in cable ducts. It is commonly specified in European power distribution applications, including transformer stations and industrial plants where a more lightweight cable is more suited to the design but where the installation has no space constraints.
Voltage: 0.6/1kV
Temperature Rating:
Maximum Operating: +90ºC
Maximum Short-Circuit: +250°C
Conductor: Class 2 Stranded copper
Insulation: XLPE
Bedding: PVC
Metallic Screen: Copper Wire and Tape
Outer Sheath: PVC (Polyvinyl chloride)
Outer Sheath Colour: Black
STANDARDS:
IEC 60502-1, VDE 0276-603, IS 1516.1
Flame retardant according to IEC 60332-1
N2XCY CU Cable Partial Data Table
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL WEIGHT kg/km |
| 2 | 1.5/1.5 | 186 |
| 2 | 16/10 | 801 |
| 2 | 35/16 | 1312 |
| 2 | 150/70 | 4897 |
| 2 | 240/120 | 7923 |
| 2 | 300/150 | 9819 |
| 3 | 4/4 | 336 |
| 3 | 120/70 | 5526 |
| 3 | 185/95 | 8108 |
| 4 | 35/16 | 2059 |
| 4 | 120/70 | 6501 |
| 4 | 300/150 | 15709 |
| 5 | 50/25 | 3453 |
| 7 | 2.5/2.5 | 432 |
| 8 | 1.5/1.5 | 388 |
| 10 | 2.5/2.5 | 616 |
| 12 | 1.5/1.5 | 507 |
| 14 | 2.5/2.5 | 740 |
| 16 | 1.5/1.5 | 612 |
| 19 | 2.5/2.5 | 916 |
| 21 | 1.5/1.5 | 745 |
| 24 | 2.5/2.5 | 1132 |
NA2XCY AL Cable Partial Data Table
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm2 | NOMINAL WEIGHT kg/km |
| 1 | 25 | 400 |
| 1 | 35 | 450 |
| 1 | 50 | 600 |
| 1 | 70 | 750 |
| 1 | 95 | 1000 |
| 1 | 120 | 1300 |
| 1 | 150 | 1400 |
| 1 | 185 | 1800 |
| 1 | 240 | 2200 |
| 3 | 25 | 800 |
| 3 | 35 | 1000 |
| 3 | 50 | 1350 |
| 3 | 70 | 1850 |
| 3 | 95 | 2350 |
| 3 | 120 | 2950 |
| 3 | 150 | 3600 |
| 3 | 185 | 4450 |
| 3 | 240 | 5600 |
| 3 | 300 | 6850 |
| 3 | 400 | 8850 |
