Application:

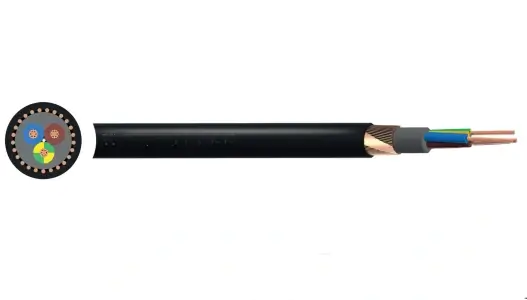

The N2XCY cable is suitable for installation in ground, indoors, cable trunking and outdoors. Used for power distribution in industrial application, including transformer stations and industrial plants, urban networks and household. it can be installed underground with additional protection.
Voltage Rating Uo/U: 0.6/1kV
Temperature Rating: Maximum Operating: +90ºC; Maximum Short-Circuit: +250°C
Conductor: Class 2 Stranded copper
Insulation: XLPE
Filler: PVC
Concentric Conductor: Copper
Tape: Protective Copper Tape
Outer Sheath: PVC
Core Identification:
2 core: Brown Blue
3 core: Green/Yellow Blue Brown
4 core: Green/Yellow Brown Black Grey
5 core: Green/Yellow Blue Brown Black Grey
7 core and above: Black Green/Yellow
Outer Sheath Colour: Black
STANDARDS:
IEC 60502-1, VDE 0276-603, IS 1516.1
Flame retardant according to IEC 60332-1
| NO.OF CORES | NOMINAL CROSS SECTIONAL AREA mm² | NOMINAL DIAMETER OF CONDUCTOR mm | NOMINAL WEIGHT kg/km |
| 2 | 1.5/1.5 | 1.37 | 186 |
| 2 | 2.5/2.5 | 1.76 | 233 |
| 2 | 4/4 | 2.21 | 298 |
| 2 | 185/95 | 16 | 6097 |
| 2 | 240/120 | 18.6 | 7923 |
| 2 | 300/150 | 21 | 9819 |
| 3 | 16/10 | 4.8 | 1044 |
| 3 | 25/16 | 5.9 | 1421 |
| 3 | 35/16 | 6.9 | 1763 |
| 3 | 70/35 | 9.7 | 3250 |
| 3 | 95/50 | 11.4 | 4337 |
| 3 | 120/70 | 13.1 | 5526 |
| 4 | 4/4 | 2.21 | 415 |
| 4 | 6/6 | 2.71 | 537 |
| 5 | 25/16 | 5.9 | 1993 |
| 5 | 35/16 | 6.9 | 2503 |
| 5 | 50/25 | 8.2 | 3453 |
| 7 | 1.5/1.5 | 1.37 | 332 |
| 7 | 2.5/2.5 | 1.76 | 432 |
| 8 | 1.5/1.5 | 1.37 | 388 |
| 8 | 2.5/2.5 | 1.76 | 507 |
| 10 | 1.5/1.5 | 1.37 | 470 |
| 10 | 2.5/2.5 | 1.76 | 616 |
| 12 | 1.5/1.5 | 1.37 | 507 |
| 12 | 2.5/2.5 | 1.76 | 671 |
| 14 | 1.5/1.5 | 1.37 | 507 |
| 16 | 1.5/1.5 | 1.37 | 612 |
| 19 | 1.5/1.5 | 1.37 | 679 |
| 21 | 1.5/1.5 | 1.37 | 745 |
| 24 | 1.5/1.5 | 1.37 | 835 |
