APPLICATION
The N2XFGbY cable is suitable for installation in the ground, indoors, cable trunking and outdoors if increased mechanical protection is required where high-pulling stresses may occur during installation or operation offering.
CHARACTERISTICS
Voltage Rating Uo/U: 0.6/1kV
Temperature Rating:
Maximum Operating: +90ºC
Maximum Short-Circuit: +250°C
Minimum Bending Radius: 12 x overall diameter

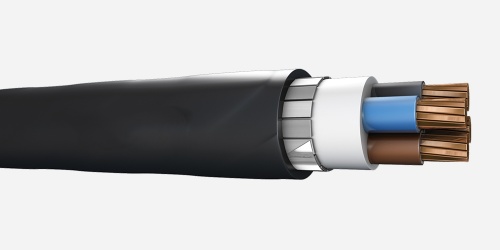

CONSTRUCTION
Conductor: Class 2 Stranded copper
Insulation: XLPE
Filler: PVC
Armour 1: SWA (Galvanised flat steel wire)
Armour 2: Galvanised steel tape
Outer Sheath: PVC
STANDARDS
IEC 60502-1, VDE 0276-603
Flame retardant according to IEC 60332-1
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA | NOMINAL DIAMETER OF CONDUCTOR | NOMINAL THICKNESS OF INSULATION | NOMINAL THICKNESS OF OUTER SHEATH | NOMINAL OVERALL DIAMETER | NOMINAL WEIGHT |
| mm² | mm | mm | mm | mm | kg/km | |
| 3 | 10 | 3.9 | 0.7 | 1.24 | 19 | 922 |
| 3 | 16 | 4.8 | 0.7 | 1.24 | 21 | 1186 |
| 3 | 25 | 5.9 | 0.9 | 1.24 | 24 | 1655 |
| 3 | 35 | 6.9 | 0.9 | 1.32 | 27 | 2100 |
| 3 | 50 | 8.2 | 1 | 1.4 | 31 | 2724 |
| 3 | 70 | 9.7 | 1.1 | 1.48 | 35 | 3608 |
| 3 | 95 | 11.4 | 1.1 | 1.64 | 39 | 4637 |
| 3 | 120 | 13.1 | 1.2 | 1.72 | 44 | 5701 |
| 3 | 150 | 14.2 | 1.4 | 1.88 | 47 | 6779 |
| 3 | 185 | 15.8 | 1.6 | 2.04 | 53 | 8437 |
| 3 | 240 | 18.6 | 1.7 | 2.2 | 60 | 10889 |
| 3 | 45946 | 4.8 | 0.7 | 1.24 | 23 | 1372 |
| 3 | 25/16 | 5.9 | 0.9 | 1.24 | 26 | 1890 |
| 3 | 35/16 | 6.9 | 0.9 | 1.32 | 28 | 2286 |
| 3 | 50/25 | 8.2 | 1 | 1.4 | 32 | 3017 |
| 3 | 70/35 | 9.7 | 1.1 | 1.56 | 37 | 3990 |
| 3 | 95/50 | 11.4 | 1.1 | 1.64 | 41 | 5160 |
| 3 | 120/70 | 13.1 | 1.2 | 1.8 | 46 | 6428 |
| 3 | 150/70 | 14.2 | 1.4 | 1.88 | 49 | 7525 |
| 3 | 185/95 | 15.8 | 1.6 | 2.04 | 55 | 9429 |
| 3 | 240/120 | 18.6 | 1.7 | 2.2 | 62 | 11956 |
| 4 | 10 | 3.9 | 0.7 | 1.24 | 20 | 1071 |
| 4 | 16 | 4.8 | 0.7 | 1.24 | 23 | 1400 |
| 4 | 25 | 5.9 | 0.9 | 1.32 | 27 | 1985 |
| 4 | 35 | 6.9 | 0.9 | 1.4 | 30 | 2530 |
| 4 | 50 | 8.2 | 1 | 1.48 | 34 | 3299 |
| 4 | 70 | 9.7 | 1.1 | 1.56 | 38 | 4398 |
| 4 | 95 | 11.4 | 1.1 | 1.72 | 43 | 5693 |
| 4 | 120 | 13.1 | 1.2 | 1.88 | 48 | 7041 |
| 4 | 150 | 14.2 | 1.4 | 1.96 | 52 | 8495 |
| 4 | 185 | 15.8 | 1.6 | 2.12 | 58 | 10564 |
| 4 | 240 | 18.6 | 1.7 | 2.36 | 66 | 13684 |
| 4 | 300 | 21.5 | 1.9 | 3.06 | 78 | 17628 |
| 5 | 10 | 3.9 | 0.7 | 1.24 | 23 | 1342 |
| 5 | 16 | 4.8 | 0.7 | 1.24 | 24 | 1715 |
| 5 | 25 | 5.9 | 0.9 | 1.32 | 30 | 2536 |
| 5 | 35 | 6.9 | 0.9 | 1.4 | 33 | 3209 |
| 5 | 50 | 8.2 | 1 | 1.48 | 37 | 4192 |
