APPLICATION
1. Indoor applications where fire safety is a priority (hotels, schools, high-rise buildings, hospitals, data centers, airports, offices etc.)
2. Systems that require 180 minutes of circuit integrity during fire conditions:
– Warning Systems (fire alarms, smoke detection/alarm devices)
– Smoke Ventilation Systems (tunnel fans)
– Emergency Exits (emergency lighting fixtures)
– Fire Intervention Systems (water pumps, automatic doors)
– Uninterruptible Energy Systems (escalators, elevators in subways)

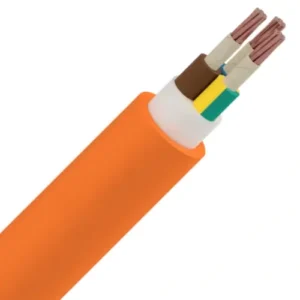

N2XH FE 180 Cables
Description: Fire-resistant, multi-core, single or multi-wire copper conductor power cables, halogen-free and fire-safe. Thanks to their low smoke density, non-flame propagating properties and no corrosive gas emissions for protecting life and property in case of fire. They are ideal for general power supply and distribution in indoor applications. They maintain circuit integrity for 180 minutes during a fire (FE 180)
Voltage Rating Uo/U: 0,6/1 kV
Conductor: copper
Fire proof: Mica tape
Insulation: XLPE
Filler: LSZH (Low Smoke Zero Halogen)
Outer sheath:LSZH (Low Smoke Zero Halogen)

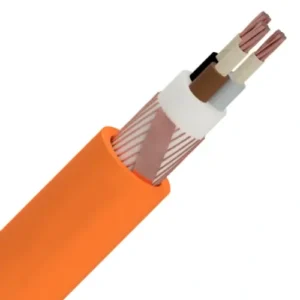

N2XCH FE 180 Screened Cable
Description: Fire-resistant, single or multi-core, single or multi-wire copper conductor power cables with concentric copper screen/conductor, halogen-free and fire-safe. Thanks to their low smoke density, non-flame propagating properties and no corrosive gas emissions for protecting life and property in case of fire. They are ideal for general power supply and distribution in indoor applications. Their concentric copper screen/conductor makes them especially suitable for environments requiring electrical protection. They maintain circuit integrity for 180 minutes during a fire (FE 180).
Voltage: 0,6/1 kV
Conductor: copper
Fire Barrier: mica tape
Insulation: XLPE
Filler: LSZH
Concentric screen: Copper wire + copper tape
Outher sheath: LSZH
| N2XH FE 180 | ||
| cores | Cross section [mm²] | Outer Diameter [mm] |
| 2 | 1.5 | 11 |
| 2 | 2.5 | 12 |
| 2 | 4 | 13 |
| 2 | 6 | 14 |
| 2 | 10 | 16 |
| 2 | 16 | 18 |
| 3 | 4 | 14 |
| 3 | 6 | 15 |
| 3 | 10 | 17 |
| 3 | 16 | 18 |
| 4 | 70 | 35 |
| 4 | 95 | 38 |
| 4 | 95 | 39 |
| 4 | 120 | 43 |
| 5 | 1.5 | 13 |
| 5 | 2.5 | 15 |
| 5 | 4 | 16 |
| 5 | 6 | 17 |
| 7 | 1.5 | 14 |
| 7 | 2.5 | 16 |
| 10 | 1.5 | 19 |
| 10 | 2.5 | 20 |
| For more sizes, please contact us directly: sales@huadongcablegroup.com | ||
| N2XCH FE 180 | ||
| cores | Cross section [mm²] | Outer Diameter [mm] |
| 3 | 1.5 | 13 |
| 3 | 2.5 | 14 |
| 3 | 4 | 15 |
| 3 | 6 | 17 |
| 3 | 10 | 18 |
| 3 | 16 | 20 |
| 3 | 25 | 24 |
| 3 | 35 | 26 |
| 3 | 50 | 30 |
| 3 | 70 | 34 |
| 4 | 1.5 | 14 |
| 4 | 2.5 | 15 |
| 4 | 4 | 17 |
| 4 | 6 | 18 |
| 4 | 10 | 20 |
| 4 | 16 | 23 |
| 4 | 25 | 26 |
| 4 | 35 | 29 |
| 4 | 50 | 33 |
| 4 | 70 | 38 |
