N2XS2Y Medium Voltage Power Cables For Power Distribution Networks

Application

Medium voltage power cables for distribution networks and generation units, suitable for external installation including direct buried and in buried cable ducts. UV Resistant. Robust MDPE / HDPE cable with optional additional waterblocking measures for fixed external installations in cable ducts or in the ground.

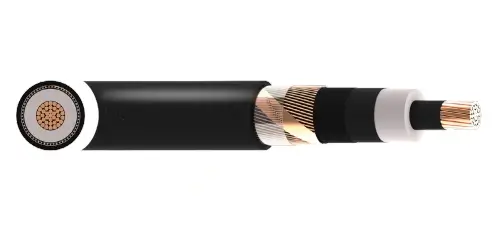

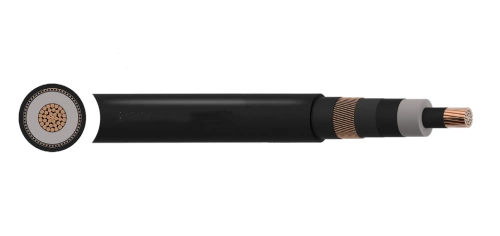

N2XS2Y 6/10 (12)kV, 12/20 (24)kV, 18/30 (36)kV Cable

Voltage Rating Uo/U (Um): 6/10 (12)kV, 12/20 (24)kV, 18/30 (36)kV
Conductor: Class 2 Stranded Copper
Conductor Screen: Semi-conductive material
Insulation: XLPE
Insulation Screen: Semi-conductive material (bonded)
Screen: Copper wires and copper tape
Outer Sheath: MDPE (Medium Density Polyethylene)
STANDARDS: IEC 60502-2, IEC 60228

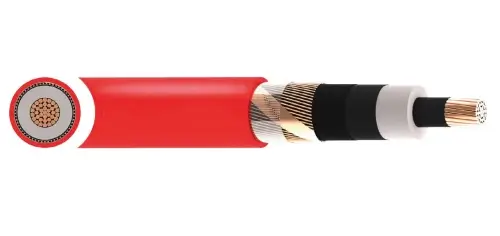

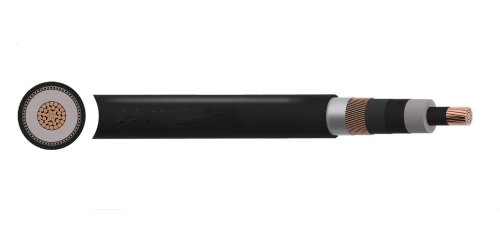

N2XS2Y XLPE MDPE 8.7/15 (17.5) kV Cable

Voltage Rating Uo/U (Um): 8.7/15 (17.5)kV
Conductor: Class 2 Stranded Copper
Conductor Screen: Semi-conductive material (Bonded type)
Insulation: XLPE
Insulation Screen: Semi-conductive material (Strippabe type)
Screen: Copper wires with Open Helix Copper Tape Screen
Outer Sheath: MDPE (Medium Density Polyethylene)
STANDARDS: IEC 60502-2, EN 60228

N2XS2Y XLPE HDPE 8.7/15 (17.5) kV Cable

Voltage Rating Uo/U: 8.7/15 (17.5) kV
Conductor: Class 2 stranded compacted copper conductor
Conductor Screen: Semi-conductive extruded XLPE
Insulation: XLPE
Insulation Screen: Semi-conductive extruded XLPE
Wrapping: Non swelling semi conductive tape
Metallic Screen: Copper Wires and Tape
Wrapping: Polyester tape
Sheath: HDPE (High Density Polyethylene)
STANDARDS: IEC 60502-2, EN 60228

N2XS2Y 6/10 (12)kV, 12/20 (24)kV, 18/30 (36)kV Cable Dimension

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA(mm²)		NOMINAL WEIGHT(kg/km)
NO. OF CORES	Conductor	Screen	NOMINAL WEIGHT(kg/km)
N2XS2Y 6/10 (12)kV Cable
1	50	16	850
1	70	16	1100
1	95	16	1300
1	120	16	1600
1	150	25	2000
1	185	25	2250
1	240	25	3000
1	300	25	3500
1	400	35	4500
1	500	35	5500
1	630	35	6750
N2XS2Y 12/20 (24)kV Cable
1	50	16	1000
1	70	16	1200
1	95	16	1500
1	120	16	1800
1	150	25	2250
1	185	25	2500
1	240	25	3250
1	300	25	3750
1	400	35	4750
1	500	35	5750
1	630	35	7000
N2XS2Y 18/30 (36)kV Cable
1	50	16	1200
1	70	16	1500
1	95	16	1800
1	120	16	2000
1	150	25	2500
1	185	25	2750
1	240	25	3500
1	300	25	4000
1	400	35	5000
1	500	35	6000
1	630	35	7500

Get a free quote by e-mail: sales@huadongcablegroup.com

N2XS2Y XLPE MDPE 8.7/15 (17.5) kV Cable Dimension

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA(mm²)	NOMINAL WEIGHT(kg/km)
1	50	904
1	70	1132
1	95	1389
1	120	1647
1	150	2027
1	185	2368
1	240	2943
1	300	3522
1	400	4445
1	500	5444
1	630	6869
1	800	8655

Get a free quote by e-mail: sales@huadongcablegroup.com

N2XS2Y XLPE HDPE 8.7/15 (17.5) kV Cable Dimension

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA(mm²)	NOMINAL WEIGHT(kg/km)
1	35	920
1	50	1060
1	70	1370
1	95	1740
1	120	2140
1	150	2430
1	185	2790
1	240	3350
1	300	3940
1	400	4810
1	500	5920
1	630	7290
1	800	9010
1	1000	10930
