Application
These are cables with low dielectric losses used in energy networks with sudden load changes. Laid in residential or industrial areas, underground in ducts.

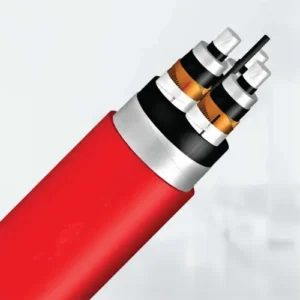

NA2XSEYBY Three-core Medium voltage PVC Power Cable
Voltage Rating Uo/U (Um): 6/10 kV, 12/20 (24) kV, 18/30(36) kV
Conductor: Aluminium
Conductor screen: Semi-conducting compound(XLPE)
Insulation: XLPE
Insulation screen: Semi-conducting compound(XLPE)
Metallic screen: Copper wires or tapes
Filler: PVC
Separation sheath: PVC
Armour: Double steel tapes
Outer sheath: PVC
N2XSEYBY Three-core Medium voltage PVC Power Cables
Voltage Rating Uo/U (Um): 6/10 kV, 12/20 (24) kV, 18/30(36) kV
Conductor: Copper
Conductor screen: Semi-conducting compound(XLPE)
Insulation: XLPE
Insulation screen: Semi-conducting compound(XLPE)
Metallic screen: Copper wires or tapes
Filler: PVC
Separation sheath: PVC
Armour: Double steel tapes
Outer sheath: PVC
| N2XSEYBY 5.8/10 kV (6/10 kV) or 6.35/11 kV | ||
| Nominal Cross Section | Overall Diameter(approx.) | Net Weight (approx.) |
| mm² | ||
| 3×35/16 | 51.5 | 3950 |
| 3×50/16 | 54.5 | 4650 |
| 3×70/16 | 58.5 | 5600 |
| 3×95/16 | 63.0 | 6800 |
| 3×120/16 | 67.0 | 7900 |
| 3×150/25 | 70.0 | 9100 |
| 3×185/25 | 74.5 | 10550 |
| 3×240/25 | 81.5 | 13000 |
| 3×300/25 | 88.0 | 15900 |
| 3×400/35 | 96.0 | 19800 |
| For detailed specifications of other voltages, please contact us directly via email. Our manager will send you a quote. | ||
