Application
Medium voltage cables for distribution networks; also for connection to generation units and plant and process connection. To be laid directly in ground, outdoors, indoors and in cable ducts e.g. in industrial and switchboard plants.
Voltage Rating Uo/U (Um): 6/10 (12)kV, 8.7/15 (17.5)kV, 12/20 (24)kV, 18/30 (36)kV

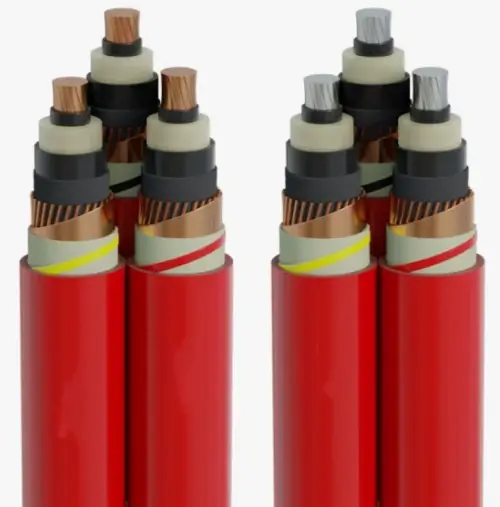

Conductor: Copper/Aluminium
Conductor Screen: Extruded Inner Semi Conductor (Bonded Type)
Insulation: XLPE
Insulation Screen: Extruded Outer Semi Conductor (Strippable Type)
Screen: Copper wires with Open Helix Copper Tape Screen
Outer Sheath: PVC (Polyvinyl Chloride)
STANDARDS: IEC 60228, IEC 60502-2
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA(mm²) | NOMINAL SCREEN CROSS SECTIONAL AREA(mm²) | NOMINAL WEIGHT(kg/km) |
| N2XSEY XLPE PVC – 6/10 (12)kV Cable | |||
| 3 | 50 | 16 | 2752 |
| 3 | 70 | 16 | 3513 |
| 3 | 95 | 16 | 4399 |
| 3 | 120 | 16 | 5241 |
| 3 | 150 | 25 | 6300 |
| 3 | 185 | 25 | 7440 |
| 3 | 240 | 25 | 9359 |
| 3 | 300 | 25 | 11267 |
| 3 | 400 | 35 | 14127 |
| 3 | 500 | 35 | 17513 |
| N2XSEY XLPE PVC – 8.7/15 (17.5)kV Cable | |||
| 3 | 50 | 16 | 3092 |
| 3 | 70 | 16 | 3882 |
| 3 | 95 | 16 | 4764 |
| 3 | 120 | 16 | 5637 |
| 3 | 150 | 25 | 6712 |
| 3 | 185 | 25 | 7877 |
| 3 | 240 | 25 | 9832 |
| 3 | 300 | 25 | 11814 |
| 3 | 400 | 35 | 14682 |
| 3 | 500 | 35 | 18123 |
| N2XSEY XLPE PVC – 12/20 (24)kV Cable | |||
| 3 | 50 | 16 | 3474 |
| 3 | 70 | 16 | 4288 |
| 3 | 95 | 16 | 5173 |
| 3 | 120 | 16 | 6028 |
| 3 | 150 | 25 | 7155 |
| 3 | 185 | 25 | 8352 |
| 3 | 240 | 25 | 10383 |
| 3 | 300 | 25 | 12356 |
| 3 | 400 | 35 | 15322 |
| 3 | 500 | 35 | 18760 |
| N2XSEY XLPE PVC – 18/30 (36)kV Cable | |||
| 3 | 50 | 16 | 4471 |
| 3 | 70 | 16 | 5332 |
| 3 | 95 | 16 | 6324 |
| 3 | 120 | 16 | 7265 |
| 3 | 150 | 25 | 8463 |
| 3 | 185 | 25 | 9720 |
| 3 | 240 | 25 | 11853 |
| 3 | 300 | 25 | 13919 |
| 3 | 400 | 35 | 16960 |
| 3 | 500 | 35 | 20577 |
