Application
Whether for power distribution networks in industrial plants, data centers for critical data transmission or outdoor installations, N2XSEYFGbY cables can handle it. It can withstand potential mechanical damage and is designed for installation in the open air, underground, underwater, cable ducts and power stations.
Voltage Rating Uo/U (Um): 6/10 (12)kV, 8.7/15 (17.5)kV, 12/20 (24)kV, 18/30 (36)kV

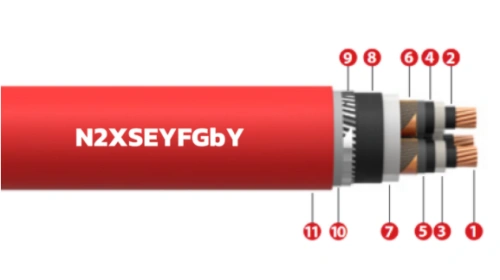

1. Class 2 stranded copper conductor
2. Inner semi-conductive layer
3. XLPE insulation
4. Outer semi-conductive layer
5. Semi- conductive tape
6. Copper wire screen
7. Filler
8. PVC Separation sheath
9. Galvanized flat steel wire
10. Galvanized steel tape
11. PVC outer sheath (red or black)
| Number of cores and nominal cross section(mm²) | Overall diameter appr. (mm) | Cable weight appr.(kg/km) |
| N2XSEYFGbY- 3.6/6 KV | ||
| 3×35 | 50 | 4355 |
| 3×50 | 53 | 5095 |
| 3×70 | 57.5 | 6045 |
| 3×95 | 61.5 | 7165 |
| 3×120 | 65 | 8105 |
| 3×150 | 68 | 9645 |
| 3×185 | 72 | 11055 |
| 3×240 | 77 | 13165 |
| 3×300 | 84.5 | 15700 |
| N2XSEYFGbY- 6/10 KV | ||
| 3×35 | 54.5 | 4860 |
| 3×50 | 58 | 5650 |
| 3×70 | 62.5 | 6670 |
| 3×95 | 66 | 7795 |
| 3×120 | 69.5 | 8765 |
| 3×150 | 73 | 10330 |
| 3×185 | 76.5 | 11775 |
| 3×240 | 81.5 | 13855 |
| 3×300 | 88 | 16295 |
| N2XSEYFGbY- 8.7/15 KV | ||
| 3×35 | 60.5 | 5570 |
| 3×50 | 63.5 | 6365 |
| 3×70 | 67.5 | 7395 |
| 3×95 | 71.5 | 8555 |
| 3×120 | 75 | 9600 |
| 3×150 | 78.5 | 11195 |
| 3×185 | 82 | 12680 |
| 3×240 | 87 | 14815 |
| 3×300 | 93.5 | 17320 |
| N2XSEYFGbY- 12/20 KV | ||
| 3×35 | 65.5 | 6215 |
| 3×50 | 68.5 | 7070 |
| 3×70 | 73 | 8145 |
| 3×95 | 76.5 | 9310 |
| 3×120 | 80 | 10385 |
| 3×150 | 83.5 | 12050 |
| 3×185 | 87 | 13525 |
| 3×240 | 92 | 15700 |
| 3×300 | 98.5 | 18220 |
| For other voltages and specifications, please email us directly and our manager will contact you. | ||
