N2XS(F)2Y Medium Voltage Power Cables For Power Distribution Networks

Application

Medium voltage power cables for distribution networks and generation units, suitable for external installation including direct buried and in buried cable ducts. UV Resistant. Robust MDPE / HDPE cable with optional additional waterblocking measures for fixed external installations in cable ducts or in the ground.

N2XS(F)2Y 6/10 (12)kV, 12/20 (24)kV, 18/30 (36)kV Cable

Voltage Rating Uo/U (Um): 6/10 (12)kV, 12/20 (24)kV, 18/30 (36)kV
Conductor: Class 2 Stranded Copper
Conductor Screen: Semi-conductive material
Insulation: XLPE
Insulation Screen: Semi-conductive material (bonded)
Longitudinal Waterblocking: Semi-conductive swellable tape
Screen: Copper wires and copper tape
Longitudinal Waterblocking: Swellable Tapes
Outer Sheath: MDPE (Medium Density Polyethylene)
STANDARDS: IEC 60502-2, IEC 60228

N2XS(F)2Y XLPE MDPE 8.7/15 (17.5)kV Cable

Voltage Rating Uo/U: 8.7/15 (17.5) kV
Conductor: Class 2 stranded compacted copper
Conductor Screen: Semi-conductive material (Bonded type)
Insulation: XLPE
Insulation Screen: Semi-conductive material (Strippable type)
Longitudinal Waterblock: Semi-conductive water swelling tape
Metallic Screen: Copper wires with Open Helix Copper Tape Screen
Longitudinal Waterblock: Non-conductive water swelling tape
Sheath: MOPE (Medium Density Polyethylene)

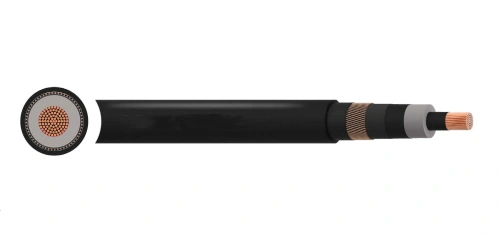

N2XS(F)2Y XLPE HDPE 8.7/15 (17.5) kV Cable

Voltage Rating Uo/U: 8.7/15 (17.5) kV
Conductor: Class 2 stranded compacted copper
Conductor Screen: Semi-conductive extruded XLPE
Insulation: XLPE
Insulation Screen: Semi-conductive extruded XLPE
Longitudinal Waterblock: Semi-conductive water swelling tape
Metallic Screen: Copper Wires and Tape
Longitudinal Waterblock: Non-conductive water swelling tape
Sheath: HOPE (High Density Polyethylene)
STANDARDS: IEC 60502-2, EN 60228

N2XS(F)2Y 6/10 (12)kV, 12/20 (24)kV, 18/30 (36)kV Cable Dimension

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA(mm²)		NOMINAL WEIGHT(kg/km)
NO. OF CORES	Conductor	Screen	NOMINAL WEIGHT(kg/km)
N2XS(F)2Y 6/10 (12)kV Cable
1	50	16	850
1	70	16	1100
1	95	16	1300
1	120	16	1600
1	150	25	2000
1	185	25	2250
1	240	25	3000
1	300	25	3500
1	400	35	4500
1	500	35	5500
1	630	35	6750
N2XS(F)2Y 12/20 (24)kV Cable
1	50	16	1000
1	70	16	1200
1	95	16	1500
1	120	16	1800
1	150	25	2250
1	185	25	2500
1	240	25	3250
1	300	25	3750
1	400	35	4750
1	500	35	5750
1	630	35	7000
N2XS(F)2Y 18/30 (36)kV Cable
1	50	16	1200
1	70	16	1500
1	95	16	1800
1	120	16	2000
1	150	25	2500
1	185	25	2750
1	240	25	3500
1	300	25	4000
1	400	35	5000
1	500	35	6000
1	630	35	7500

Get a free quote by e-mail: sales@huadongcablegroup.com

N2XS(F)2Y XLPE MDPE 8.7/15 (17.5)kV Cable Dimension

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA(mm²)	NOMINAL WEIGHT(kg/km)
1	50	939
1	70	1171
1	95	1429
1	120	1689
1	150	2072
1	185	2415
1	240	2993
1	300	3575
1	400	4502
1	500	5505
1	630	6936
1	800	8728

Get a free quote by e-mail: sales@huadongcablegroup.com

N2XS(F)2Y XLPE HDPE 8.7/15 (17.5) kV Cable Dimension

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA(mm²)	NOMINAL WEIGHT(kg/km)
1	35	860
1	50	1000
1	70	1300
1	95	1670
1	120	2070
1	150	2350
1	185	2710
1	240	3260
1	300	3850
1	400	4720
1	500	5810
1	630	7160
1	800	8860
1	1000	10760
