N2XS(FL)2Y Medium Voltage Power Cables For Power Distribution Networks

Application

Medium voltage power cables for distribution networks and generation units, suitable for external installation including direct buried and in buried cable ducts. UV Resistant. Robust MDPE / HDPE cable with optional additional waterblocking measures for fixed external installations in cable ducts or in the ground.

N2XS(FL)2Y 6/10 (12)kV, 12/20 (24)kV, 18/30 (36)kV Cable

Voltage Rating Uo/U (Um): 6/10 (12)kV, 12/20 (24)kV, 18/30 (36)kV
Conductor: Class 2 Stranded Copper
Conductor Screen: Semi-conductive material
Insulation: XLPE
Insulation Screen: Semi-conductive material (bonded)
Longitudinal Waterblocking: Semi-conductive swellable tape
Screen: Copper wires and copper tape
Longitudinal Waterblocking: Swellable Tapes
Radial Waterblocking: Al/PET (Aluminium/Polyester) Tape bonded to sheath
Outer Sheath: MDPE (Medium Density Polyethylene)
STANDARDS: IEC 60502-2, IEC 60228

N2XS(FL)2Y MDPE Cable 8.7/15 (17.S)kV

Voltage Rating Uo/U: 8.7/15 (17.5)kV
Conductor: Class 2 Stranded Circular Compacted Copper
Conductor Screen: Extruded Inner Semi Conductor (Bonded Type)
Insulation: XLPE 90°C
Insulation Screen: Extruded Outer Semi Conductor (Strippable Type)
Semi Conductive Water Blocking Tape
Screen: Copper Wires and Open Helix Copper Tape
Non-Conductive Water Blocking Tape
Tape: Aluminium Tape
Outer Sheath: MDPE (Medium Density Polyethylene)
STANDARDS: IEC 60502-2, IEC 60228

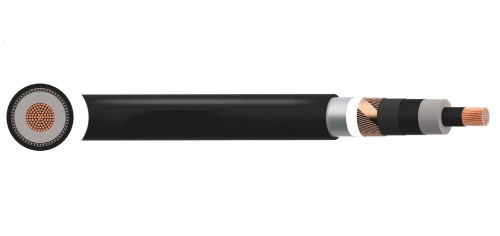

N2XS(FL)2Y HDPE Cable 8.7/15 (17.5)kV

Voltage Rating Uo/U: 8.7/15 (17.5) kV
Conductor: Class 2 stranded compacted copper
Conductor Screen: Semi-conductive extruded XLPE
Insulation: XLPE
Insulation Screen: Semi-conductive extruded XLPE
Longitudinal Waterblock: Semi-conductive water swelling tape
Metallic Screen: Copper Wires and Tape
Longitudinal Waterblock: Non-conductive water swelling tape
Sheath: HOPE (High Density Polyethylene)
STANDARDS: IEC 60502-2, EN 60228

N2XS(FL)2Y 6/10 (12)kV, 12/20 (24)kV, 18/30 (36)kV Cable Dimension

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA(mm²)		NOMINAL WEIGHT(kg/km)
NO. OF CORES	Conductor	Screen	NOMINAL WEIGHT(kg/km)
N2XS(FL)2Y AD8 Cable 6/10 (12)kV
1	50	16	900
1	70	16	1100
1	95	16	1400
1	120	16	1700
1	150	25	\|2000
1	185	25	2500
1	240	25	\|3000
1	300	25	3500
1	400	35	4500
1	500	35	5500
1	630	35	7000
N2XS(FL)2Y AD8 Cable 12/20 (24)kV
1	50	16	1100
1	70	16	1300
1	95	16	1600
1	120	16	1900
1	150	25	2250
1	185	25	2750
1	240	25	3250
1	300	25	3750
1	400	35	4750
1	500	35	5750
1	630	35	7250
N2XS(FL)2Y AD8 Cable 18/30 (36)kV
1	50	16	1300
1	70	16	1500
1	95	16	1900
1	120	16	2250
1	150	25	2500
1	185	25	3000
1	240	25	3500
1	300	25	4250
1	400	35	5250
1	500	35	6250
1	630	35	7250

Get a free quote by e-mail: sales@huadongcablegroup.com

N2XS(FL)2Y MDPE Cable 8.7/15 (17.S)kV Dimension

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA(mm²)	NOMINAL WEIGHT(kg/km)
1	50	1008
1	70	1243
1	95	1505
1	120	1768
1	150	2155
1	185	2501
1	240	3086
1	300	3675
1	400	4609
1	500	5619
1	630	7060
1	800	8863

Get a free quote by e-mail: sales@huadongcablegroup.com

N2XS(FL)2Y HDPE Cable 8.7/15 (17.5)kV Dimension

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA(mm²)	NOMINAL WEIGHT(kg/km)
1	35	920
1	50	1060
1	70	1370
1	95	1740
1	120	2140
1	150	2420
1	185	2780
1	240	3340
1	300	3930
1	400	4800
1	500	5910
1	630	7270
1	800	8970
1	1000	10880
